| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 56B-27-11003 | FRONT DIFF.A W.D/L,FRONT | 1 | SN: 1053- |
|||
| ? | 56B-27-00010 | DIFFERENTIAL ASS'Y,FRONT | 1 | SN: 1001-1052 |
|||

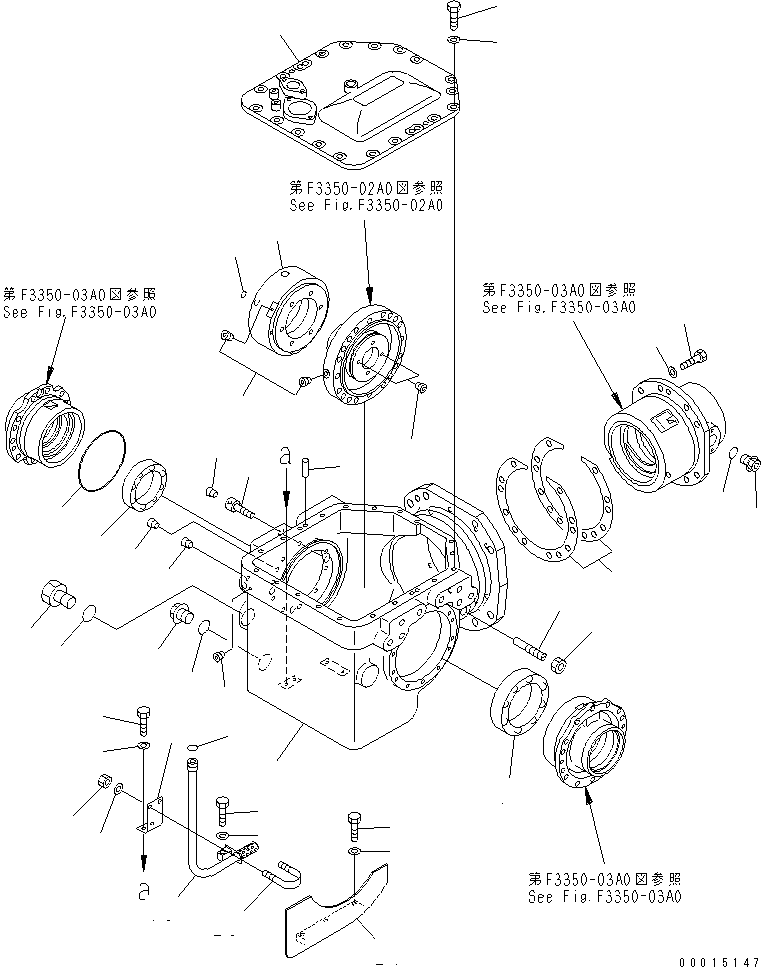

| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3350-01A0 TO F3350-03A0. | ||||||
| ? | 56B-27-13115 | • HOUSING,CASE | 1 | SN: .- |
|||
| ? | 56B-27-13114 | • HOUSING,CASE | 1 | SN: 1001-. |
|||
| ? | 56B-27-13165 | • COVER | 1 | SN: 1001- |
|||
| ? | 01643-31445 | • WASHER | 20 | SN: 1001- |
|||
| ? | 01010-61440 | • BOLT | 20 | SN: 1001- |
|||
| ? | 04020-01638 | • PIN,DOWEL | 2 | SN: 1001- |
|||
| ? | 567-22-71180 | • BEARING | 1 | SN: 1001- |
|||
| ? | 56B-22-12860 | • BEARING | 1 | SN: 1001- |
|||
| ? | 421-22-11180 | • BOLT | 1 | SN: 1001- |
|||
| ? | 01583-12414 | • NUT | 1 | SN: 1001- |
|||
| ? | 56B-22-11360 | • SHIM¤ 0.15MM | 3 | SN: 1001- |
|||
| ? | 56B-22-11370 | • SHIM¤ 0.2MM | 2 | SN: 1001- |
|||
| ? | 56B-22-11380 | • SHIM¤ 0.3MM | 2 | SN: 1001- |
|||
| ? | 56B-22-11390 | • SHIM¤ 0.8MM | 2 | SN: 1001- |
|||
| ? | 01010-61650 | • BOLT | 8 | SN: 1001- |
|||
| ? | 01643-31645 | • WASHER | 8 | SN: 1001- |
|||
| ? | 07041-13012 | • PLUG | 1 | SN: 1001- |
|||
| ? | 07002-13034 | • O-RING | 1 | SN: 1001- |
|||
| ? | 56B-27-19674 | • TUBE | 1 | SN: 1001- |
|||
| ? | 07000-13032 | • O-RING | 1 | SN: 1001- |
|||
| ? | 56B-27-19681 | • PLATE | 1 | SN: 1001- |
|||
| ? | 01597-01009 | • NUT | 2 | SN: 1001- |
|||
| ? | 01643-31032 | • WASHER | 2 | SN: 1001- |
|||
| ? | 07283-32738 | • CLIP | 1 | SN: 1001- |
|||
| ? | 01010-61020 | • BOLT | 2 | SN: 1001- |
|||
| ? | 01010-61040 | • BOLT | 1 | SN: 1001- |
|||
| ? | 01643-31032 | • WASHER | 3 | SN: 1001- |
|||
| ? | 56B-27-19611 | • COVER | 1 | SN: 1001- |
|||
| ? | 01010-61040 | • BOLT | 3 | SN: 1001- |
|||
| ? | 01643-51032 | • WASHER | 3 | SN: 1001- |
|||
| ? | 07043-70108 | • PLUG | 2 | SN: 1001- |
|||
| ? | 07043-70211 | • PLUG | 1 | SN: 1001- |
|||
| ? | 56B-27-11710 | • RETAINER | 1 | SN: 1001- |
|||
| ? | 07000-12011 | • O-RING | 1 | SN: 1001- |
|||
| ? | 07000-15170 | • O-RING | 1 | SN: 1001- |
|||
| ? | 07043-70108 | • PLUG | 2 | SN: 1001- |
|||
| ? | 07043-70415 | • PLUG | 3 | SN: 1001- |
|||
| ? | 01252-61030 | • BOLT | 3 | SN: 1001- |
|||
| ? | 07044-13620 | • PLUG | 1 | SN: 1001- |
|||
| ? | 07002-13634 | • O-RING | 1 | SN: 1001- |
|||
| ? | 07044-12412 | • PLUG | 1 | SN: 1001- |
|||
| ? | 07002-12434 | • O-RING | 1 | SN: 1001- |
|||
| ? | 56B-22-11570 | • PLUG | 2 | SN: 1001- |
