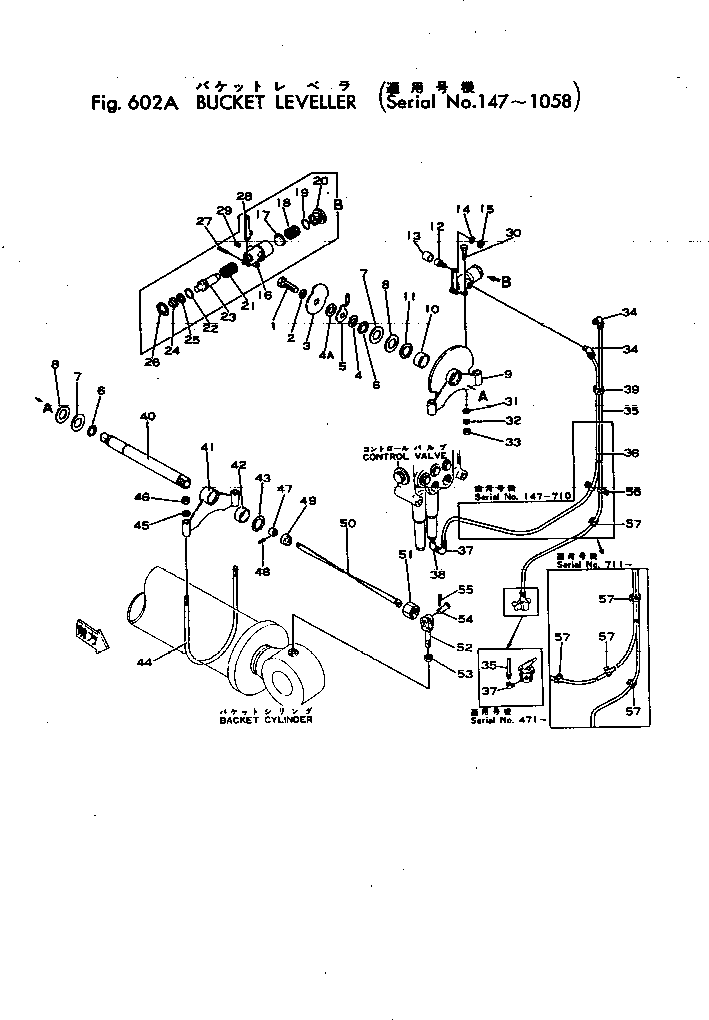

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 380-S11012-0 | SCREW | 1 | SN: 147-1058 |
|||
| ? | 380-WL110-00 | WASHER | 1 | SN: 147-1058 |
|||
| ? | 380-206328-1 | CAM | 1 | SN: 147-1058 |
|||
| ? | 380-158282-1 | WASHER | 1 | SN: 147-1058 |
|||
| ? | 380-WF110-00 | WASHER | 1 | SN: 147-1058 |
|||
| ? | 380-206329-1 | INDICATOR | 1 | SN: 147-1058 |
|||
| ? | 380-206320-1 | RING | 2 | SN: 147-1058 |
|||
| ? | 380-206330-1 | WASHER | 2 | SN: 147-1058 |
|||
| ? | 380-206331-1 | WASHER | 2 | SN: 147-1058 |
|||
| ? | 380-218211-1 | BRACKET | 1 | SN: 147-1058 |
|||
| ? | 380-206319-1 | • BUSHING | 1 | SN: 147-1058 |
|||
| ? | 380-206321-1 | • RING | 1 | SN: 147-1058 |
|||
| ? | 380-210917-1 | FOLLOWER | 1 | SN: 147-1058 |
|||
| ? | ☆ | • BOLT | 1 | SN: 147-1058 |
|||
| ? | 380-210918-1 | • BUSHING | 1 | SN: 147-1058 |
|||
| ? | 380-WL14-000 | WASHER | 1 | SN: 147-1058 |
|||
| ? | 380-H14-0000 | NUT | 1 | SN: 147-1058 |
|||
| ? | 380-186634-1 | VALVE ASS'Y | 1 | SN: 147-1058 |
|||
| ? | ☆ | • BODY | 1 | SN: 147-@ |
|||
| ? | 380-188564-1 | • VALVE | 1 | SN: 147-@ |
|||
| ? | 380-188565-1 | • SPRING | 1 | SN: 147-@ |
|||
| ? | 380-OR417-00 | • O-RING | 1 | SN: 147-@ |
|||
| ? | ☆ | • CAP | 1 | SN: 147-@ |
|||
| ? | 380-188570-1 | • SPRING | 1 | SN: 147-@ |
|||
| ? | 380-OR411-00 | • O-RING | 1 | SN: 147-@ |
|||
| ? | ☆ | • PLUNGER | 1 | SN: 147-@ |
|||
| ? | 380-188572-1 | • SEAL ASS'Y | 1 | SN: 147-@ |
|||
| ? | 380-188573-1 | • • SEAL | 1 | SN: 147-@ |
|||
| ? | 380-188574-1 | • • WASHER | 1 | SN: 147-@ |
|||
| ? | 380-188575-1 | • RING | 1 | SN: 147-@ |
|||
| ? | ☆ | • PIN | 1 | SN: 147-@ |
|||
| ? | ☆ | • LEVER | 1 | SN: 147-@ |
|||
| ? | 380-P44-0000 | • PLUG | 1 | SN: 147-@ |
|||
| ? | 380-S147-000 | BOLT | 2 | SN: 147-1058 |
|||
| ? | 380-WL14-000 | WASHER | 2 | SN: 147-1058 |
|||
| ? | 380-WF14-000 | WASHER | 2 | SN: 147-1058 |
|||
| ? | 380-H14-0000 | NUT | 2 | SN: 147-1058 |
|||
| ? | 380-886296-1 | ELBOW | 2 | SN: 147-1058 |
|||
| ? | 380-888939-1 | HOSE | 1 | SN: 471-1058 |
|||
| ? | 380-887343-1 | HOSE | 1 | SN: 147-470 |
|||
| ? | 380-887344-1 | HOSE | 1 | SN: 147-1058 |
|||
| ? | 380-886296-1 | ELBOW | 2 | SN: 471-1058 |
|||
| ? | 380-886296-1 | ELBOW | 1 | SN: 147-470 |
|||
| ? | 380-117383-1 | ELBOW | 1 | SN: 147-1058 |
|||
| ? | 380-139017-1 | STRAP | 2 | SN: 147-1058 |
|||
| ? | 380-887378-1 | TUBE | 1 | SN: 147-1058 |
|||
| ? | 380-218213-1 | BRACKET | 1 | SN: 147-1058 |
|||
| ? | 380-206319-1 | • BUSHING | 1 | SN: 147-1058 |
|||
| ? | 380-206321-1 | • RING | 1 | SN: 147-1058 |
|||
| ? | 380-218217-1 | U-BOLT | 2 | SN: 147-1058 |
|||
| ? | 380-WF38-000 | WASHER | 4 | SN: 147-1058 |
|||
| ? | 380-E18-0000 | NUT | 4 | SN: 147-1058 |
|||
| ? | 380-887233-3 | PLUNGER | 1 | SN: 147-1058 |
|||
| ? | 380-886506-1 | PIN | 1 | SN: 147-1058 |
|||
| ? | 380-206327-2 | WIPER | 1 | SN: 147-1058 |
|||
| ? | 380-218218-1 | SLIDE | 1 | SN: 147-1058 |
|||
| ? | 380-888432-1 | NUT | 1 | SN: 147-1058 |
|||
| ? | 380-206325-1 | YOKE | 1 | SN: 147-1058 |
|||
| ? | 380-H310-000 | NUT | 1 | SN: 147-1058 |
|||
| ? | 380-102279-1 | PIN | 1 | SN: 147-1058 |
|||
| ? | 380-CP58-000 | • PIN | 1 | SN: 147-1058 |
|||
| ? | 380-129668-1 | CLIP | 4 | SN: 147-710 |
|||
| ? | 380-888579-1 | STRAP | 8 | SN: 711-1058 |
|||
| ? | 380-888579-1 | STRAP | 5 | SN: 147-710 |
