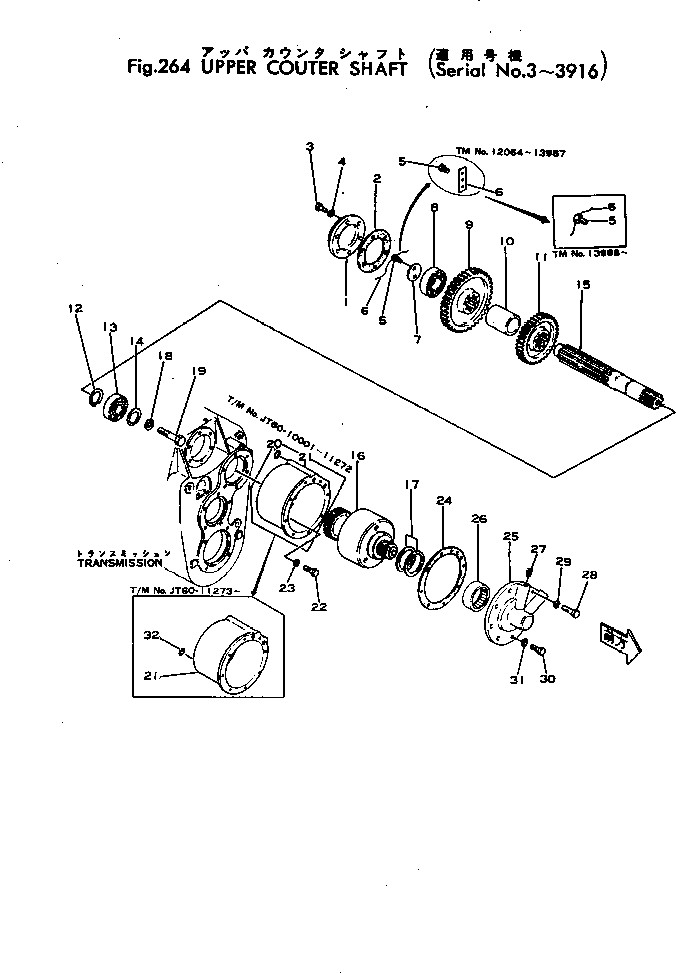

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (380-173822-2) | TRANSMISSION ASS'Y | 1 | SN: 471-3916 |
|||
| ? | (380-886505-1) | TRANSMISSION ASS'Y | 1 | SN: 3-470 |
|||
| ? | 380-116610-1 | • CAP | 1 | SN: 3-3916 |
|||
| ? | 380-116611-1 | • GASKET (K4) | 1 | SN: 3-3916 |
|||
| ? | 380-S268-000 | • BOLT | 6 | SN: 3-3916 |
|||
| ? | 380-WL16-000 | • WASHER | 6 | SN: 3-3916 |
|||
| ? | 380-S266D8-0 | • BOLT | 2 | SN: (13988)-3916 |
|||
| ? | 380-S266D-00 | • BOLT | 2 | SN: 3-(13987) |
|||
| ? | 380-LW187-00 | • WIRE | 1 | SN: (13988)-3916 |
|||
| ? | 381-898671-1 | • WASHER | 1 | SN: (12064)-(13987) |
|||
| ? | □380-LW187-00 | • WIRE | 1 | SN: 3-(12063) |
|||
| ? | 380-116623-1 | • WASHER | 1 | SN: 3-3916 |
|||
| ? | 380-116598-1 | • BEARING | 1 | SN: 3-3916 |
|||
| ? | 380-125563-1 | • GEAR ? 55 TEETH | 1 | SN: 3-3916 |
|||
| ? | 380-125564-1 | • SPACER | 1 | SN: 3-3916 |
|||
| ? | 380-159658-1 | • GEAR ? 37 TEETH | 1 | SN: 3-3916 |
|||
| ? | 380-125566-1 | • RING | 1 | SN: 3-3916 |
|||
| ? | 380-118046-1 | • BEARING | 1 | SN: 3-3916 |
|||
| ? | 380-125567-1 | • RING | 1 | SN: 3-3916 |
|||
| ? | 380-190919-1 | • SHAFT | 1 | SN: 3-3916 |
|||
| ? | (380-163402-3) | • CLUTCH ASS'Y,(SEE FIG.265) | 1 | SN: 3-3916 |
|||
| ? | 380-129509-1 | • RING | 2 | SN: 3-3916 |
|||
| ? | 380-189926-1 | • WASHER | 1 | SN: 3-3916 |
|||
| ? | 380-129508-2 | • BOLT | 1 | SN: 3-3916 |
|||
| ? | 380-OR49-000 | • O-RING (K6) | 4 | SN: (11273)-3916 |
|||
| ? | 380-OR49-000 | • O-RING (K6) | 5 | SN: (10001)-(11272) |
|||
| ? | 381-881932-1 | • HOUSING | 1 | SN: (11273)-3916 |
|||
| ? | ▩380-129510-1 | • HOUSING | 1 | SN: (10001)-(11272) |
|||
| ? | (381-881932-1{380-OR411-00)} | ||||||
| ? | 380-S2616-00 | • BOLT | 6 | SN: 3-3916 |
|||
| ? | 380-WL16-000 | • WASHER | 6 | SN: 3-3916 |
|||
| ? | 380-129513-1 | • GASKET (K4) | 1 | SN: 3-3916 |
|||
| ? | 380-156947-1 | • COVER ASS'Y | 1 | SN: 3-3916 |
|||
| ? | 380-157197-1 | • • BEARING | 1 | SN: 3-3916 |
|||
| ? | 380-139509-1 | • • PLUG | 2 | SN: 3-3916 |
|||
| ? | 380-S2610-00 | • BOLT | 7 | SN: 3-3916 |
|||
| ? | 380-WL16-000 | • WASHER | 7 | SN: 3-3916 |
|||
| ? | 380-S2618-00 | • BOLT | 1 | SN: 3-3916 |
|||
| ? | 380-WL16-000 | • WASHER | 1 | SN: 3-3916 |
|||
| ? | 380-OR411-00 | • O-RING (K6) | 1 | SN: (11273)-3916 |
