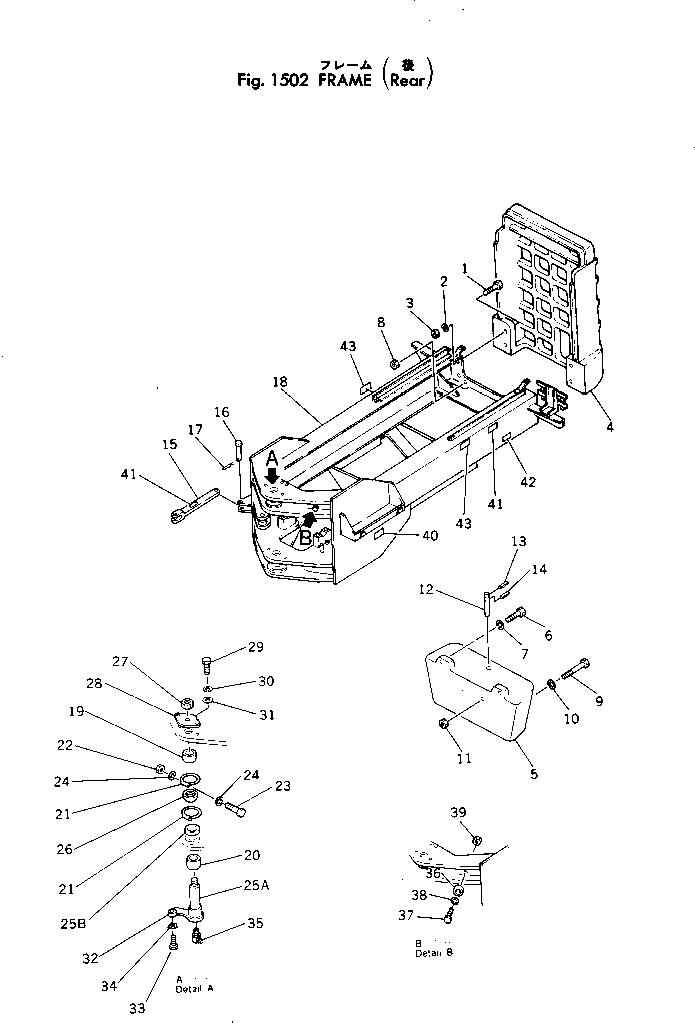

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 380-S11234-0 | BOLT | 4 | SN: 3- |
|||
| ? | 01643-01845 | WASHER | 4 | SN: 3- |
|||
| ? | 380-E112-000 | NUT | 4 | SN: 3- |
|||
| ? | 381-982231-3 | GRILLE | 1 | SN: 3081- |
|||
| ? | □381-982231-2 | GRILLE | 1 | SN: 2325-3080 |
|||
| ? | □381-982231-1 | GRILLE | 1 | SN: 1785-2324 |
|||
| ? | 381-975590-1 | WEIGHT,COUNTER | 1 | SN: 1399- |
|||
| ? | 380-S11246-0 | SCREW | 2 | SN: 129- |
|||
| ? | 380-890265-1 | WASHER | 2 | SN: 129- |
|||
| ? | 380-E112-000 | NUT | 2 | SN: 3- |
|||
| ? | 380-S11254-0 | SCREW | 2 | SN: 129- |
|||
| ? | 380-890265-1 | WASHER | 2 | SN: 129- |
|||
| ? | 380-E112-000 | NUT | 2 | SN: 3- |
|||
| ? | 381-897752-2 | PIN ASS'Y | 1 | SN: 1399- |
|||
| ? | 04025-01280 | • PIN | 1 | SN: .- |
|||
| ? | 04025-01280 | • PIN | 1 | SN: .- |
|||
| ? | 380-222060-1 | ROD | 1 | SN: 3- |
|||
| ? | 380-208258-1 | PIN | 2 | SN: 3- |
|||
| ? | 381-897849-1 | PIN | 2 | SN: .- |
|||
| ? | 385-10061151 | FRAME,REAR | 1 | SN: 3081- |
|||
| ? | 381-986190-2 | FRAME,REAR | 1 | SN: 2325-3080 |
|||
| ? | 381-879847-1 | • BUSHING | 2 | SN: 21- |
|||
| ? | 381-879848-1 | • BUSHING | 2 | SN: 21- |
|||
| ? | 380-221402-1 | RING | 4 | SN: 3- |
|||
| ? | 380-E14-0000 | • NUT | 4 | SN: 3- |
|||
| ? | 380-S1434-00 | • SCREW | 4 | SN: 3- |
|||
| ? | 380-216289-1 | • WASHER | 8 | SN: 3- |
|||
| ? | 385-10169671 | SHAFT ASS'Y | 2 | SN: .- |
|||
| ? | ▩381-898119-1 | SHAFT ASS'Y | 2 | SN: 45-. |
|||
| ? | (385-10169671(2){385-10169421(2))} | ||||||
| ? | 380-889848-1 | • SHAFT | 1 | SN: 45- |
|||
| ? | 385-10169441 | • BUSHING | 1 | SN: .- |
|||
| ? | 381-876434-1 | • BUSHING | 1 | SN: 3-. |
|||
| ? | 385-10169421 | BUSHING | 2 | SN: .- |
|||
| ? | ▩380-212330-1 | BUSHING | 2 | SN: 3-. |
|||
| ? | (385-10169421(2){385-10169671(2))} | ||||||
| ? | 380-216252-1 | NUT,UPPER | 1 | SN: 369- |
|||
| ? | 381-898774-1 | NUT,LOWER | 1 | SN: 369- |
|||
| ? | 380-212978-1 | PLATE | 2 | SN: 3- |
|||
| ? | 380-S11010-0 | BOLT | 4 | SN: 3- |
|||
| ? | 384-0131140 | WASHER | 4 | SN: .- |
|||
| ? | □380-WL110-00 | WASHER | 4 | SN: 3-. |
|||
| ? | 382-025556-1 | WASHER | 4 | SN: .- |
|||
| ? | □380-WF110-00 | WASHER | 4 | SN: 3-. |
|||
| ? | 380-220383-2 | CAM | 2 | SN: .- |
|||
| ? | □380-220383-1 | CAM | 2 | SN: 3-. |
|||
| ? | 380-S11210-0 | BOLT | 2 | SN: 3- |
|||
| ? | 380-124243-1 | WASHER | 2 | SN: 3- |
|||
| ? | 380-119692-1 | FITTING | 2 | SN: 1363- |
|||
| ? | 380-119692-1 | FITTING,(FOR LOWER SHAFT) | 1 | SN: .- |
|||
| ? | 380-216293-2 | BUMPER | 2 | SN: 141- |
|||
| ? | 380-S1814-00 | BOLT | 2 | SN: 141- |
|||
| ? | 382-025536-1 | WASHER | 2 | SN: .- |
|||
| ? | □380-WF38-000 | WASHER | 2 | SN: 141-. |
|||
| ? | 380-E18-0000 | NUT | 2 | SN: 141- |
|||
| ? | 381-987181-1 | PLATE ? CAUTION | 1 | SN: 2325- |
|||
| ? | 380-886302-3 | DECAL,TIRE PRESSURE | 1 | SN: 3- |
|||
| ? | 380-885258-1 | PLATE ? NAME,FUEL TANK | 1 | SN: 3- |
|||
| ? | 381-981852-1 | PLATE ? CAUTION | 2 | SN: 1785- |
|||
| ? | 380-889875-1 | ELBOW,(FOR UPPER SHAFT) | 1 | SN: .- |
|||
| ? | 380-888146-1 | NIPPLE | 1 | SN: .- |
|||
| ? | 380-118491-1 | FITTING | 1 | SN: .- |
|||
| ? | 385-10012321 | DECAL,LIFT HERE | 2 | SN: 3081- |
