| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

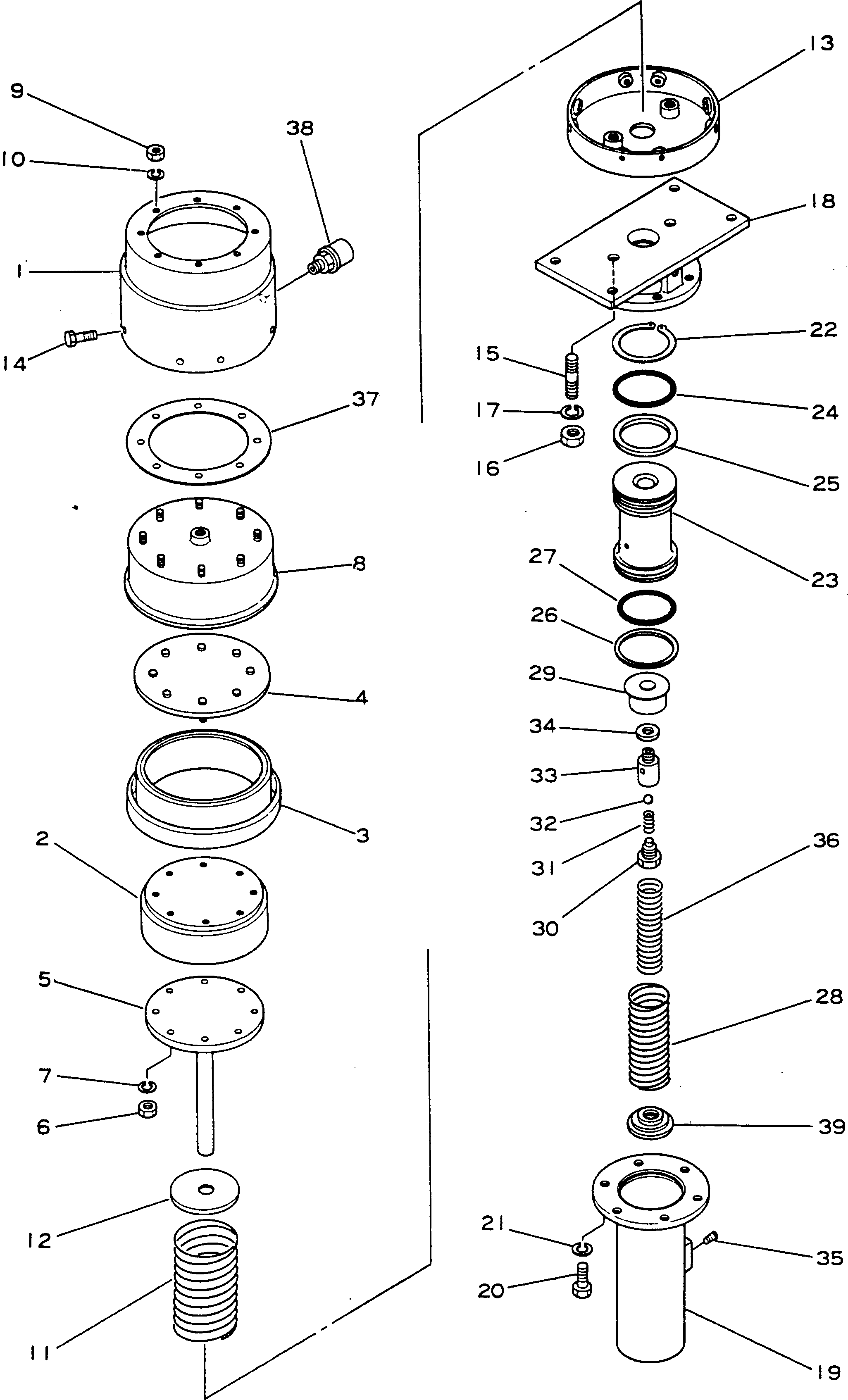

| ? | 566-35-11306 | BRAKE CHAMBER ASS'Y | 4 | SN: 1002- |
|||
| ? | 566-35-16511 | • BODY | 1 | SN: 1002- |
|||
| ? | 566-35-16570 | • GUIDE | 1 | SN: 1002- |
|||
| ? | 281-34-11112 | • DIAPHRAGM (KIT) | 1 | SN: 1002- |
|||
| ? | 566-35-16560 | • CLAMP | 1 | SN: 1002- |
|||
| ? | 566-35-17151 | • ROD | 1 | SN: 1002- |
|||
| ? | 566-35-16590 | • NUT | 8 | SN: 1002- |
|||
| ? | 566-35-16610 | • WASHER | 8 | SN: 1002- |
|||
| ? | 566-35-16530 | • CLAMP | 1 | SN: 1002- |
|||
| ? | 566-35-16540 | • NUT | 8 | SN: 1002- |
|||
| ? | 566-35-16550 | • WASHER | 8 | SN: 1002- |
|||
| ? | 566-35-16661 | • SPRING | 1 | SN: 1002- |
|||
| ? | 566-35-16651 | • GUIDE | 1 | SN: 1002- |
|||
| ? | 566-35-17242 | • COVER | 1 | SN: 1002- |
|||
| ? | 566-35-16680 | • BOLT AND WASHER | 8 | SN: 1002- |
|||
| ? | 566-35-17260 | • STUD | 2 | SN: 1002- |
|||
| ? | 566-35-16930 | • NUT | 2 | SN: 1002- |
|||
| ? | 566-35-16920 | • WASHER | 2 | SN: 1002- |
|||
| ? | 566-35-17342 | • FLANGE | 1 | SN: 1002- |
|||
| ? | 566-35-17291 | • CYLINDER | 1 | SN: 1002- |
|||
| ? | 566-35-17461 | • BOLT | 4 | SN: 1002- |
|||
| ? | 566-35-17471 | • WASHER | 4 | SN: 1002- |
|||
| ? | 566-35-17560 | • RING | 1 | SN: 1002- |
|||
| ? | 566-35-17312 | • PISTON | 1 | SN: 1002- |
|||
| ? | 566-35-17320 | • O-RING (KIT) | 1 | SN: 1002- |
|||
| ? | 566-35-17520 | • SEAL (KIT) | 1 | SN: 1002- |
|||
| ? | 566-35-17480 | • SEAL (KIT) | 1 | SN: 1002- |
|||
| ? | 566-35-17490 | • O-RING (KIT) | 1 | SN: 1002- |
|||
| ? | 566-35-17551 | • SPRING | 1 | SN: 1002- |
|||
| ? | 566-35-17541 | • SPACER | 1 | SN: 1002- |
|||
| ? | 566-35-17640 | • CAP | 1 | SN: 1002- |
|||
| ? | 566-35-17630 | • SPRING | 1 | SN: 1002- |
|||
| ? | 566-35-17620 | • BALL | 1 | SN: 1002- |
|||
| ? | 566-35-17610 | • CASE | 1 | SN: 1002- |
|||
| ? | 566-35-17650 | • GASKET | 1 | SN: 1002- |
|||
| ? | 566-35-17530 | • PLUG | 2 | SN: 1002- |
|||
| ? | 566-35-17580 | • SPRING | 1 | SN: 1002- |
|||
| ? | 566-35-17660 | • SEAL | 1 | SN: 1002- |
|||
| ? | 566-35-17670 | • BREATHER | 1 | SN: 1002- |
|||
| ? | 566-35-17590 | • GUIDE | 1 | SN: 1002- |
