| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

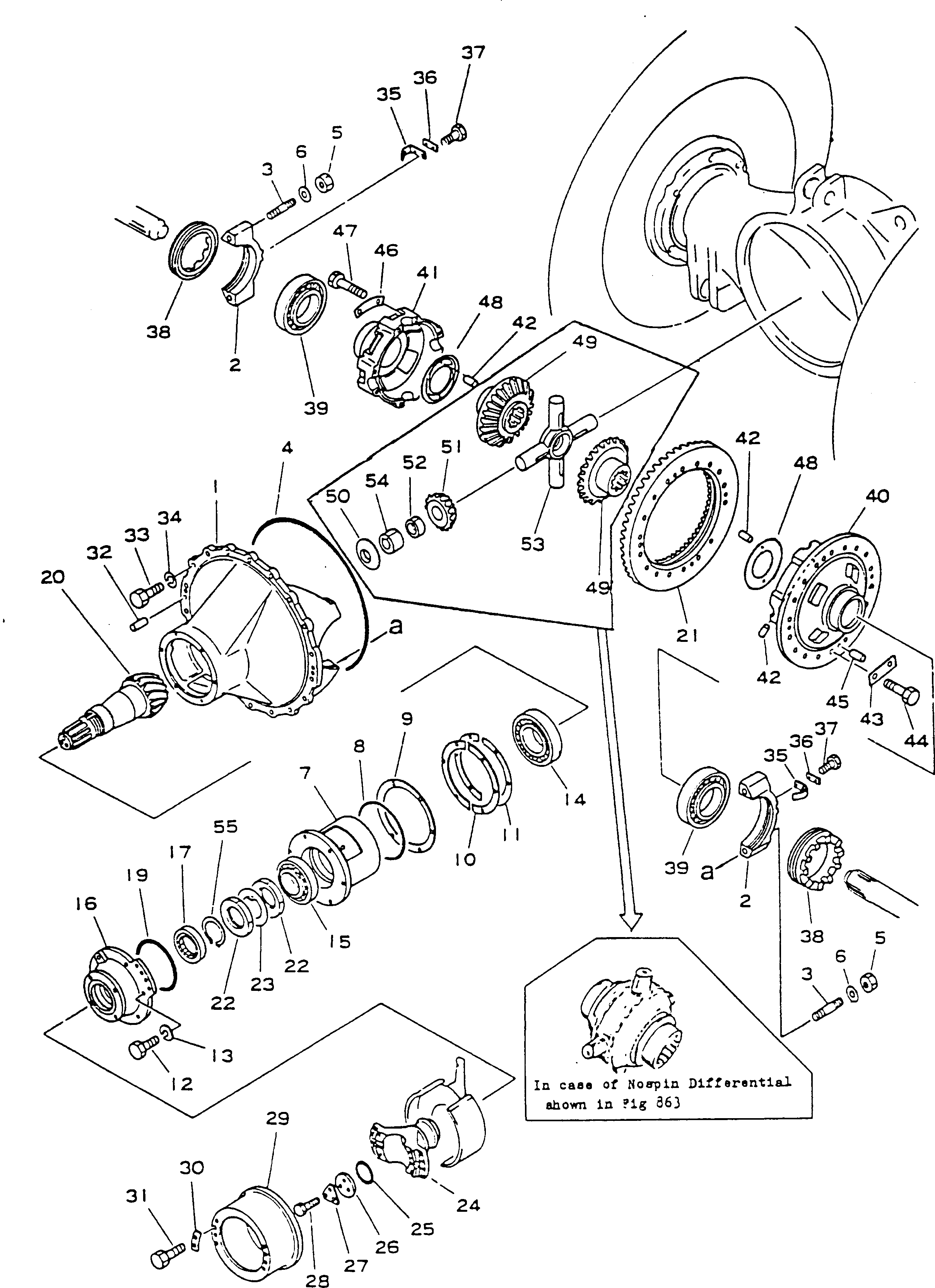

| ? | 568-22-11002 | DIFFERENTIAL ASS'Y | 1 | SN: 1002- |
|||
| ? | 568-81-22000 | DIFFERENTIAL ASS'Y,(WITH NO SPIN DIF.) | 1 | SN: 1002- |
|||
| ? | 568-22-00012 | • CASE ASS'Y | 1 | SN: 1002- |
|||
| ? | ☆ | • • CASE | 1 | SN: 1002- |
|||
| ? | ☆ | • • CAP | 2 | SN: 1002- |
|||
| ? | 01145-63685 | • • STUD | 4 | SN: 1002- |
|||
| ? | 568-22-11630 | • O-RING (KIT) | 1 | SN: 1002- |
|||
| ? | 01580-13629 | • NUT | 4 | SN: 1002- |
|||
| ? | 01643-33690 | • WASHER | 4 | SN: 1002- |
|||
| ? | 568-22-11350 | • CAGE | 1 | SN: 1002- |
|||
| ? | 07000-05320 | • O-RING (KIT) | 1 | SN: 1002- |
|||
| ? | 568-22-00031 | • SHIM ASS'Y | 1 | SN: 1002- |
|||
| ? | 568-22-11370 | • • SHIM ? 1.0MM | 4 | SN: 1002- |
|||
| ? | 568-22-11381 | • • SHIM ? 0.2MM | 8 | SN: 1002- |
|||
| ? | 568-22-11391 | • • SHIM ? 0.3MM | 8 | SN: 1002- |
|||
| ? | 01010-62090 | • BOLT | 6 | SN: 1002- |
|||
| ? | 01602-22060 | • WASHER | 6 | SN: 1002- |
|||
| ? | 561-27-11910 | • BEARING | 1 | SN: 1002- |
|||
| ? | 06000-32224 | • BEARING | 1 | SN: 1002- |
|||
| ? | 568-22-11412 | • CAGE | 1 | SN: 1002- |
|||
| ? | 07012-10110 | • SEAL (KIT) | 1 | SN: 1002- |
|||
| ? | 07000-05230 | • O-RING (KIT) | 1 | SN: 1002- |
|||
| ? | 568-22-00023 | • BEVEL GEAR ASS'Y | 1 | SN: 1002- |
|||
| ? | ☆ | • • PINION | 1 | SN: 1002- |
|||
| ? | ☆ | • • GEAR | 1 | SN: 1002- |
|||
| ? | 285-22-11320 | • NUT | 2 | SN: 1002- |
|||
| ? | 285-22-11330 | • LOCK (KIT) | 1 | SN: 1002- |
|||
| ? | 568-22-11420 | • COUPLING | 1 | SN: 1002- |
|||
| ? | 07000-05085 | • O-RING (KIT) | 1 | SN: 1002- |
|||
| ? | 568-15-13240 | • RETAINER | 1 | SN: 1002- |
|||
| ? | 281-22-11280 | • LOCK (KIT) | 1 | SN: 1002- |
|||
| ? | 01010-61655 | • BOLT | 3 | SN: 1002- |
|||
| ? | 568-22-11431 | • DRUM | 1 | SN: 1002- |
|||
| ? | 568-22-11460 | • LOCK (KIT) | 4 | SN: 1002- |
|||
| ? | 01050-31840 | • BOLT | 8 | SN: 1002- |
|||
| ? | 04020-01842 | • PIN | 1 | SN: 1002- |
|||
| ? | 01010-62465 | • BOLT | 18 | SN: 1002- |
|||
| ? | 01602-22472 | • WASHER | 18 | SN: 1002- |
|||
| ? | 281-22-11640 | • LOCK | 2 | SN: 1002- |
|||
| ? | 04081-05512 | • LOCK (KIT) | 2 | SN: 1002- |
|||
| ? | 01010-51230 | • BOLT | 4 | SN: 1002- |
|||
| ? | 568-22-11611 | • NUT | 2 | SN: 1002- |
|||
| ? | 568-22-11960 | • BEARING | 2 | SN: 1002- |
|||
| ? | 568-22-00043 | • GEAR CASE ASS'Y | 1 | SN: 1002- |
|||
| ? | ☆ | • • CASE | 1 | SN: 1002- |
|||
| ? | ☆ | • • CASE | 1 | SN: 1002- |
|||
| ? | 565-22-11991 | • PIN | 8 | SN: 1002- |
|||
| ? | 568-22-11320 | • PLATE (KIT) | 9 | SN: 1002- |
|||
| ? | 01010-62470 | • BOLT | 18 | SN: 1002- |
|||
| ? | 568-22-11280 | • PIN | 3 | SN: 1002- |
|||
| ? | 568-22-11480 | • LOCK (KIT) | 4 | SN: 1002- |
|||
| ? | 01011-62250 | • BOLT | 8 | SN: 1002- |
|||
| ? | 568-22-11211 | • WASHER | 2 | SN: 1002- |
|||
| ? | 568-22-11180 | • GEAR | 2 | SN: 1002- |
|||
| ? | 568-22-11190 | • WASHER | 4 | SN: 1002- |
|||
| ? | 568-22-11170 | • PINION | 4 | SN: 1002- |
|||
| ? | 07177-06030 | • BUSHING | 4 | SN: 1002- |
|||
| ? | 568-22-11160 | • SHAFT | 1 | SN: 1002- |
|||
| ? | 568-22-11250 | • BUSHING | 4 | SN: 1002- |
|||
| ? | 04064-09530 | • RING | 1 | SN: 1002- |
