| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

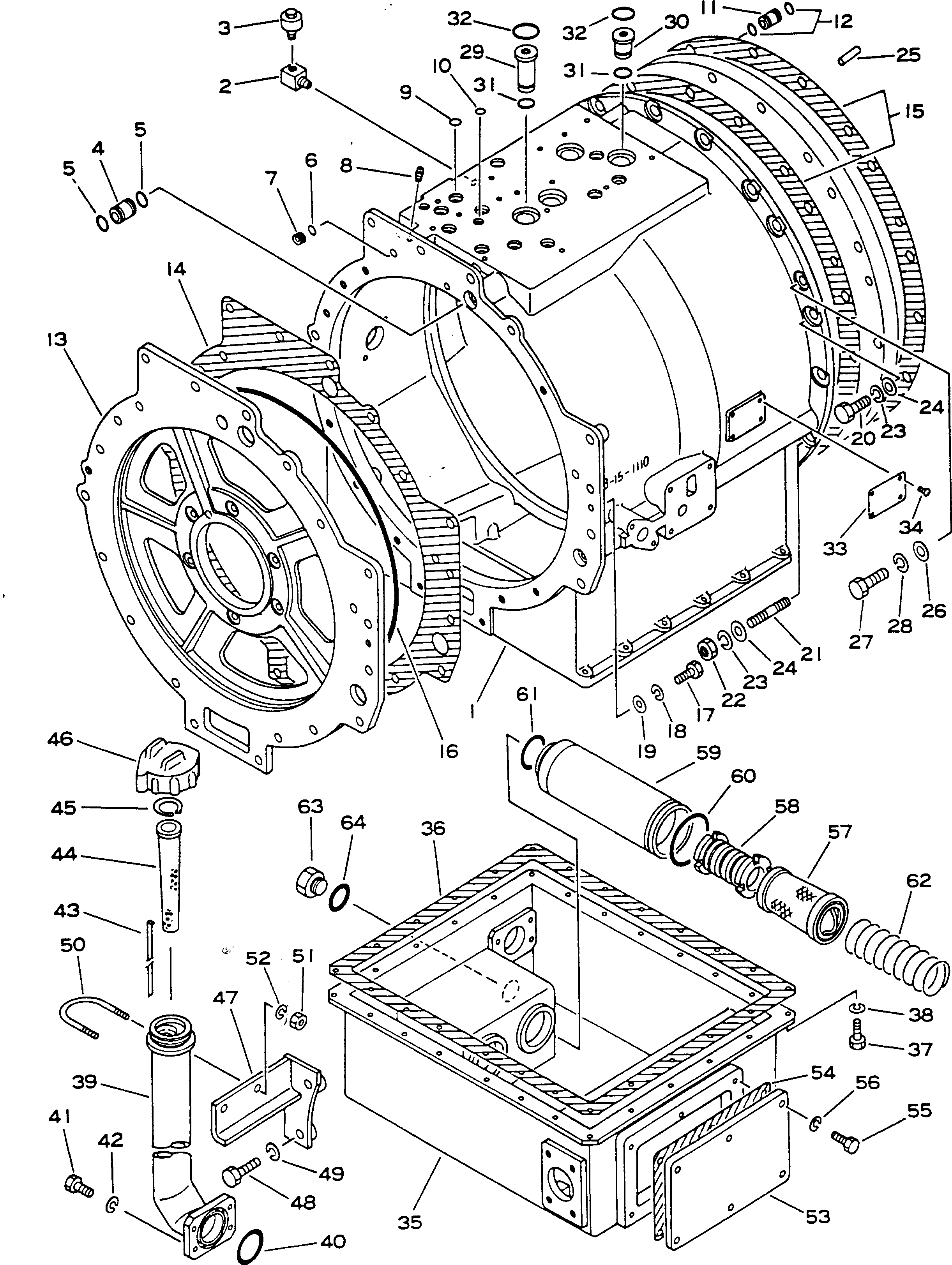

| ? | 561-15-00010 | TRANSMISSION ASS'Y | 1 | SN: 1002- |
|||
| ? | 568-15-11110 | • CASE | 1 | SN: 1002- |
|||
| ? | 568-15-11610 | • ELBOW | 1 | SN: 1002- |
|||
| ? | 07030-00252 | • BREATHER | 1 | SN: 1002- |
|||
| ? | 568-15-11290 | • SLEEVE | 1 | SN: 1002- |
|||
| ? | 07000-63025 | • O-RING | 2 | SN: 1002- |
|||
| ? | 07000-62010 | • O-RING | 1 | SN: 1002- |
|||
| ? | 566-15-11290 | • SLEEVE | 1 | SN: 1002- |
|||
| ? | 07042-00211 | • PLUG | 1 | SN: 1002- |
|||
| ? | 07000-62021 | • O-RING | 11 | SN: 1002- |
|||
| ? | 07000-62014 | • O-RING | 2 | SN: 1002- |
|||
| ? | 568-15-11310 | • SLEEVE | 1 | SN: 1002- |
|||
| ? | 07000-62016 | • O-RING | 2 | SN: 1002- |
|||
| ? | 568-15-11121 | • PLATE | 1 | SN: 1002- |
|||
| ? | 568-15-11410 | • GASKET | 1 | SN: 1002- |
|||
| ? | 568-15-11420 | • GASKET | 2 | SN: 1002- |
|||
| ? | 568-15-11390 | • O-RING | 1 | SN: 1002- |
|||
| ? | 01010-51230 | • BOLT | 2 | SN: 1002- |
|||
| ? | 01602-21236 | • WASHER | 2 | SN: 1002- |
|||
| ? | 01641-21223 | • WASHER | 2 | SN: 1002- |
|||
| ? | 01010-51670 | • BOLT | 9 | SN: 1002- |
|||
| ? | 01144-51665 | • STUD | 7 | SN: 1002- |
|||
| ? | 01580-11613 | • NUT | 7 | SN: 1002- |
|||
| ? | 01602-21648 | • WASHER | 16 | SN: 1002- |
|||
| ? | 01641-21626 | • WASHER | 16 | SN: 1002- |
|||
| ? | 04020-01638 | • PIN | 3 | SN: 1002- |
|||
| ? | 01641-21223 | • WASHER | 3 | SN: 1002- |
|||
| ? | 01010-51240 | • BOLT | 3 | SN: 1002- |
|||
| ? | 01602-21236 | • WASHER | 3 | SN: 1002- |
|||
| ? | 568-15-11320 | • SLEEVE | 2 | SN: 1002- |
|||
| ? | 568-15-11330 | • SLEEVE | 2 | SN: 1002- |
|||
| ? | 07000-63022 | • O-RING | 4 | SN: 1002- |
|||
| ? | 07000-63040 | • O-RING | 4 | SN: 1002- |
|||
| ? | 09608-05080 | • PLATE ? NAME | 1 | SN: 1002- |
|||
| ? | 04418-03060 | • SCREW | 4 | SN: 1002- |
|||
| ? | 568-15-11550 | • TANK | 1 | SN: 1002- |
|||
| ? | 568-15-11430 | • GASKET | 1 | SN: 1002- |
|||
| ? | 01010-51030 | • BOLT | 24 | SN: 1002- |
|||
| ? | 01602-21030 | • WASHER | 24 | SN: 1002- |
|||
| ? | 568-15-11640 | • FILLER | 1 | SN: 1002- |
|||
| ? | 07000-02060 | • O-RING | 1 | SN: 1002- |
|||
| ? | 01010-51235 | • BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21236 | • WASHER | 4 | SN: 1002- |
|||
| ? | 568-15-11630 | • GAUGE | 1 | SN: 1002- |
|||
| ? | 07056-10045 | • STRAINER | 1 | SN: 1002- |
|||
| ? | 04065-04518 | • RING | 1 | SN: 1002- |
|||
| ? | 07051-00000 | • CAP | 1 | SN: 1002- |
|||
| ? | 568-15-11620 | • BRACKET | 1 | SN: 1002- |
|||
| ? | 01010-51690 | • BOLT | 2 | SN: 1002- |
|||
| ? | 01602-21648 | • WASHER | 2 | SN: 1002- |
|||
| ? | 07283-16155 | • CLIP | 1 | SN: 1002- |
|||
| ? | 01599-01011 | • NUT | 2 | SN: 1002- |
|||
| ? | 01643-21032 | • WASHER | 2 | SN: 1002- |
|||
| ? | 568-15-11560 | • COVER | 1 | SN: 1002- |
|||
| ? | 568-15-11440 | • GASKET | 1 | SN: 1002- |
|||
| ? | 01010-51022 | • BOLT | 6 | SN: 1002- |
|||
| ? | 01602-21030 | • WASHER | 6 | SN: 1002- |
|||
| ? | 256-15-11520 | • SCREEN | 2 | SN: 1002- |
|||
| ? | 256-15-11530 | • MAGNET ASS'Y | 2 | SN: 1002- |
|||
| ? | 256-15-11510 | • CASE | 2 | SN: 1002- |
|||
| ? | 07000-02090 | • O-RING | 2 | SN: 1002- |
|||
| ? | 07000-02055 | • O-RING | 2 | SN: 1002- |
|||
| ? | 568-15-11570 | • SPRING | 2 | SN: 1002- |
|||
| ? | 07044-13620 | • PLUG | 1 | SN: 1002- |
|||
| ? | 07002-03634 | • O-RING | 1 | SN: 1002- |
