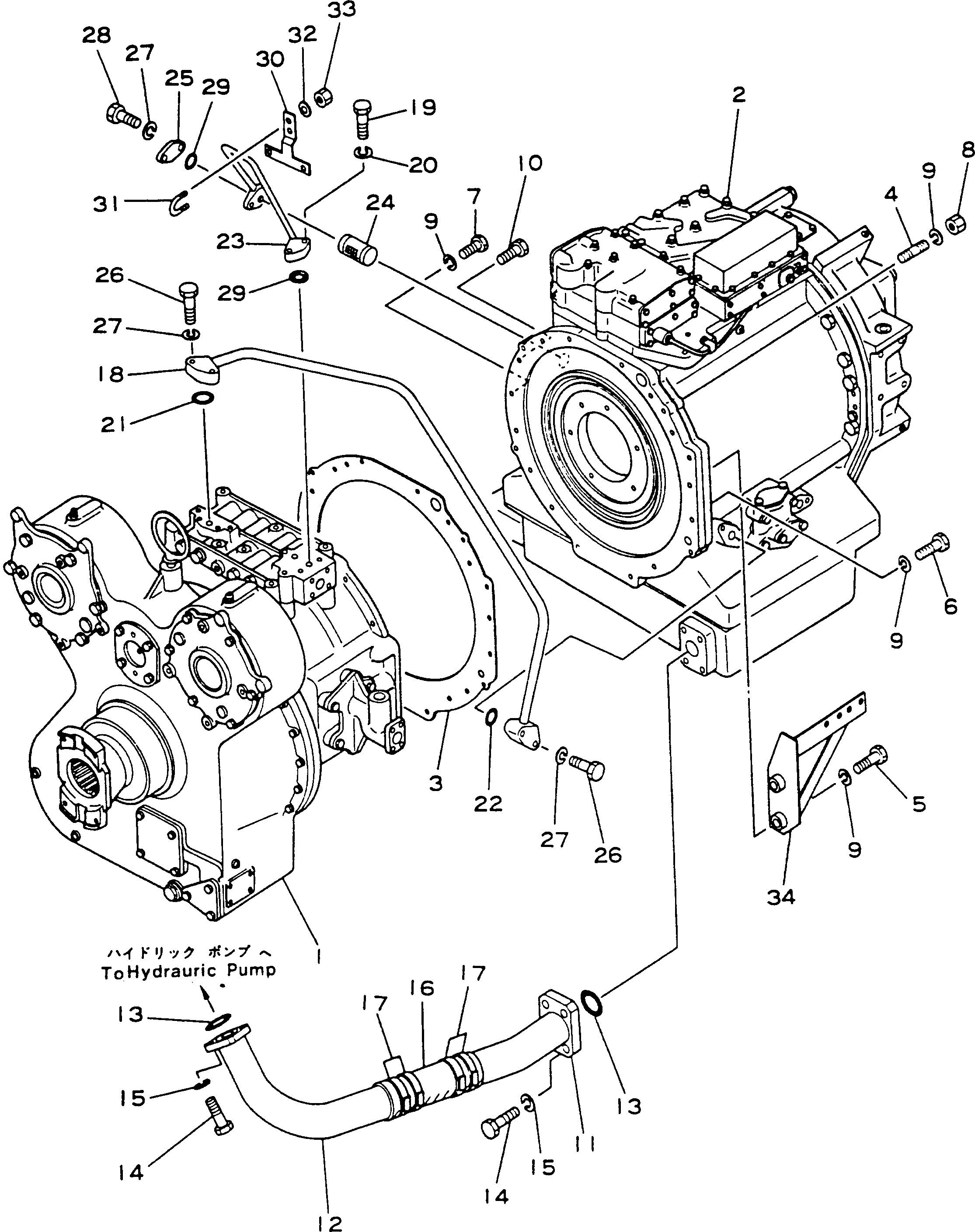

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 561-15-01000 | TORQFLOW ASS'Y | 1 | SN: 1000-1000 |
|||
| ? | 561-15-03000 | TORQFLOW ASS'Y | 1 | SN: 1002- |
|||
| ? | (568-13-11001) | • TORQUE CONVERTER A. | 1 | SN: 1000-1000 |
|||
| ? | (711-28-11000) | • TORQUE CONVERTER A. | 1 | SN: 1002- |
|||
| ? | (561-15-00010) | • TRANSMISSION ASS'Y | 1 | SN: 1002- |
|||
| ? | 568-13-13211 | • GASKET | 1 | SN: 1002- |
|||
| ? | 01144-51455 | • STUD | 3 | SN: 1002- |
|||
| ? | 01010-51480 | • BOLT | 2 | SN: 1002- |
|||
| ? | 01010-51460 | • BOLT | 14 | SN: 1002- |
|||
| ? | 01010-51475 | • BOLT | 1 | SN: 1002- |
|||
| ? | 01580-11411 | • NUT | 3 | SN: 1002- |
|||
| ? | 01602-21442 | • WASHER | 20 | SN: 1002- |
|||
| ? | 01010-51245 | • BOLT | 1 | SN: 1002- |
|||
| ? | 568-16-11610 | • TUBE | 1 | SN: 1002- |
|||
| ? | 568-16-11620 | • TUBE | 1 | SN: 1002- |
|||
| ? | 07000-32075 | • O-RING | 2 | SN: 1002- |
|||
| ? | 01010-51240 | • BOLT | 8 | SN: 1002- |
|||
| ? | 01602-21236 | • WASHER | 8 | SN: 1002- |
|||
| ? | 07260-25822 | • HOSE | 1 | SN: 1002- |
|||
| ? | 07281-10809 | • CLAMP | 4 | SN: 1002- |
|||
| ? | 568-15-16340 | • TUBE | 1 | SN: 1002- |
|||
| ? | 01010-51055 | • BOLT | 2 | SN: 1002- |
|||
| ? | 01602-21030 | • WASHER | 2 | SN: 1002- |
|||
| ? | 07000-63025 | • O-RING | 1 | SN: 1002- |
|||
| ? | 07000-63035 | • O-RING | 1 | SN: 1002- |
|||
| ? | 561-15-38320 | • TUBE | 1 | SN: 1002- |
|||
| ? | 568-15-13660 | • STRAINER | 1 | SN: 1002- |
|||
| ? | 568-15-13680 | • COVER | 1 | SN: 1002- |
|||
| ? | 01010-51045 | • BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21030 | • WASHER | 6 | SN: 1002- |
|||
| ? | 01010-51060 | • BOLT | 2 | SN: 1002- |
|||
| ? | 07000-63022 | • O-RING | 2 | SN: 1002- |
|||
| ? | 568-15-16160 | • BRACKET | 1 | SN: 1002- |
|||
| ? | 07283-11529 | • CLIP | 1 | SN: 1002- |
|||
| ? | 01643-20823 | • WASHER | 2 | SN: 1002- |
|||
| ? | 01598-00809 | • NUT | 2 | SN: 1002- |
|||
| ? | 568-15-16150 | • BRACKET | 1 | SN: 1002- |
