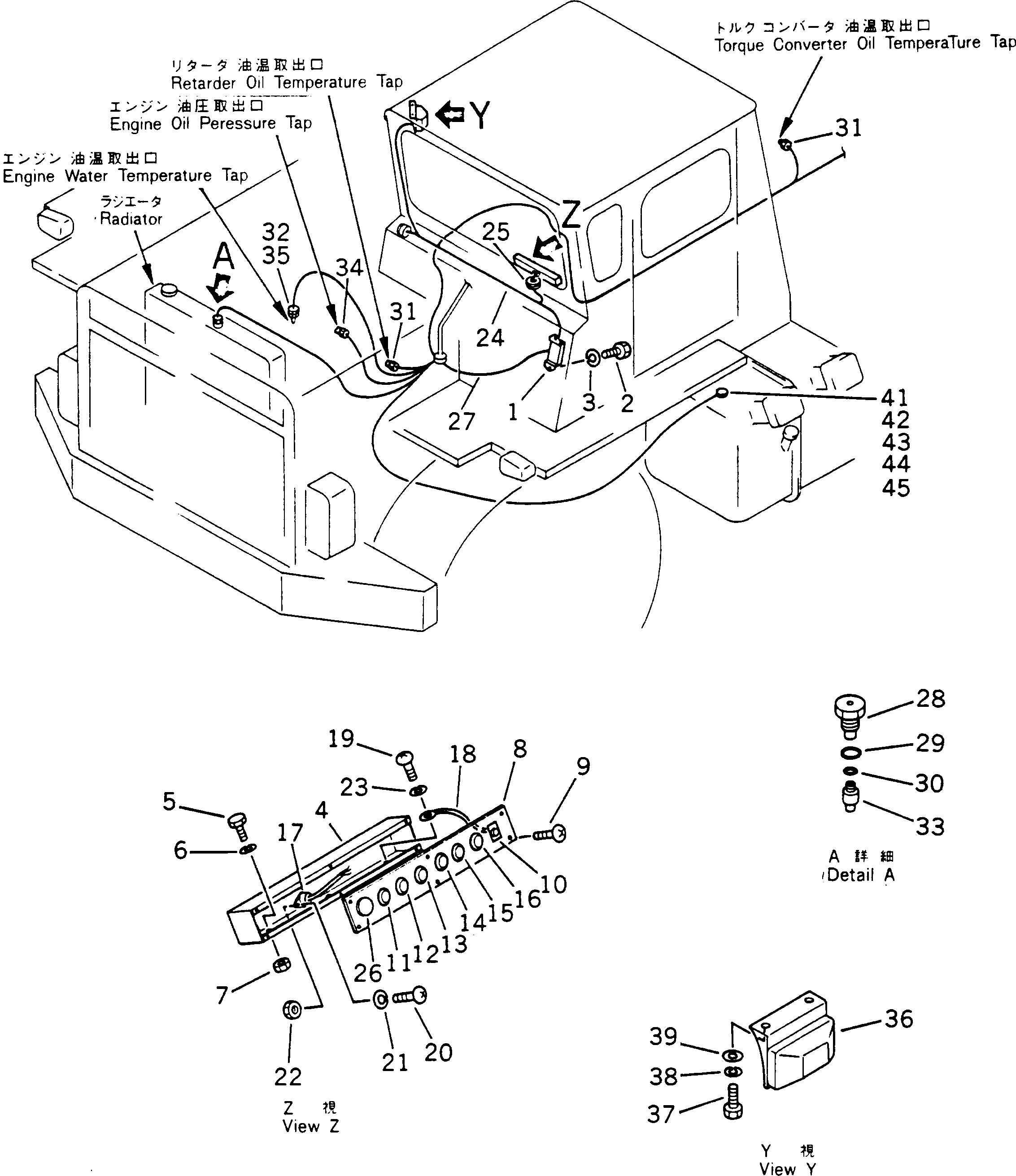

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 287-99-23640 | CONTROLLER | 1 | SN: 1002- |
|||
| ? | 01010-50812 | BOLT | 2 | SN: 1002- |
|||
| ? | 01602-20825 | WASHER | 2 | SN: 1002- |
|||
| ? | 569-07-16110 | BOX | 1 | SN: 1002- |
|||
| ? | 01010-50816 | BOLT | 2 | SN: 1002- |
|||
| ? | 01602-20825 | WASHER | 2 | SN: 1002- |
|||
| ? | 01580-10806 | NUT | 2 | SN: 1002- |
|||
| ? | 569-07-16120 | PANEL | 1 | SN: 1000-1000 |
|||
| ? | 561-07-31510 | PANEL | 1 | SN: 1002- |
|||
| ? | 01220-40610 | SCREW | 6 | SN: 1002- |
|||
| ? | 480-06-13181 | SWITCH | 1 | SN: 1002- |
|||
| ? | 569-07-16310 | LAMP | 1 | SN: 1002- |
|||
| ? | 569-07-16320 | LAMP | 1 | SN: 1002- |
|||
| ? | 569-07-16330 | LAMP | 1 | SN: 1002- |
|||
| ? | 569-07-16340 | LAMP | 1 | SN: 1002- |
|||
| ? | 569-07-16350 | LAMP | 1 | SN: 1002- |
|||
| ? | 569-07-16360 | LAMP | 1 | SN: 1002- |
|||
| ? | 569-07-16210 | WIRE HARNESS | 1 | SN: 1002- |
|||
| ? | 08029-02420 | WIRE | 1 | SN: 1002- |
|||
| ? | 01220-40510 | SCREW | 1 | SN: 1002- |
|||
| ? | 01220-40310 | SCREW | 2 | SN: 1002- |
|||
| ? | 01601-20307 | WASHER | 2 | SN: 1002- |
|||
| ? | 01580-10302 | NUT | 2 | SN: 1002- |
|||
| ? | 01601-20513 | WASHER | 1 | SN: 1002- |
|||
| ? | 569-07-16220 | HARNESS | 1 | SN: 1000-1000 |
|||
| ? | 561-06-31520 | HARNESS | 1 | SN: 1002- |
|||
| ? | 08037-03614 | GROMMET | 1 | SN: 1002- |
|||
| ? | 09415-01610 | CAP | 1 | SN: 1000-1000 |
|||
| ? | 561-06-31540 | LAMP | 1 | SN: 1002- |
|||
| ? | 569-07-16230 | WIRE HARNESS | 1 | SN: 1000- |
|||
| ? | 561-06-31530 | HARNESS | 1 | SN: 1002- |
|||
| ? | 281-03-11920 | PLUG | 1 | SN: 1000-1000 |
|||
| ? | 562-07-16160 | PLUG | 1 | SN: 1002- |
|||
| ? | 07002-43634 | O-RING | 1 | SN: 1002- |
|||
| ? | 07002-21023 | O-RING | 1 | SN: 1002- |
|||
| ? | 281-06-13913 | SENSOR | 2 | SN: 1002- |
|||
| ? | 281-06-13922 | SENSOR | 1 | SN: 1002- |
|||
| ? | 430-06-13631 | SWITCH | 1 | SN: 1002- |
|||
| ? | 08073-00505 | SWITCH | 1 | SN: 1002- |
|||
| ? | 565-06-13212 | ADAPTER | 1 | SN: 1002- |
|||
| ? | 566-06-13890 | LAMP,CAUTION | 1 | SN: 1002- |
|||
| ? | 01010-50830 | BOLT | 2 | SN: 1002- |
|||
| ? | 01602-20825 | WASHER | 2 | SN: 1002- |
|||
| ? | 01643-30823 | WASHER | 2 | SN: 1002- |
|||
| ? | 568-06-12250 | CABLE | 1 | SN: 1002- |
|||
| ? | 209-06-13370 | INDICATOR ASS'Y | 1 | SN: 1002- |
|||
| ? | 07000-01005 | O-RING | 2 | SN: 1002- |
|||
| ? | 01220-30535 | SCREW | 4 | SN: 1002- |
|||
| ? | 01601-20513 | WASHER | 4 | SN: 1002- |
|||
| ? | 01641-20508 | WASHER | 4 | SN: 1002- |
