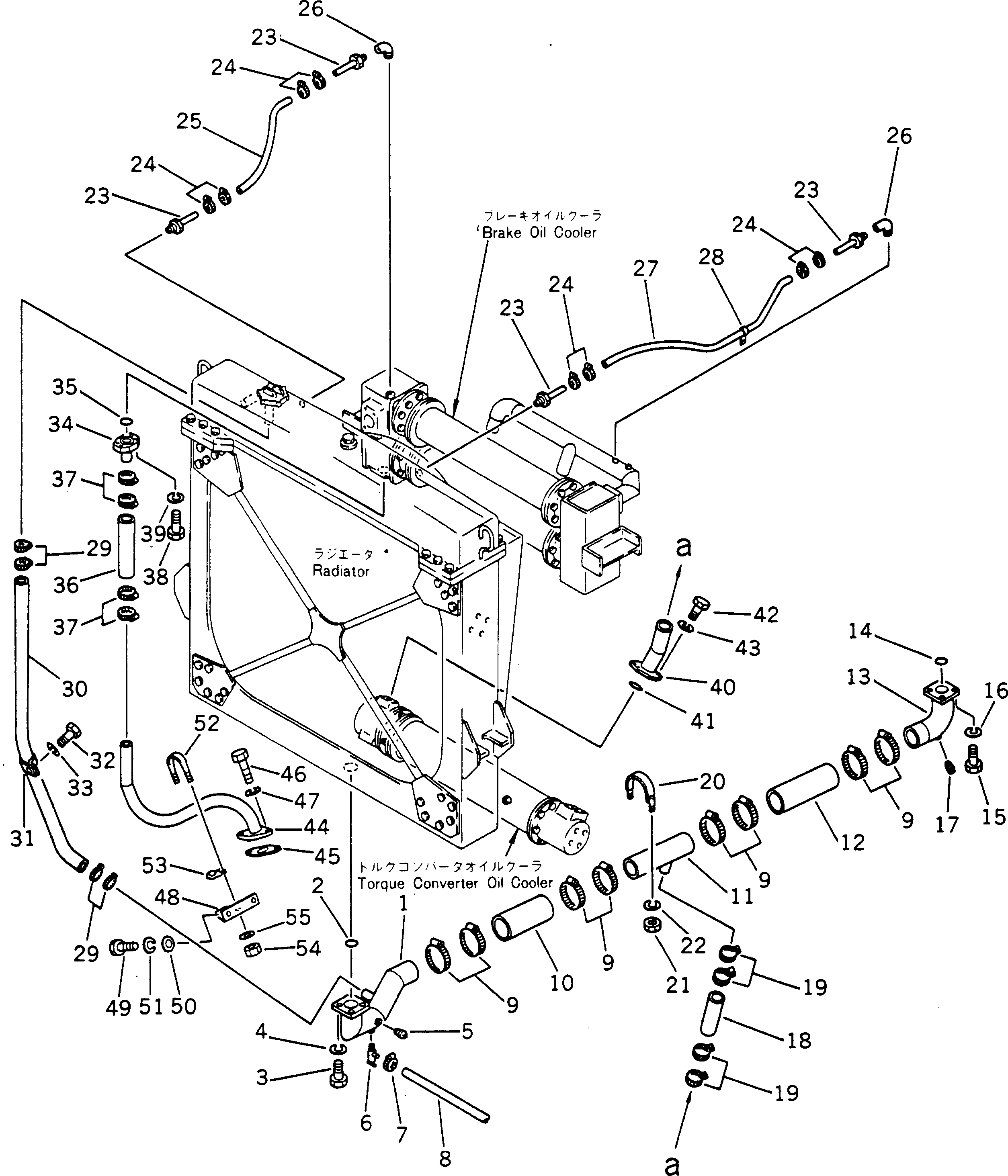

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 561-03-31551 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-02120 | O-RING | 1 | SN: 1002- |
|||
| ? | 01010-51240 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 4 | SN: 1002- |
|||
| ? | 07042-20415 | PLUG | 1 | SN: 1002- |
|||
| ? | 175-803-1340 | COCK | 1 | SN: 1002- |
|||
| ? | 07281-00359 | CLAMP | 1 | SN: 1002- |
|||
| ? | 287-35-11940 | TUBE | 1 | SN: 1002- |
|||
| ? | 07281-01469 | CLAMP | 8 | SN: 1002- |
|||
| ? | 581-03-12540 | HOSE | 1 | SN: 1002- |
|||
| ? | 561-03-31561 | TUBE | 1 | SN: 1002- |
|||
| ? | 581-03-12540 | HOSE | 1 | SN: 1002- |
|||
| ? | 562-03-12570 | FLANGE | 1 | SN: 1002- |
|||
| ? | 07000-02125 | O-RING | 1 | SN: 1002- |
|||
| ? | 02010-70638 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-20929 | WASHER | 4 | SN: 1002- |
|||
| ? | 07042-20108 | PLUG | 1 | SN: 1002- |
|||
| ? | 07260-25822 | HOSE | 1 | SN: 1002- |
|||
| ? | 07281-05832 | CLAMP | 4 | SN: 1002- |
|||
| ? | 567-02-11170 | CLIP | 1 | SN: 1002- |
|||
| ? | 01580-11008 | NUT | 2 | SN: 1002- |
|||
| ? | 01602-21030 | WASHER | 2 | SN: 1002- |
|||
| ? | 195-03-11530 | NIPPLE | 4 | SN: 1002- |
|||
| ? | 07281-00197 | CLAMP | 8 | SN: 1002- |
|||
| ? | 07260-20950 | HOSE | 1 | SN: 1002- |
|||
| ? | 07323-30200 | ELBOW | 2 | SN: 1002- |
|||
| ? | 07260-20980 | HOSE | 1 | SN: 1002- |
|||
| ? | 08036-01814 | CLIP | 1 | SN: 1002- |
|||
| ? | 07281-00709 | CLAMP | 4 | SN: 1002- |
|||
| ? | 07261-24715 | HOSE | 1 | SN: 1002- |
|||
| ? | 281-82-11740 | CLIP | 1 | SN: 1002- |
|||
| ? | 01010-51230 | BOLT | 1 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 1 | SN: 1002- |
|||
| ? | 561-03-31640 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-02060 | O-RING | 1 | SN: 1002- |
|||
| ? | 07260-25825 | HOSE | 1 | SN: 1002- |
|||
| ? | 07281-00809 | CLAMP | 4 | SN: 1002- |
|||
| ? | 01010-51255 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 4 | SN: 1002- |
|||
| ? | 561-03-31631 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-02060 | O-RING | 1 | SN: 1002- |
|||
| ? | 01010-51240 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 4 | SN: 1002- |
|||
| ? | 561-03-31730 | TUBE | 1 | SN: 1002- |
|||
| ? | 561-03-31750 | GASKET | 1 | SN: 1002- |
|||
| ? | 02010-70632 | BOLT | 2 | SN: 1002- |
|||
| ? | 01602-00929 | WASHER | 2 | SN: 1002- |
|||
| ? | 561-03-31740 | BRACKET | 1 | SN: 1002- |
|||
| ? | 02011-70627 | BOLT | 2 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 1002- |
|||
| ? | 01602-00929 | WASHER | 2 | SN: 1002- |
|||
| ? | 07283-36155 | CLIP | 1 | SN: 1002- |
|||
| ? | 07283-56170 | SEAT | 1 | SN: 1002- |
|||
| ? | 01599-01011 | NUT | 2 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 1002- |
