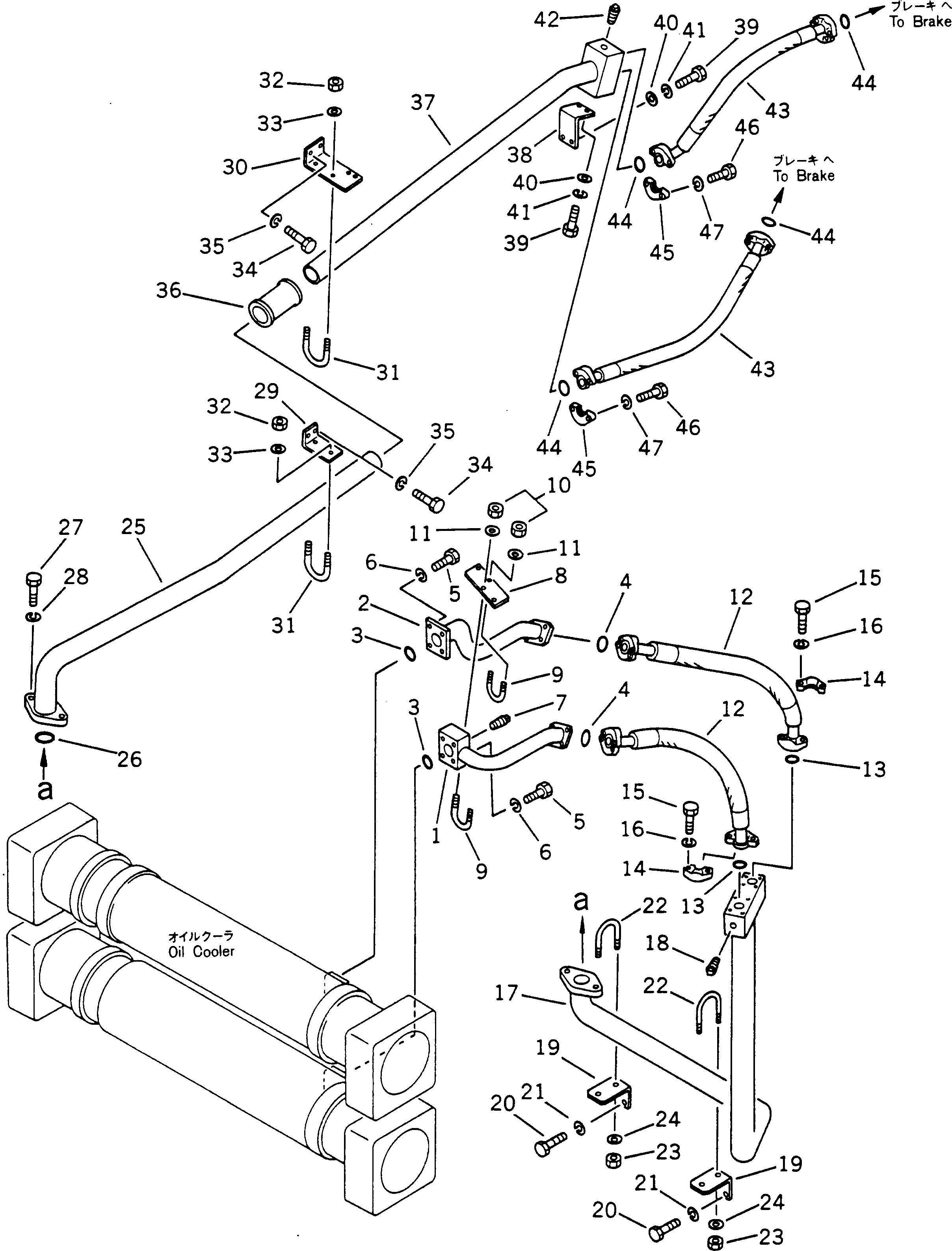

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 561-61-36310 | TUBE | 1 | SN: 1002- |
|||
| ? | 561-61-36320 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-12060 | O-RING | 2 | SN: 1002- |
|||
| ? | 07000-13048 | O-RING | 2 | SN: 1002- |
|||
| ? | 01010-51235 | BOLT | 8 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 8 | SN: 1002- |
|||
| ? | 07042-20108 | PLUG | 1 | SN: 1002- |
|||
| ? | 561-61-36810 | PLATE | 1 | SN: 1002- |
|||
| ? | 07283-24949 | CLIP | 2 | SN: 1002- |
|||
| ? | 01599-01011 | NUT | 4 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 1002- |
|||
| ? | 07114-01410 | HOSE | 2 | SN: 1002- |
|||
| ? | 07000-13048 | O-RING | 2 | SN: 1002- |
|||
| ? | 07371-31465 | FLANGE | 8 | SN: 1002- |
|||
| ? | 07372-21240 | BOLT | 16 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 16 | SN: 1002- |
|||
| ? | 561-61-36330 | TUBE | 1 | SN: 1002- |
|||
| ? | 07042-20108 | PLUG | 1 | SN: 1002- |
|||
| ? | 561-61-36820 | BRACKET | 2 | SN: 1002- |
|||
| ? | 01010-51225 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 4 | SN: 1002- |
|||
| ? | 07283-27663 | CLIP | 2 | SN: 1002- |
|||
| ? | 01599-01011 | NUT | 4 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 1002- |
|||
| ? | 561-61-36340 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-12085 | O-RING | 1 | SN: 1002- |
|||
| ? | 01010-51445 | BOLT | 2 | SN: 1002- |
|||
| ? | 01602-21442 | WASHER | 2 | SN: 1002- |
|||
| ? | 569-61-36830 | BRACKET | 1 | SN: 1002- |
|||
| ? | 561-61-36840 | BRACKET | 1 | SN: 1002- |
|||
| ? | 07283-27663 | CLIP | 2 | SN: 1002- |
|||
| ? | 01599-01011 | NUT | 4 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 1002- |
|||
| ? | 01010-51230 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 4 | SN: 1002- |
|||
| ? | 07332-02400 | COUPLING | 1 | SN: 1002- |
|||
| ? | 561-61-36350 | TUBE | 1 | SN: 1002- |
|||
| ? | 561-61-36850 | BRACKET | 1 | SN: 1002- |
|||
| ? | 01010-51230 | BOLT | 4 | SN: 1002- |
|||
| ? | 01643-31232 | WASHER | 4 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 4 | SN: 1002- |
|||
| ? | 07042-20108 | PLUG | 1 | SN: 1002- |
|||
| ? | 07114-01410 | HOSE | 2 | SN: 1002- |
|||
| ? | 07000-13048 | O-RING | 4 | SN: 1002- |
|||
| ? | 07371-31645 | FLANGE | 8 | SN: 1002- |
|||
| ? | 07372-21240 | BOLT | 16 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 16 | SN: 1002- |
