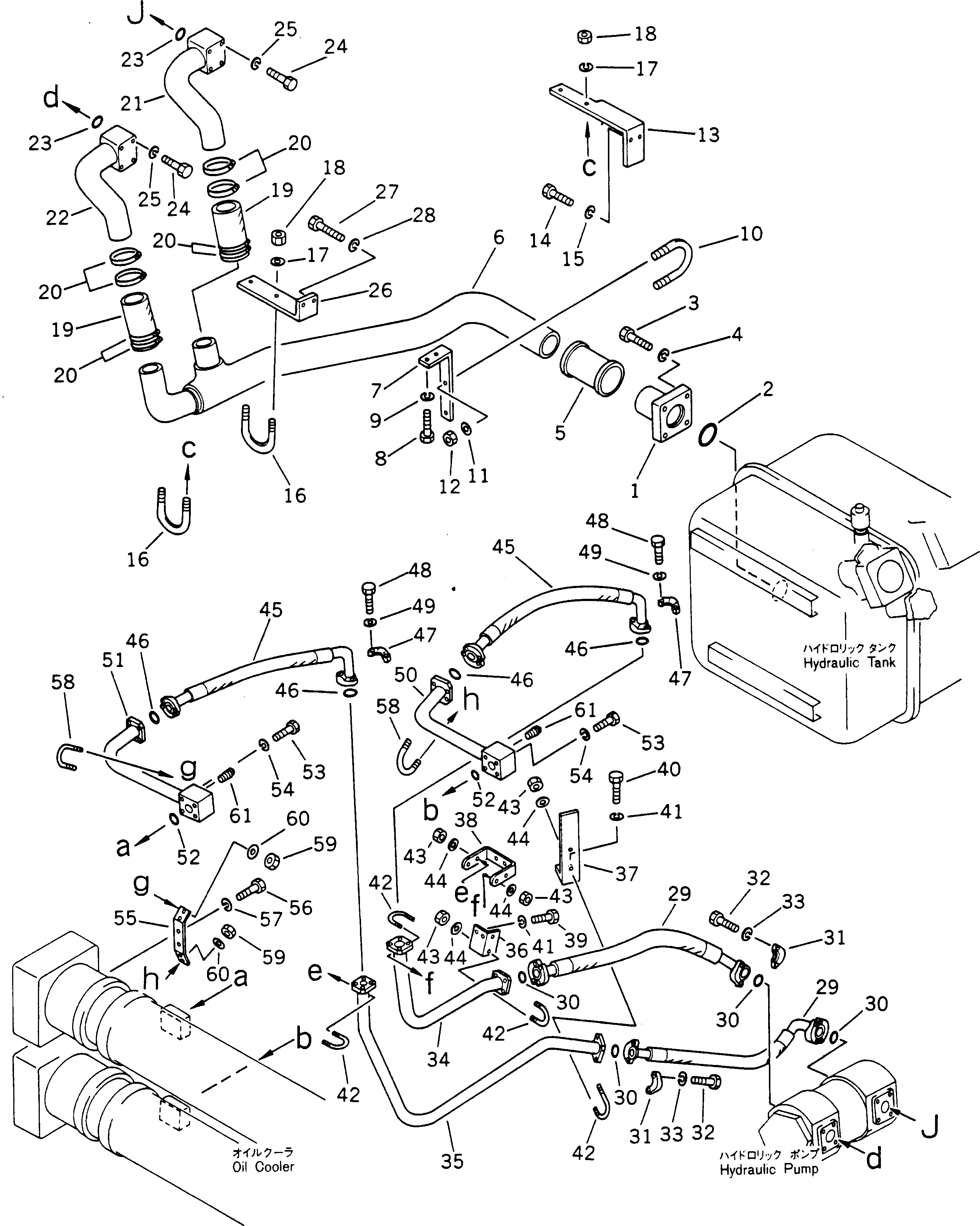

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 561-61-36110 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-12120 | O-RING | 1 | SN: 1002- |
|||
| ? | 01010-51650 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21648 | WASHER | 4 | SN: 1002- |
|||
| ? | 07332-04000 | COUPLING | 1 | SN: 1002- |
|||
| ? | 561-61-36120 | TUBE | 1 | SN: 1002- |
|||
| ? | 561-61-36710 | BRACKET | 1 | SN: 1002- |
|||
| ? | 01010-51235 | BOLT | 2 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 2 | SN: 1002- |
|||
| ? | 07283-21185 | CLIP | 1 | SN: 1002- |
|||
| ? | 01643-31232 | WASHER | 2 | SN: 1002- |
|||
| ? | 01599-01214 | NUT | 2 | SN: 1002- |
|||
| ? | 561-61-36720 | BRACKET | 1 | SN: 1002- |
|||
| ? | 01010-51230 | BOLT | 2 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 2 | SN: 1002- |
|||
| ? | 07283-28973 | CLIP | 2 | SN: 1002- |
|||
| ? | 01643-31232 | WASHER | 4 | SN: 1002- |
|||
| ? | 01599-01214 | NUT | 4 | SN: 1002- |
|||
| ? | 07260-08722 | HOSE | 2 | SN: 1002- |
|||
| ? | 07281-01159 | CLAMP | 8 | SN: 1002- |
|||
| ? | 561-61-36130 | TUBE | 1 | SN: 1002- |
|||
| ? | 561-61-36140 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-12085 | O-RING | 2 | SN: 1002- |
|||
| ? | 01011-51455 | BOLT | 8 | SN: 1002- |
|||
| ? | 01602-21442 | WASHER | 8 | SN: 1002- |
|||
| ? | 561-61-36730 | BRACKET | 1 | SN: 1002- |
|||
| ? | 01010-51230 | BOLT | 2 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 2 | SN: 1002- |
|||
| ? | 07118-01408 | HOSE | 2 | SN: 1002- |
|||
| ? | 07000-13048 | O-RING | 4 | SN: 1002- |
|||
| ? | 07371-31465 | FLANGE | 8 | SN: 1002- |
|||
| ? | 07372-21245 | BOLT | 16 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 16 | SN: 1002- |
|||
| ? | 561-61-36210 | TUBE | 1 | SN: 1002- |
|||
| ? | 561-61-36220 | TUBE | 1 | SN: 1002- |
|||
| ? | 561-61-36760 | BRACKET | 1 | SN: 1002- |
|||
| ? | 561-61-36770 | BRACKET | 1 | SN: 1002- |
|||
| ? | 561-61-36780 | BRACKET | 1 | SN: 1002- |
|||
| ? | 01010-51225 | BOLT | 2 | SN: 1002- |
|||
| ? | 01010-51230 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 6 | SN: 1002- |
|||
| ? | 07283-24949 | CLIP | 4 | SN: 1002- |
|||
| ? | 01599-01011 | NUT | 8 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 8 | SN: 1002- |
|||
| ? | 07114-01410 | HOSE | 2 | SN: 1002- |
|||
| ? | 07000-13048 | O-RING | 4 | SN: 1002- |
|||
| ? | 07371-31465 | FLANGE | 8 | SN: 1002- |
|||
| ? | 07372-21240 | BOLT | 16 | SN: 1002- |
|||
| ? | 01602-31236 | WASHER | 16 | SN: 1002- |
|||
| ? | 561-61-36230 | TUBE | 1 | SN: 1002- |
|||
| ? | 561-61-36240 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-12060 | O-RING | 2 | SN: 1002- |
|||
| ? | 01010-51275 | BOLT | 8 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 8 | SN: 1002- |
|||
| ? | 561-61-36790 | BRACKET | 1 | SN: 1002- |
|||
| ? | 01010-51230 | BOLT | 2 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 2 | SN: 1002- |
|||
| ? | 07283-24949 | CLIP | 2 | SN: 1002- |
|||
| ? | 01599-01011 | NUT | 4 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 1002- |
|||
| ? | 07042-20108 | PLUG | 2 | SN: 1002- |
