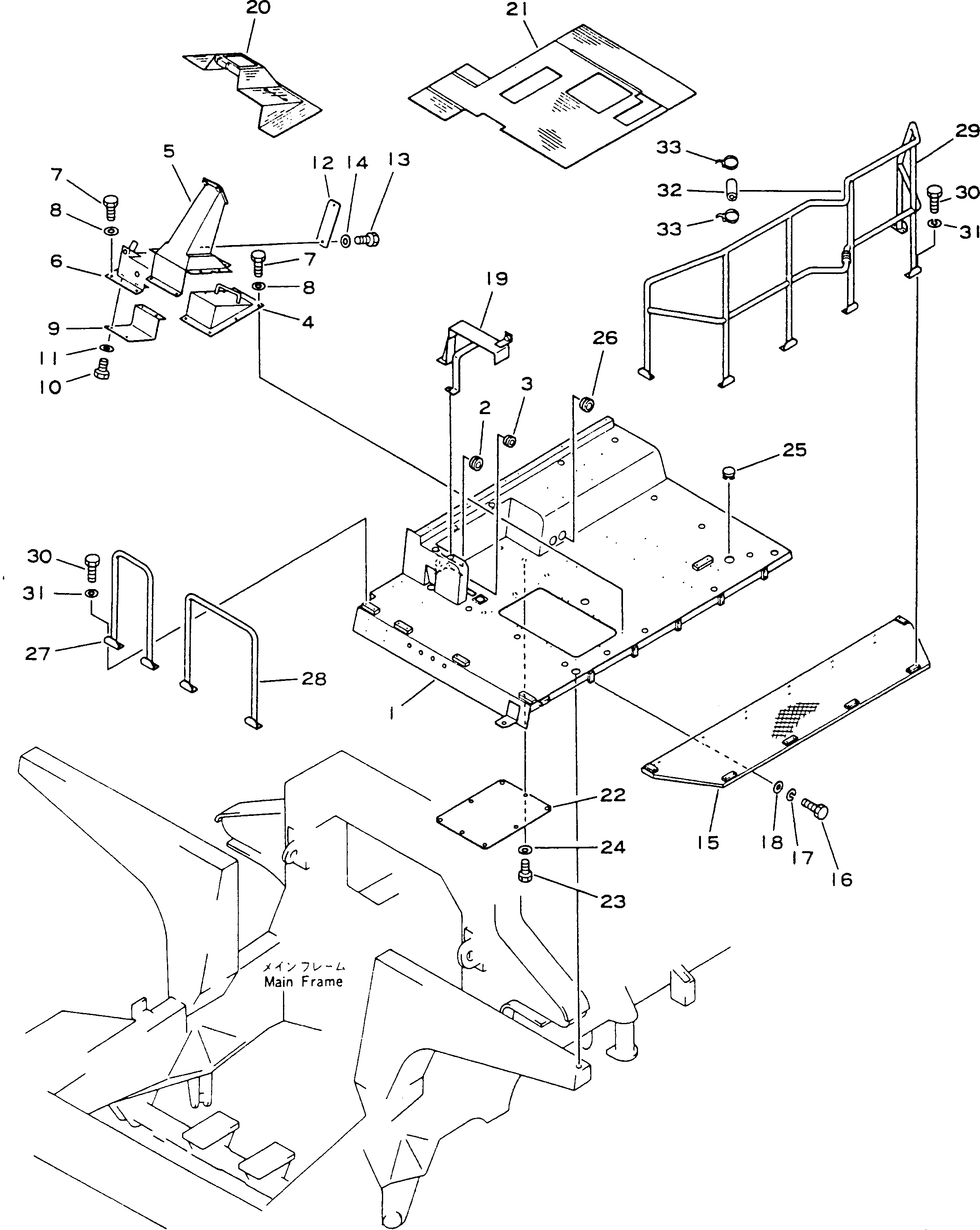

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 561-54-11310 | PLATFORM | 1 | SN: 1002- |
|||
| ? | 566-54-13970 | GROMMET | 4 | SN: 1002- |
|||
| ? | 566-54-13980 | GROMMET | 1 | SN: 1002- |
|||
| ? | 566-54-12324 | BOARD | 1 | SN: 1002- |
|||
| ? | 566-54-12662 | COVER | 1 | SN: 1002- |
|||
| ? | 569-54-12282 | BOARD | 1 | SN: 1002- |
|||
| ? | 01010-51020 | BOLT | 17 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 17 | SN: 1002- |
|||
| ? | 566-54-12651 | GUARD | 1 | SN: 1002- |
|||
| ? | 01010-51020 | BOLT | 4 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 1002- |
|||
| ? | 566-54-18210 | COVER | 1 | SN: 1002- |
|||
| ? | 01010-50812 | BOLT | 2 | SN: 1002- |
|||
| ? | 01640-20816 | WASHER | 2 | SN: 1002- |
|||
| ? | 561-54-11131 | PLATE | 1 | SN: 1002- |
|||
| ? | 01010-51020 | BOLT | 12 | SN: 1002- |
|||
| ? | 01602-21030 | WASHER | 12 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 12 | SN: 1002- |
|||
| ? | 566-07-11131 | BRACKET | 1 | SN: 1002- |
|||
| ? | 566-54-12913 | MAT | 1 | SN: 1002- |
|||
| ? | 566-54-12922 | MAT | 1 | SN: 1002- |
|||
| ? | 566-54-11190 | COVER | 1 | SN: 1002- |
|||
| ? | 01010-51025 | BOLT | 7 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 7 | SN: 1002- |
|||
| ? | 09415-05016 | CAP | 2 | SN: 1002- |
|||
| ? | 08037-05016 | GROMMET | 2 | SN: 1002- |
|||
| ? | 561-54-11350 | GUARD | 1 | SN: 1002- |
|||
| ? | 561-54-11340 | GUARD | 1 | SN: 1002- |
|||
| ? | 561-54-11320 | GUARD | 1 | SN: 1002- |
|||
| ? | 01010-51225 | BOLT | 20 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 20 | SN: 1002- |
|||
| ? | 566-07-11830 | INSULATOR | 2 | SN: 1002- |
|||
| ? | 08034-00536 | BAND | 4 | SN: 1002- |
