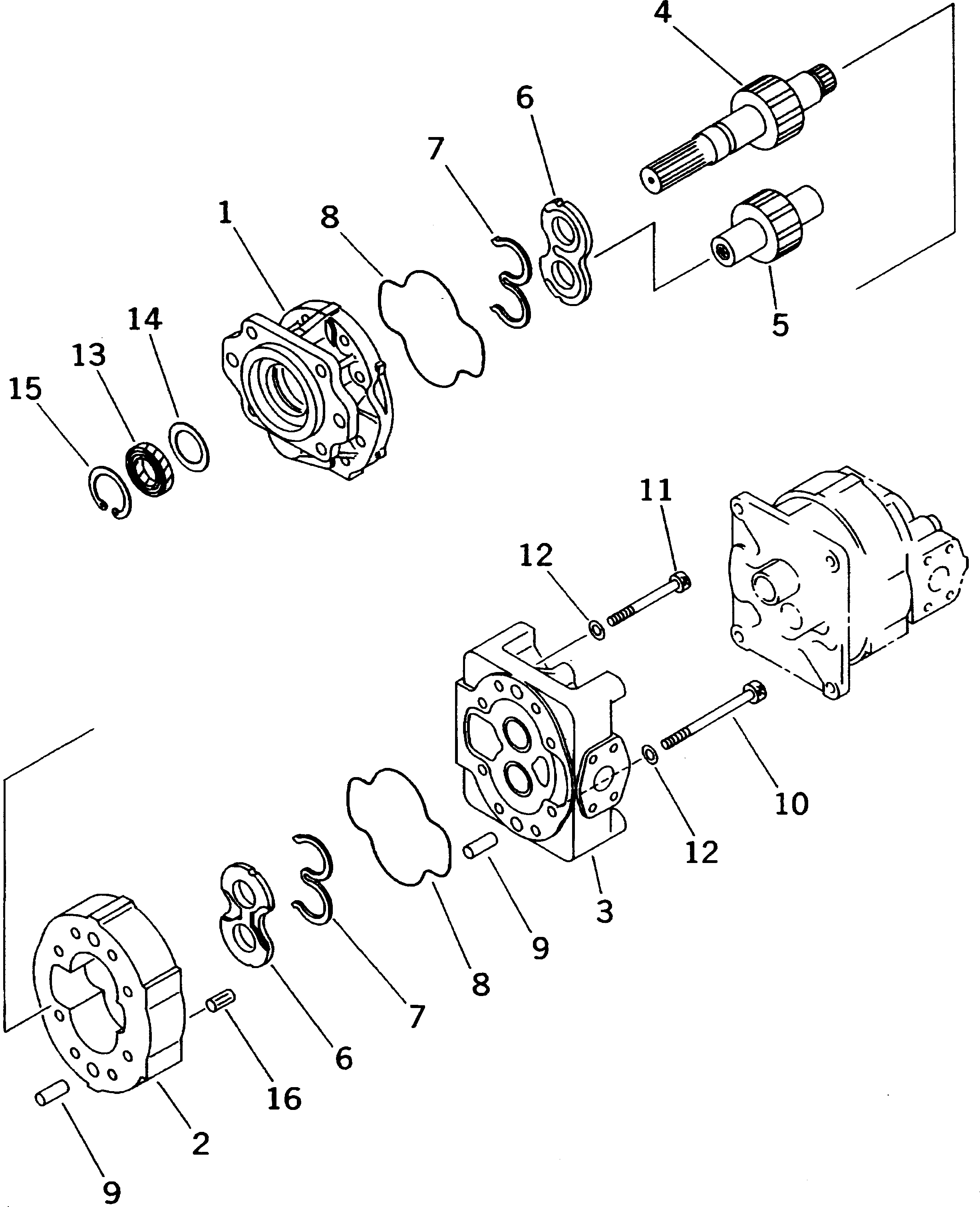

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 705-52-42090 | PUMP ASS'Y,(SAR(4)285+285H) | 1 | SN: 4001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-11A0 AND Y1600-12A0. | ||||||
| ? | 705-12-49240 | • PUMP ASS'Y,(SAR(4)285H) | 1 | SN: 4001- |
|||
| ? | (★705-17-04021) | • • BRACKET | 1 | SN: 4001- |
|||
| ? | (★705-17-04352) | • • • BUSHING,PLANE | 2 | SN: 4001- |
|||
| ? | (★705-17-49010) | • • CASE,GEAR | 1 | SN: 4001- |
|||
| ? | (★705-17-04221) | • • CARRIER | 1 | SN: 4001- |
|||
| ? | (★705-17-04352) | • • • BUSHING,PLANE | 2 | SN: 4001- |
|||
| ? | (★705-17-49430) | • • GEAR,DRIVE | 1 | SN: 4001- |
|||
| ? | (★705-17-49510) | • • GEAR,DRIVEN | 1 | SN: 4001- |
|||
| ? | (★705-17-04611) | • • PLATE,SIDE | 2 | SN: 4001- |
|||
| ? | (★705-18-04470) | • • SEAL | 2 | SN: 4001- |
|||
| ? | (★705-17-04382) | • • O-RING | 2 | SN: 4001- |
|||
| ? | (★04020-01842) | • • PIN,DOWEL | 4 | SN: 4001- |
|||
| ? | (★705-17-04910) | • • BOLT | 4 | SN: 4001- |
|||
| ? | (★705-17-04790) | • • BOLT | 4 | SN: 4001- |
|||
| ? | (★705-17-04980) | • • WASHER | 8 | SN: 4001- |
|||
| ? | 704-17-05811 | • • SEAL,OIL | 1 | SN: 4001- |
|||
| ? | 705-17-04870 | • • PLATE | 1 | SN: 4001- |
|||
| ? | 04065-06220 | • • RING,SNAP | 1 | SN: 4001- |
|||
| ? | 569-15-41310 | • • SLEEVE | 4 | SN: 4001- |
