Содержание Dump Trucks Komatsu HD785-5 S/N 4001-UP(hd785-5r)

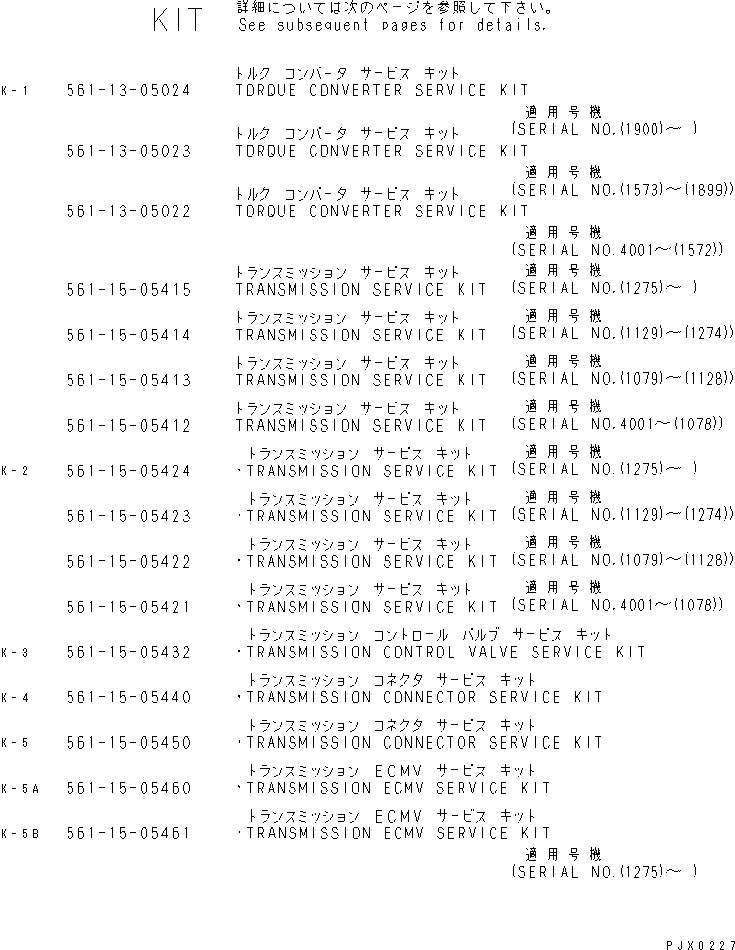

SERVICE KIT (1/3)(510010 : Y0100-01A0)
Номер на схеме Каталожный номер Название Количество Детали
? 561-13-05024 SERVICE KIT,TORQUE CONVERTER 1
SN: (1900)-
? 561-13-05023 SERVICE KIT,TORQUE CONVERTER 1
SN: (1573)-(1899)
? 561-13-05022 SERVICE KIT,TORQUE CONVERTER 1
SN: 4001-(1572)
? 07000-75075 • O-RING,(F3310-52A0 -4 ) 1
SN: 4001-
? 07012-50110 • SEAL,(F3310-52A0 -11 ) 1
SN: (1900)-
? 07012-10110 • SEAL,(F3310-52A0 -11- ) 1
SN: 4001-(1899)
? 711-28-49710 • SEAL,(F3310-52A0 -11A ) 1
SN: (1573)-
? 07000-75150 • O-RING,(F3310-52A0 -12 ) 1
SN: 4001-
? 07000-73035 • O-RING,(F3310-54A0 -2 ) 3
SN: 4001-
? 07000-63050 • O-RING,(F3310-54A0 -3 ) 2
SN: 4001-
? 561-13-43140 • O-RING,(F3310-54A0 -5 ) 1
SN: 4001-
? 07000-73022 • O-RING,(F3310-55A0 -17 ) 2
SN: 4001-
? 561-13-43180 • O-RING,(F3310-55A0 -18 ) 2
SN: 4001-
? 07005-01212 • GASKET,(F3310-56A0 -6 ) 8
SN: 4001-
? 711-28-46750 • GASKET,(F3310-56A0 -18 ) 1
SN: 4001-
? 07000-71006 • O-RING,(F3310-56A0 -20 ) 3
SN: 4001-
? 561-13-43190 • O-RING,(F3310-57A0 -7 ) 1
SN: 4001-
? 07000-62010 • • O-RING,(F3310-58A0 -21 ) 3
SN: 4001-
? 07000-63038 • • O-RING,(F3310-58A0 -22 ) 6
SN: 4001-
? 561-15-05415 SERVICE KIT,TRANSMISSION 1
SN: (1275)-
? 561-15-05414 SERVICE KIT,TRANSMISSION 1
SN: (1129)-(1274)
? 561-15-05413 SERVICE KIT,TRANSMISSION 1
SN: (1079)-(1128)
? 561-15-05412 SERVICE KIT,TRANSMISSION 1
SN: 4001-(1078)
? 561-15-05424 • SERVICE KIT,TRANSMISSION 1
SN: (1275)-
? 561-15-05423 • SERVICE KIT,TRANSMISSION 1
SN: (1129)-(1274)
? 561-15-05422 • SERVICE KIT,TRANSMISSION 1
SN: (1079)-(1128)
? 561-15-05421 • SERVICE KIT,TRANSMISSION 1
SN: 4001-(1078)
? 195-15-39220 • • RING,(F3320-51A0 -3 ) 2
SN: (1079)-
? 561-15-59250 • • RING,(F3320-51A0 -3- ) 2
SN: 4001-(1078)
? 175-15-59240 • • RING,(F3320-51A0 -4 ) 2
SN: (1079)-
? 561-15-59280 • • RING,(F3320-51A0 -4- ) 2
SN: 4001-(1078)
? 561-15-59290 • • RING,(F3320-51A0 -14 ) 1
SN: 4001-
? 175-15-59240 • • RING,(F3320-51A0 -4 ) 1
SN: (1129)-
? 561-15-59280 • • RING,(F3320-51A0 -4- ) 1
SN: 4001-(1128)
? 426-15-19220 • • RING,(F3320-51A0 -20 ) 1
SN: (1079)-
? 561-15-59320 • • RING,(F3320-51A0 -20- ) 1
SN: 4001-(1078)
? 175-15-59240 • • RING,(F3320-51A0 -4 ) 1
SN: (1129)-
? 561-15-59280 • • RING,(F3320-51A0 -4- ) 1
SN: 4001-(1128)
? 175-15-59250 • • RING,(F3320-52A0 -5 ) 1
SN: (1079)-
? 561-15-59240 • • RING,(F3320-52A0 -5- ) 1
SN: 4001-(1078)
? 562-15-19241 • • RING,(F3320-52A0 -6 ) 1
SN: (1079)-
? 561-15-59260 • • RING,(F3320-52A0 -6- ) 1
SN: 4001-(1078)
? 195-21-12380 • • O-RING,(F3320-52A0 -14 ) 1
SN: 4001-
? 07000-12055 • • O-RING,(F3320-52A0 -15 ) 1
SN: 4001-
? 232-15-19270 • • RING,(F3320-53A0 -14 ) 1
SN: (1079)-
? 561-15-59210 • • RING,(F3320-53A0 -14- ) 1
SN: 4001-(1078)
? 232-15-19270 • • RING,(F3320-53A0 -14 ) 1
SN: (1079)-
? 561-15-59210 • • RING,(F3320-53A0 -14- ) 1
SN: 4001-(1078)
? 561-15-59220 • • RING,(F3320-53A0 -16 ) 1
SN: 4001-
? 561-15-59220 • • RING,(F3320-53A0 -16 ) 1
SN: 4001-
? 561-15-59230 • • RING,(F3320-53A0 -18 ) 1
SN: 4001-
? 561-15-59230 • • RING,(F3320-53A0 -18 ) 1
SN: 4001-
? 07000-73032 • • O-RING,(F3320-57A0 -12 ) 1
SN: 4001-
? 07000-73038 • • O-RING,(F3320-57A0 -15 ) 1
SN: 4001-
? 07000-73038 • • O-RING,(F3320-57A0 -15 ) 2
SN: 4001-
? 07000-73025 • • O-RING,(F3320-57A0 -19 ) 5
SN: 4001-
? 07000-73022 • • O-RING,(F3320-57A0 -20 ) 5
SN: 4001-
? 195-15-39620 • • O-RING,(F3320-57A0 -24 ) 1
SN: 4001-
? 07000-12055 • • O-RING,(F3320-52A0 -15 ) 2
SN: 4001-
? 07000-05200 • • O-RING,(F3320-58A0 -6 ) 1
SN: 4001-
? 07012-10120 • • SEAL,(F3320-58A0 -14 ) 1
SN: 4001-
? 07000-73025 • • O-RING,(F3320-57A0 -19 ) 1
SN: 4001-
? 281-15-13820 • • SEAL,(F3320-58A0 -19 ) 1
SN: 4001-(1274)
? 07002-03634 • • O-RING,(F3320-58A0 -24 ) 1
SN: 4001-
? 07002-02434 • • O-RING,(F3320-62A0 -6 ) 1
SN: 4001-
? 07000-73035 • • O-RING,(F3320-62A0 -9 ) 3
SN: 4001-
? 561-15-51431 • • GASKET,(F3320-63A0 -3 ) 1
SN: 4001-
? 07000-02120 • • O-RING,(F3320-63A0 -9 ) 2
SN: 4001-
? 07000-73028 • • O-RING,(F3320-63A0 -17 ) 1
SN: 4001-
? 561-15-05432 • SERVICE KIT,TRANSMISSION CONTROL VALVE 1
SN: 4001-
? 170-09-17130 • • O-RING,(F3320-59A0 -5 ) 1
SN: 4001-
? 07000-02080 • • O-RING,(F3320-59A0 -6 ) 1
SN: 4001-
? 07000-72018 • • O-RING,(F3320-59A0 -19 ) 21
SN: 4001-
? 07000-73028 • • O-RING,(F3320-59A0 -32 ) 2
SN: 4001-
? 07002-01823 • • O-RING,(F3320-59A0 -34 ) 1
SN: 4001-
? 561-15-05440 • SERVICE KIT,TRANSMISSION CONNECTOR 1
SN: 4001-
? 07000-72020 • • O-RING,(F3320-57A0 -9 ) 22
SN: 4001-
? 07000-73032 • • O-RING,(F3320-57A0 -11 ) 1
SN: 4001-
? 07000-73045 • • O-RING,(F3320-57A0 -14 ) 7
SN: 4001-
? 561-15-05450 • SERVICE KIT,TRANSMISSION CONNECTOR 1
SN: 4001-
? 07000-12055 • • O-RING,(F3320-57A0 -10 ) 1
SN: 4001-
? 07000-73032 • • O-RING,(F3320-57A0 -13 ) 1
SN: 4001-
? 07000-73038 • • O-RING,(F3320-57A0 -16 ) 1
SN: 4001-
? 195-21-12380 • • O-RING,(F3320-57A0 -23 ) 1
SN: 4001-
? 561-15-05460 • SERVICE KIT,TRANSMISSION ECMV 6
SN: (1275)-
? 561-15-05460 • SERVICE KIT,TRANSMISSION ECMV 7
SN: 4001-(1274)
? 07000-72018 • • O-RING,(F3320-60A0 -15 ) 1
SN: 4001-
? 07000-73025 • • O-RING,(F3320-60A0 -16 ) 1
SN: 4001-
? 07000-73028 • • O-RING,(F3320-60A0 -17 ) 1
SN: 4001-
? 07000-73035 • • O-RING,(F3320-60A0 -18 ) 1
SN: 4001-
? 561-15-05461 • ,TRANSMISSION ECMV 1
SN: (1275)-
? 07000-72018 • • O-RING,(F3320-61A0 -14 ) 1
SN: (1275)-
? 07000-73025 • • O-RING,(F3320-61A0 -15 ) 1
SN: (1275)-
? 07000-73028 • • O-RING,(F3320-61A0 -16 ) 2
SN: (1275)-
? 07000-73035 • • O-RING,(F3320-61A0 -17 ) 1
SN: (1275)-
