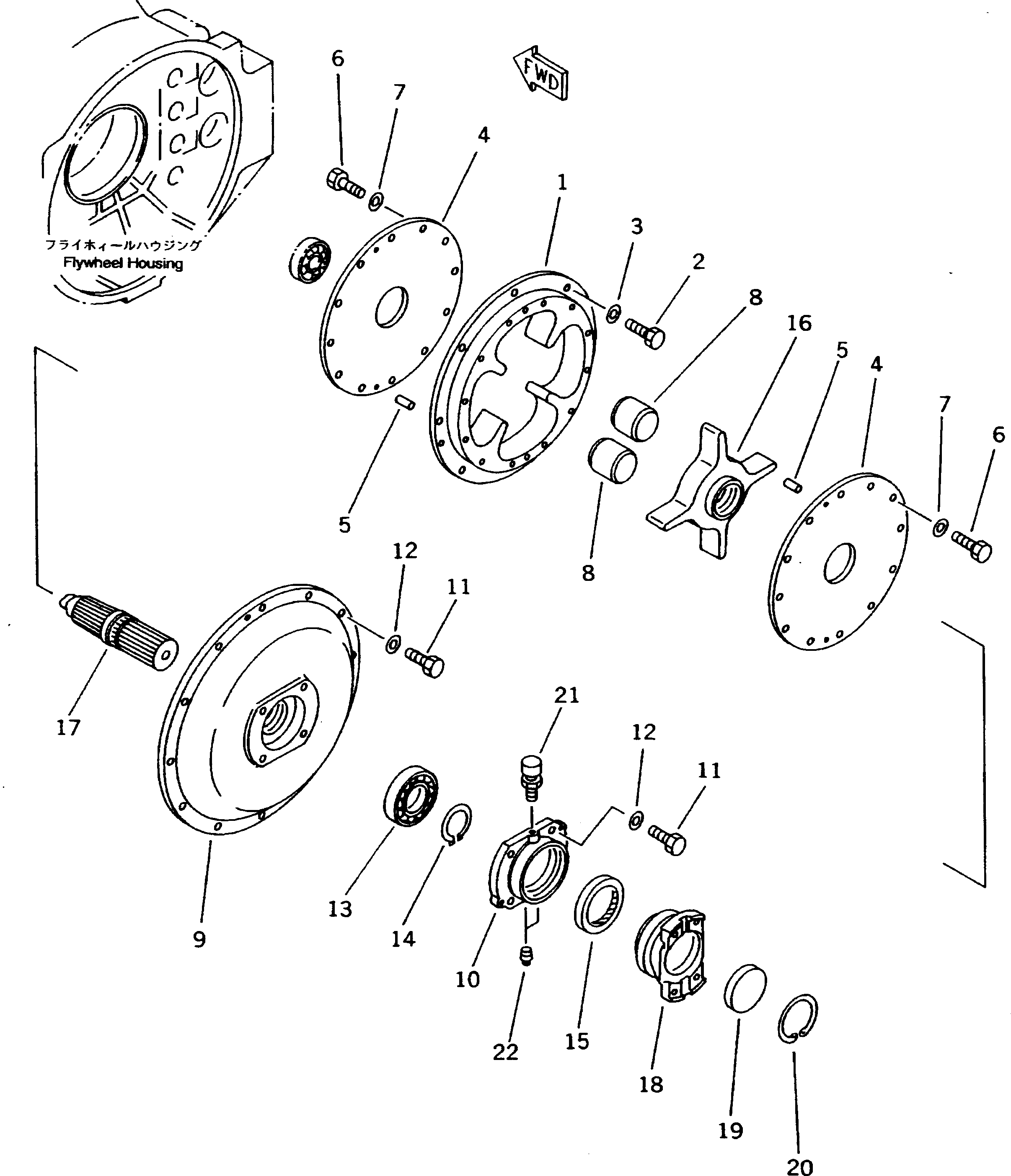

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 566-01-72140 | BODY,OUTER | 1 | SN: 1001- |
|||
| ? | 01010-31230 | BOLT | 8 | SN: 1001- |
|||
| ? | 01643-31232 | WASHER | 8 | SN: 1001- |
|||
| ? | 566-01-22161 | FLANGE | 2 | SN: 1001- |
|||
| ? | 04020-00820 | PIN,DOWEL | 4 | SN: 1001- |
|||
| ? | 01010-61030 | BOLT | 24 | SN: .- |
|||
| ? | ♦01010-31030 | BOLT | 24 | SN: 1001-. |
|||
| ? | 01643-31032 | WASHER | 24 | SN: 1001- |
|||
| ? | 287-01-12180 | CUSHION | 8 | SN: 1001- |
|||
| ? | 566-01-72110 | COVER | 1 | SN: 1001- |
|||
| ? | 566-01-72120 | COVER | 1 | SN: 1001- |
|||
| ? | 01010-31235 | BOLT | 16 | SN: 1001- |
|||
| ? | 01643-31232 | WASHER | 16 | SN: 1001- |
|||
| ? | 06040-06213 | BEARING | 1 | SN: 1001- |
|||
| ? | 04064-06525 | RING,SNAP | 1 | SN: 1001- |
|||
| ? | 566-01-22912 | SEAL | 1 | SN: 1001- |
|||
| ? | 566-01-72150 | BODY,INNER | 1 | SN: 1001- |
|||
| ? | 566-01-72210 | SHAFT | 1 | SN: 1001- |
|||
| ? | 566-01-72720 | COUPLING | 1 | SN: 1001- |
|||
| ? | 569-01-62790 | CAP | 1 | SN: 1001- |
|||
| ? | 04065-09530 | RING,SNAP | 1 | SN: 1001- |
|||
| ? | 07030-01030 | BREATHER | 1 | SN: 1001- |
|||
| ? | (☒07042-70108) | PLUG | 2 | SN: (1001-) |
