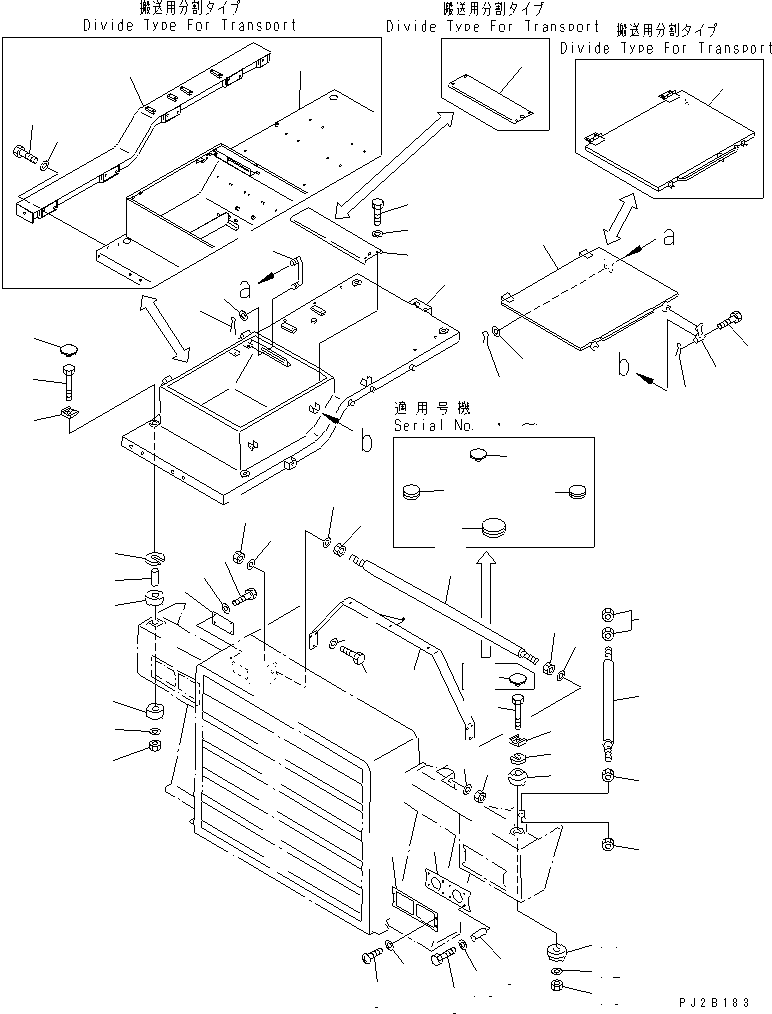

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 566-54-41571 | COVER | 1 | SN: 1001- |
|||
| ? | 01010-81020 | BOLT | 2 | SN: 1001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 1001- |
|||
| ? | 569-54-61850 | COVER | 2 | SN: 1001- |
|||
| ? | 01220-70612 | SCREW | 8 | SN: 1001- |
|||
| ? | 01642-40608 | WASHER | 8 | SN: 1001- |
|||
| ? | 569-54-61840 | PLATE | 2 | SN: 1001- |
|||
| ? | 6130-12-4571 | SPACER | 8 | SN: 1001- |
|||
| ? | 01011-81000 | BOLT | 8 | SN: 1001- |
|||
| ? | 01643-31032 | WASHER | 8 | SN: 1001- |
|||
| ? | 566-54-6A610 | CUSHION | 8 | SN: 1001- |
|||
| ? | 135-01-31170 | WASHER | 8 | SN: 1001- |
|||
| ? | 561-54-61890 | PLATE | 4 | SN: 1001- |
|||
| ? | 01011-81855 | BOLT | 4 | SN: 1001- |
|||
| ? | 01580-11815 | NUT | 4 | SN: 1001- |
|||
| ? | 09414-01053 | CAP | 1 | SN: .- |
|||
| ? | 09414-01053 | CAP | 4 | SN: 1001-. |
|||
| ? | 09415-05016 | CAP | 1 | SN: .- |
|||
| ? | 09415-03620 | CAP | 1 | SN: .- |
|||
| ? | 09415-03614 | CAP | 1 | SN: .- |
|||
| ? | 561-54-61880 | SPACER | 8 | SN: 1001- |
|||
| ? | 566-54-12211 | CUSHION | 8 | SN: 1001- |
|||
| ? | 566-54-21910 | BUSHING | 4 | SN: 1001- |
|||
| ? | 566-54-21920 | PLATE | 8 | SN: 1001- |
|||
| ? | 566-54-21931 | PLATE | 4 | SN: 1001- |
|||
| ? | 01011-82020 | BOLT | 4 | SN: 1001- |
|||
| ? | 01580-12016 | NUT | 4 | SN: 1001- |
|||
| ? | 01643-32060 | WASHER | 4 | SN: 1001- |
|||
| ? | 09414-01053 | CAP | 4 | SN: 1001- |
|||
| ? | 566-54-6A411 | PLATFORM | 1 | SN: 1001- |
|||
| ? | 566-54-6A910 | PLATFORM,(DIVIDE TYPE) | 1 | SN: 2001- |
|||
| ? | 569-54-61425 | COVER | 1 | SN: 1001- |
|||
| ? | 566-54-6A940 | COVER,(DIVIDE TYPE FOR TRANSPORT) | 1 | SN: 2001- |
|||
| ? | 09450-00000 | CATCH | 2 | SN: 1001- |
|||
| ? | 09450-00002 | PIN | 2 | SN: 1001- |
|||
| ? | 04050-11610 | PIN,COTTER | 2 | SN: 1001- |
|||
| ? | 569-54-61471 | COVER | 1 | SN: 1001- |
|||
| ? | 566-54-6A950 | COVER,(DIVIDE TYPE FOR TRANSPORT) | 1 | SN: 2001- |
|||
| ? | 01010-81230 | BOLT | 4 | SN: 1001- |
|||
| ? | 01643-31232 | WASHER | 4 | SN: 1001- |
|||
| ? | 569-54-61480 | ROD | 1 | SN: 1001- |
|||
| ? | 04050-13020 | PIN,COTTER | 2 | SN: 1001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 1001- |
|||
| ? | 566-54-41930 | ROD | 1 | SN: 1001- |
|||
| ? | 566-54-6A331 | STAY | 1 | SN: 1001- |
|||
| ? | 01010-81240 | BOLT | 6 | SN: 2001- |
|||
| ? | 01010-81235 | BOLT | 6 | SN: 1001-1999 |
|||
| ? | 01643-31232 | WASHER | 6 | SN: 1001- |
|||
| ? | 566-54-6A491 | ROD | 1 | SN: 2001- |
|||
| ? | 566-54-6A490 | ROD | 1 | SN: 1001-1999 |
|||
| ? | 01580-13024 | NUT | 8 | SN: 1001- |
|||
| ? | 01643-33080 | WASHER | 8 | SN: 1001- |
|||
| ? | 566-54-6A920 | PLATFORM,(FOR DIVIDE TYPE) | 1 | SN: 2001- |
|||
| ? | 01010-81235 | BOLT,(FOR DIVIDE TYPE) | 9 | SN: 2001- |
|||
| ? | 01643-31232 | WASHER,(FOR DIVIDE TYPE) | 9 | SN: 2001- |
