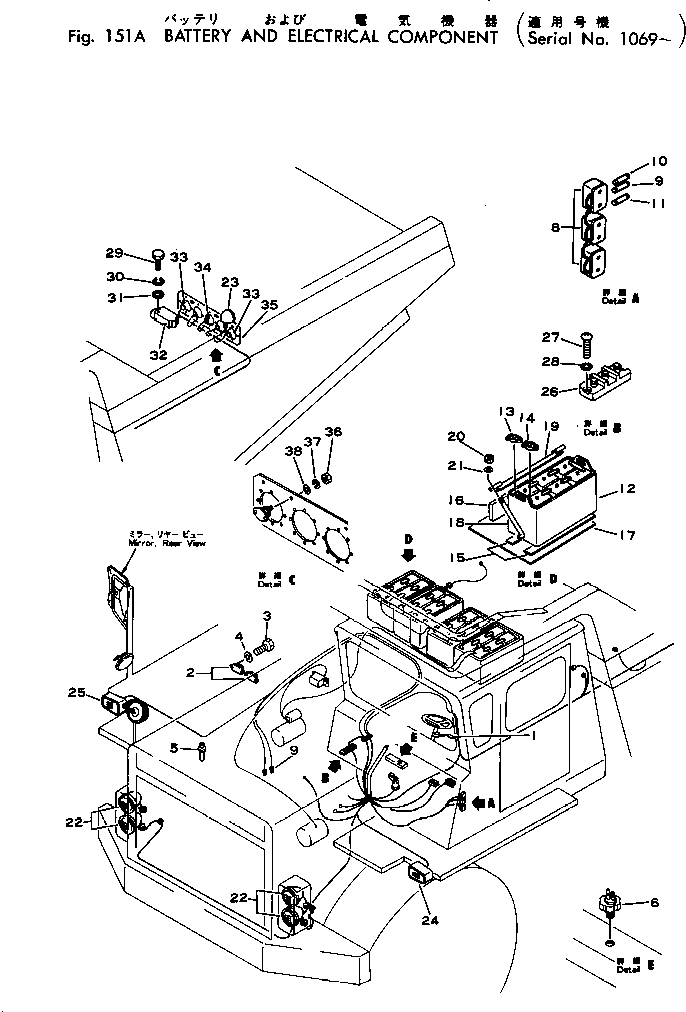

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 566-06-13731 | SWITCH,TURN SIGNAL AND DIMMER | 1 | SN: 1002- |
|||
| ? | 08088-10000 | SWITCH,BATTERY RELAY | 2 | SN: 1002- |
|||
| ? | 01010-50816 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-20825 | WASHER | 4 | SN: 1002- |
|||
| ? | 198-06-11941 | SENSOR,OIL TEMPERATURE | 1 | SN: 1069- |
|||
| ? | 566-06-13871 | SWITCH,PRESSURE | 1 | SN: 1069- |
|||
| ? | 281-35-13650 | NIPPLE | 1 | SN: 1069- |
|||
| ? | 08043-16000 | BOX,FUSE | 3 | SN: 1002- |
|||
| ? | 08040-04000 | FUSE ? 40A | 2 | SN: 1002- |
|||
| ? | 08040-01000 | FUSE ? 10A | 13 | SN: 1002- |
|||
| ? | 08040-00500 | FUSE ? 5A | 2 | SN: 1002- |
|||
| ? | 08000-02220 | BATTERY (190H52) | 4 | SN: 1002- |
|||
| ? | 08000-00000 | TERMINAL ? (+) | 4 | SN: 1002- |
|||
| ? | 08000-00001 | TERMINAL ? (-) | 4 | SN: 1002- |
|||
| ? | 08007-03549 | CUSHION | 8 | SN: 1002- |
|||
| ? | 565-56-13210 | PLATE | 2 | SN: 1002- |
|||
| ? | 566-54-12740 | SEAT | 2 | SN: 1002- |
|||
| ? | 565-56-12440 | ROD | 8 | SN: 1002- |
|||
| ? | 281-06-14131 | CLAMP | 4 | SN: 1002- |
|||
| ? | 01580-11008 | NUT | 16 | SN: 1069- |
|||
| ? | 01642-21016 | WASHER | 8 | SN: 1069- |
|||
| ? | 08120-32440 | LAMP | 4 | SN: 1002- |
|||
| ? | 08113-02440 | • BULB ? 40W | 1 | SN: 1002- |
|||
| ? | 08128-00003 | • HOLDER | 1 | SN: 1002- |
|||
| ? | 08128-22400 | LAMP ASS'Y | 1 | SN: 1069- |
|||
| ? | 08113-02480 | • BULB ? 80W | 1 | SN: 1002- |
|||
| ? | 08128-00003 | • HOLDER | 1 | SN: 1002- |
|||
| ? | 08130-62400 | LAMP ASS'Y,COMBINATION ? L.H. | 1 | SN: 1002- |
|||
| ? | 08105-12420 | • BULB ? 25W | 1 | SN: 1002- |
|||
| ? | 08110-12410 | • BULB ? 12W | 1 | SN: 1002- |
|||
| ? | 08130-60007 | • LENS | 1 | SN: 1002- |
|||
| ? | 08130-60008 | • LENS | 1 | SN: 1002- |
|||
| ? | 08130-82400 | LAMP ASS'Y,COMBINATION ? R.H. | 1 | SN: 1002- |
|||
| ? | 08105-12420 | • BULB ? 25W | 1 | SN: 1002- |
|||
| ? | 08110-12410 | • BULB ? 12W | 1 | SN: 1002- |
|||
| ? | 08130-80007 | • LENS | 1 | SN: 1002- |
|||
| ? | 08130-80008 | • LENS | 1 | SN: 1002- |
|||
| ? | 566-06-13790 | BLOCK | 1 | SN: 1002- |
|||
| ? | 01220-40620 | SCREW | 2 | SN: 1002- |
|||
| ? | 01602-10619 | WASHER | 2 | SN: 1002- |
|||
| ? | 01011-51005 | BOLT | 2 | SN: 1069- |
|||
| ? | 01602-21030 | WASHER | 2 | SN: 1069- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 1069- |
|||
| ? | 566-06-15950 | ALARM | 1 | SN: 1069- |
|||
| ? | 08134-22400 | LAMP ASS'Y,FOOT BRAKE RETARDER | 3 | SN: 1069- |
|||
| ? | 08104-12420 | • BULB ? 25/10W | 1 | SN: 1002- |
|||
| ? | 08102-02403 | • BULB ? 3W | 1 | SN: 1002- |
|||
| ? | 08134-20001 | • LENS | 1 | SN: 1002- |
|||
| ? | 08131-12400 | LAMP ASS'Y,REAR TURN SIGNAL | 2 | SN: 1002- |
|||
| ? | 08105-12420 | • BULB ? 25W | 1 | SN: 1002- |
|||
| ? | 08131-10001 | • LENS | 1 | SN: 1002- |
|||
| ? | 566-06-13363 | BRACKET | 1 | SN: 1069- |
|||
| ? | 01580-11008 | NUT | 2 | SN: 1069- |
|||
| ? | 01602-21030 | WASHER | 2 | SN: 1069- |
|||
| ? | 01643-21032 | WASHER | 2 | SN: 1069- |
