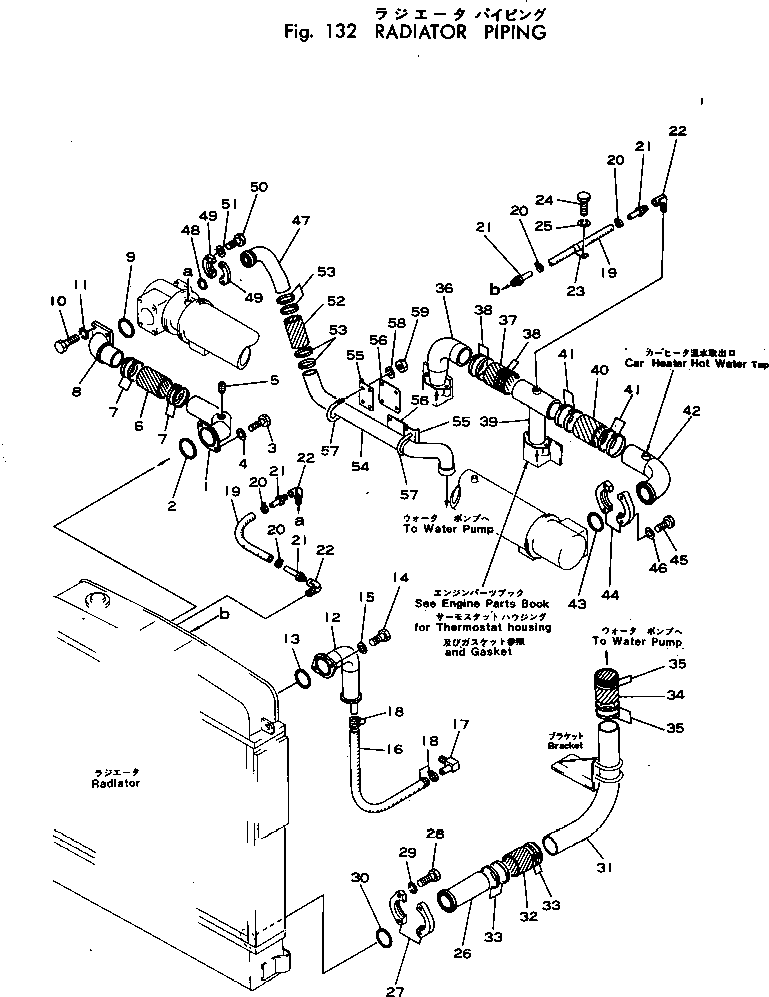

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 569-03-12131 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-02100 | O-RING | 1 | SN: 1002- |
|||
| ? | 01010-51435 | BOLT | 2 | SN: 1002- |
|||
| ? | 01602-21442 | WASHER | 2 | SN: 1002- |
|||
| ? | 02721-10813 | PLUG | 1 | SN: 1002- |
|||
| ? | 07260-28718 | HOSE | 1 | SN: 1002- |
|||
| ? | 566-09-15260 | CLAMP | 2 | SN: 1069- |
|||
| ? | □07281-11159 | CLAMP | 4 | SN: 1002-1068 |
|||
| ? | 568-03-22351 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-02090 | O-RING | 1 | SN: 1002- |
|||
| ? | 01010-51235 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 4 | SN: 1002- |
|||
| ? | 569-03-12140 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-02100 | O-RING | 1 | SN: 1002- |
|||
| ? | 01010-51435 | BOLT | 2 | SN: 1002- |
|||
| ? | 01602-21442 | WASHER | 2 | SN: 1002- |
|||
| ? | 568-03-22430 | HOSE | 1 | SN: 1002- |
|||
| ? | 568-03-22271 | ELBOW | 1 | SN: 1020- |
|||
| ? | □568-03-22270 | ELBOW | 1 | SN: 1002-1019 |
|||
| ? | 07281-10489 | CLAMP | 4 | SN: 1002- |
|||
| ? | 07260-20963 | HOSE | 2 | SN: 1002- |
|||
| ? | 07281-10197 | CLAMP | 8 | SN: 1002- |
|||
| ? | 195-03-11530 | NIPPLE | 4 | SN: 1002- |
|||
| ? | 07323-30200 | ELBOW | 3 | SN: 1002- |
|||
| ? | 08036-01814 | CLIP | 1 | SN: 1002- |
|||
| ? | 01010-51016 | BOLT | 1 | SN: 1002- |
|||
| ? | 01602-21030 | WASHER | 1 | SN: 1002- |
|||
| ? | 569-03-12150 | TUBE | 1 | SN: 1002- |
|||
| ? | 07371-33010 | FLANGE | 2 | SN: 1069- |
|||
| ? | □07371-03010 | FLANGE | 2 | SN: 1002-1068 |
|||
| ? | 07372-21650 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21648 | WASHER | 4 | SN: 1002- |
|||
| ? | 07000-02085 | O-RING | 1 | SN: 1002- |
|||
| ? | 569-03-12162 | TUBE | 1 | SN: 1020- |
|||
| ? | 569-03-12161 | TUBE | 1 | SN: 1002-1019 |
|||
| ? | 07260-28718 | HOSE | 1 | SN: 1002- |
|||
| ? | 566-09-15260 | CLAMP | 4 | SN: 1069- |
|||
| ? | □07281-11159 | CLAMP | 4 | SN: 1002-1068 |
|||
| ? | 569-03-12171 | HOSE | 1 | SN: 1002- |
|||
| ? | 566-09-15260 | CLAMP | 2 | SN: 1069- |
|||
| ? | □07281-11159 | CLAMP | 4 | SN: 1002-1068 |
|||
| ? | 569-03-12210 | TUBE | 1 | SN: 1002- |
|||
| ? | 569-03-12171 | HOSE | 1 | SN: 1002- |
|||
| ? | 566-09-15260 | CLAMP | 2 | SN: 1069- |
|||
| ? | □07281-11159 | CLAMP | 4 | SN: 1002-1068 |
|||
| ? | 569-03-12220 | TUBE | 1 | SN: 1002- |
|||
| ? | 07260-28718 | HOSE | 1 | SN: 1002- |
|||
| ? | 566-09-15260 | CLAMP | 4 | SN: 1069- |
|||
| ? | □07281-11159 | CLAMP | 4 | SN: 1002-1068 |
|||
| ? | 569-03-12230 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-02085 | O-RING | 1 | SN: 1002- |
|||
| ? | 07371-33010 | FLANGE | 2 | SN: 1069- |
|||
| ? | □07371-03010 | FLANGE | 2 | SN: 1002-1068 |
|||
| ? | 07372-21650 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21648 | WASHER | 4 | SN: 1002- |
|||
| ? | 569-03-12240 | TUBE | 1 | SN: 1002- |
|||
| ? | 07000-02060 | O-RING | 1 | SN: 1002- |
|||
| ? | 07371-32076 | FLANGE | 2 | SN: 1069- |
|||
| ? | □07371-22076 | FLANGE | 2 | SN: 1002-1068 |
|||
| ? | 07372-21240 | BOLT | 4 | SN: 1002- |
|||
| ? | 01602-21236 | WASHER | 4 | SN: 1002- |
|||
| ? | 07260-25814 | HOSE | 1 | SN: 1002- |
|||
| ? | 07281-10809 | CLAMP | 4 | SN: 1002- |
|||
| ? | 569-03-12250 | TUBE | 1 | SN: 1002- |
|||
| ? | 569-03-12260 | BRACKET | 2 | SN: 1002- |
|||
| ? | 569-03-12270 | COVER | 2 | SN: 1002- |
|||
| ? | 07283-26155 | CLIP | 2 | SN: 1002- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 1002- |
|||
| ? | 01599-01011 | NUT | 4 | SN: 1002- |
