| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

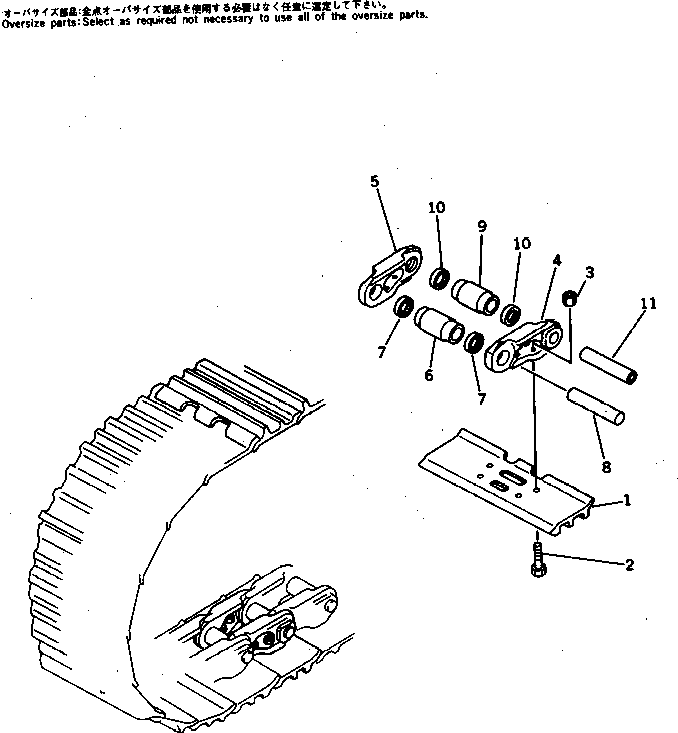

| ? | STANDARD TRACK SHOE | ||||||
| ? | 710MM WIDE | ||||||
| ? | 207-32-02550 | TRACK SHOE ASS'Y | 1 | SN: .-@ |
|||
| ? | □207-32-02502 | TRACK SHOE ASS'Y | 1 | SN: ..-... |
|||
| ? | □207-32-02501 | TRACK SHOE ASS'Y | 1 | SN: 14223-.. |
|||
| ? | □207-32-02500 | TRACK SHOE ASS'Y | 1 | SN: .-14222 |
|||
| ? | 207-32-02003 | TRACK SHOE ASS'Y | 1 | SN: 14057-. |
|||
| ? | □207-32-02002 | TRACK SHOE ASS'Y | 1 | SN: 12001-14056 |
|||
| ? | 207-32-11411 | • SHOE,TRACK | 102 | SN: 14223-... |
|||
| ? | 207-32-11410 | • SHOE,TRACK | 102 | SN: 12001-14222 |
|||
| ? | 207-32-11340 | • BOLT ? SHOE (KIT) | 408 | SN: 12001-... |
|||
| ? | 01803-02026 | • NUT ? SHOE (KIT) | 408 | SN: 12001-... |
|||
| ? | 207-32-00091 | • TRACK LINK ASS'Y | 1 | SN: ..-... |
|||
| ? | □207-32-00090 | • TRACK LINK ASS'Y | 1 | SN: .-.. |
|||
| ? | 207-32-00043 | • TRACK LINK ASS'Y | 1 | SN: 14057-... |
|||
| ? | □207-32-00042 | • TRACK LINK ASS'Y | 1 | SN: 12001-14056 |
|||
| ? | 144-32-11126 | • • LINK,TRACK ? L.H. | 102 | SN: 14057-... |
|||
| ? | □144-32-11125 | • • LINK,TRACK ? L.H. | 102 | SN: 12001-14056 |
|||
| ? | 144-32-11136 | • • LINK,TRACK ? R.H. | 102 | SN: 14057-... |
|||
| ? | □144-32-11135 | • • LINK,TRACK ? R.H. | 102 | SN: 12001-14056 |
|||
| ? | 207-32-51140 | • • BUSHING ? REGULAR | 98 | SN: .-@ |
|||
| ? | 144-32-11142 | • • BUSHING ? REGULAR | 98 | SN: 12001-. |
|||
| ? | 144-32-11240 | • • SEAL,DUST ? REGULAR ? W-TYPE | 196 | SN: 12001-@ |
|||
| ? | 207-32-11152 | • • PIN | 98 | SN: 12001-@ |
|||
| ? | 207-32-51170 | • • BUSHING ? MASTER | 4 | SN: .-@ |
|||
| ? | 144-32-11171 | • • BUSHING | 4 | SN: 12001-. |
|||
| ? | 150-32-11260 | • • SEAL,DUST ? MASTER ? E-TYPE | 8 | SN: 12001-@ |
|||
| ? | 207-32-51190 | • • PIN ? MASTER | 4 | SN: ..-@ |
|||
| ? | □207-32-11191 | • • PIN | 4 | SN: 12001-.. |
|||
| ? | SERVICE KIT | ||||||
| ? | 207-32-05021 | SHOE BOLT AND NUT K. | 1 | SN: 12001-... |
|||
| ? | 207-32-11340 | • BOLT ? SHOE | 30 | SN: 12001-... |
|||
| ? | 01803-02026 | • NUT ? SHOE | 30 | SN: 12001-... |
|||
| ? | OVERSIZE PARTS | ||||||
| ? | OVERSIZE 0.10MM | ||||||
| ? | 144-98-09112 | BUSHING ? REGULAR | A/R | SN: .-@ |
|||
| ? | 144-98-09111 | BUSHING ? REGULAR | A/R | SN: 12001-. |
|||
| ? | 207-98-09011 | PIN | A/R | SN: 12001-@ |
|||
| ? | 144-98-09142 | BUSHING ? MASTER | A/R | SN: .-@ |
|||
| ? | 144-98-09141 | BUSHING ? MASTER | A/R | SN: 12001-. |
|||
| ? | 207-98-09041 | PIN ? MASTER | A/R | SN: 12001-. |
|||
| ? | OVERSIZE 0.18MM | ||||||
| ? | 144-98-09132 | BUSHING ? REGULAR | A/R | SN: .-@ |
|||
| ? | 144-98-09131 | BUSHING ? REGULAR | A/R | SN: 12001-. |
|||
| ? | 207-98-09031 | PIN | A/R | SN: 12001-@ |
|||
| ? | 144-98-09162 | BUSHING ? MASTER | A/R | SN: .-@ |
|||
| ? | 144-98-09161 | BUSHING ? MASTER | A/R | SN: 12001-. |
|||
| ? | 207-98-09061 | PIN | A/R | SN: 12001-@ |
|||
| ? | OPTIONAL TRACK SHOE | ||||||
| ? | 610MM WIDE | ||||||
| ? | 207-32-02560 | TRACK SHOE ASS'Y | 1 | SN: .-@ |
|||
| ? | □207-32-02512 | TRACK SHOE ASS'Y | 1 | SN: ..-... |
|||
| ? | □207-32-02511 | TRACK SHOE ASS'Y | 1 | SN: 14223-.. |
|||
| ? | □207-32-02510 | TRACK SHOE ASS'Y | 1 | SN: .-14222 |
|||
| ? | 207-32-02033 | TRACK SHOE ASS'Y | 1 | SN: 14057-. |
|||
| ? | □207-32-02032 | TRACK SHOE ASS'Y | 1 | SN: 12001-14056 |
|||
| ? | 207-32-11163 | • SHOE,TRACK | 102 | SN: 14223-... |
|||
| ? | 207-32-11162 | • SHOE,TRACK | 102 | SN: 12001-14222 |
|||
| ? | 207-32-11340 | • BOLT ? SHOE (KIT) | 408 | SN: 12001-... |
|||
| ? | 01803-02026 | • NUT ? SHOE (KIT) | 408 | SN: 12001-... |
|||
| ? | 207-32-00091 | • TRACK LINK ASS'Y | 1 | SN: ..-... |
|||
| ? | □207-32-00090 | • TRACK LINK ASS'Y | 1 | SN: .-.. |
|||
| ? | 207-32-00043 | • TRACK LINK ASS'Y | 1 | SN: 14057-. |
|||
| ? | □207-32-00042 | • TRACK LINK ASS'Y | 1 | SN: 12001-14056 |
|||
| ? | 760MM WIDE | ||||||
| ? | 207-32-02570 | TRACK SHOE ASS'Y | 1 | SN: .-@ |
|||
| ? | □207-32-02522 | TRACK SHOE ASS'Y | 1 | SN: ..-... |
|||
| ? | □207-32-02521 | TRACK SHOE ASS'Y | 1 | SN: 14223-.. |
|||
| ? | □207-32-02520 | TRACK SHOE ASS'Y | 1 | SN: .-14222 |
|||
| ? | 207-32-02016 | TRACK SHOE ASS'Y | 1 | SN: 14057-. |
|||
| ? | □207-32-02015 | TRACK SHOE ASS'Y | 1 | SN: 12001-14056 |
|||
| ? | 207-32-12123 | • SHOE,TRACK | 102 | SN: 14223-... |
|||
| ? | 207-32-12122 | • SHOE,TRACK | 102 | SN: 12001-14222 |
|||
| ? | 207-32-11340 | • BOLT ? SHOE (KIT) | 408 | SN: 12001-... |
|||
| ? | 01803-02026 | • NUT ? SHOE (KIT) | 408 | SN: 12001-... |
|||
| ? | 207-32-00091 | • TRACK LINK ASS'Y | 1 | SN: ..-... |
|||
| ? | □207-32-00090 | • TRACK LINK ASS'Y | 1 | SN: .-.. |
|||
| ? | 207-32-00043 | • TRACK LINK ASS'Y | 1 | SN: 14057-. |
|||
| ? | □207-32-00042 | • TRACK LINK ASS'Y | 1 | SN: 12001-14056 |
|||
| ? | 810MM WIDE | ||||||
| ? | 207-32-02580 | TRACK SHOE ASS'Y | 1 | SN: .-@ |
|||
| ? | □207-32-02532 | TRACK SHOE ASS'Y | 1 | SN: ..-... |
|||
| ? | □207-32-02531 | TRACK SHOE ASS'Y | 1 | SN: 14223-.. |
|||
| ? | □207-32-02530 | TRACK SHOE ASS'Y | 1 | SN: .-14222 |
|||
| ? | 207-32-02023 | TRACK SHOE ASS'Y | 1 | SN: 14057-. |
|||
| ? | □207-32-02022 | TRACK SHOE ASS'Y | 1 | SN: 12001-14056 |
|||
| ? | 207-32-11183 | • SHOE,TRACK | 102 | SN: 14223-... |
|||
| ? | 207-32-11182 | • SHOE,TRACK | 102 | SN: 12001-14222 |
|||
| ? | 207-32-11340 | • BOLT ? SHOE (KIT) | 408 | SN: 12001-... |
|||
| ? | 01803-02026 | • NUT ? SHOE (KIT) | 408 | SN: 12001-... |
|||
| ? | 207-32-00091 | • TRACK LINK ASS'Y | 1 | SN: ..-... |
|||
| ? | □207-32-00090 | • TRACK LINK ASS'Y | 1 | SN: .-.. |
|||
| ? | 207-32-00043 | • TRACK LINK ASS'Y | 1 | SN: 14057-. |
|||
| ? | □207-32-00042 | • TRACK LINK ASS'Y | 1 | SN: 12001-14056 |
|||
| ? | 860MM WIDE | ||||||
| ? | 207-32-02590 | TRACK SHOE ASS'Y | 1 | SN: .-@ |
|||
| ? | □207-32-02542 | TRACK SHOE ASS'Y | 1 | SN: ..-... |
|||
| ? | □207-32-02541 | TRACK SHOE ASS'Y | 1 | SN: 14223-.. |
|||
| ? | □207-32-02540 | TRACK SHOE ASS'Y | 1 | SN: .-14222 |
|||
| ? | 207-32-02041 | TRACK SHOE ASS'Y | 1 | SN: 14057-. |
|||
| ? | □207-32-02040 | TRACK SHOE ASS'Y | 1 | SN: 12001-14056 |
|||
| ? | 207-32-11224 | SHOE,TRACK | 102 | SN: 14223-... |
|||
| ? | 207-32-11223 | • SHOE,TRACK | 102 | SN: 12001-14222 |
|||
| ? | 207-32-11340 | • BOLT ? SHOE (KIT) | 408 | SN: 12001-... |
|||
| ? | 01803-02026 | • NUT ? SHOE (KIT) | 408 | SN: 12001-... |
|||
| ? | 207-32-00091 | • TRACK LINK ASS'Y | 1 | SN: ..-... |
|||
| ? | □207-32-00090 | • TRACK LINK ASS'Y | 1 | SN: .-.. |
|||
| ? | 207-32-00043 | • TRACK LINK ASS'Y | 1 | SN: 14057-. |
|||
| ? | □207-32-00042 | • TRACK LINK ASS'Y | 1 | SN: 12001-14056 |
