| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

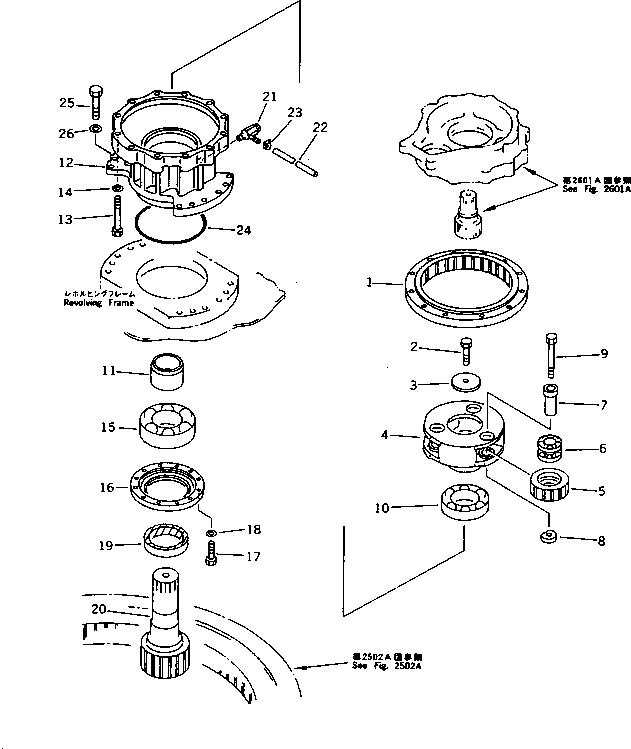

| ? | (20Y-26-00011) | SWING MACHINERY A. | 1 | SN: 36614- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2601A AND 2602A. | ||||||
| ? | 20Y-26-13130 | • GEAR | 1 | SN: 35001- |
|||
| ? | 205-32-51211 | • BOLT ? SHOE | 1 | SN: 36614- |
|||
| ? | 20Y-26-13320 | • PLATE | 1 | SN: 35001- |
|||
| ? | 20Y-26-12271 | • CARRIER | 1 | SN: 35001- |
|||
| ? | 20Y-26-13221 | • GEAR | 3 | SN: 35001- |
|||
| ? | 20Y-26-13231 | • BEARING | 3 | SN: 35001- |
|||
| ? | 20Y-26-13241 | • PIN | 3 | SN: 35001- |
|||
| ? | 20Y-26-12291 | • HOLDER | 3 | SN: 35001- |
|||
| ? | 01011-51200 | • BOLT | 3 | SN: 35001- |
|||
| ? | 06000-22218 | • BEARING | 1 | SN: 35001- |
|||
| ? | 20Y-26-13280 | • SPACER | 1 | SN: 35001- |
|||
| ? | 20Y-26-12541 | • CASE | 1 | SN: 35001- |
|||
| ? | 01011-51620 | • BOLT | 3 | SN: 35001- |
|||
| ? | 01643-31645 | • WASHER | 3 | SN: 35001- |
|||
| ? | 06000-22319 | • BEARING | 1 | SN: 35001- |
|||
| ? | 20Y-26-13291 | • COVER | 1 | SN: 35001- |
|||
| ? | 01010-51045 | • BOLT | 12 | SN: 35001- |
|||
| ? | 01643-31032 | • WASHER | 12 | SN: 35001- |
|||
| ? | 07012-00125 | • SEAL | 1 | SN: 35001- |
|||
| ? | 20Y-26-13271 | • SHAFT | 1 | SN: 35001- |
|||
| ? | 195-03-13241 | VALVE | 1 | SN: 35001- |
|||
| ? | 205-26-71620 | TUBE | 1 | SN: 35001- |
|||
| ? | 07281-00197 | CLAMP | 1 | SN: 35001- |
|||
| ? | 07000-05240 | O-RING | 1 | SN: 35001- |
|||
| ? | 01010-52060 | BOLT | 12 | SN: 35001- |
|||
| ? | 01643-32060 | WASHER | 12 | SN: 35001- |
