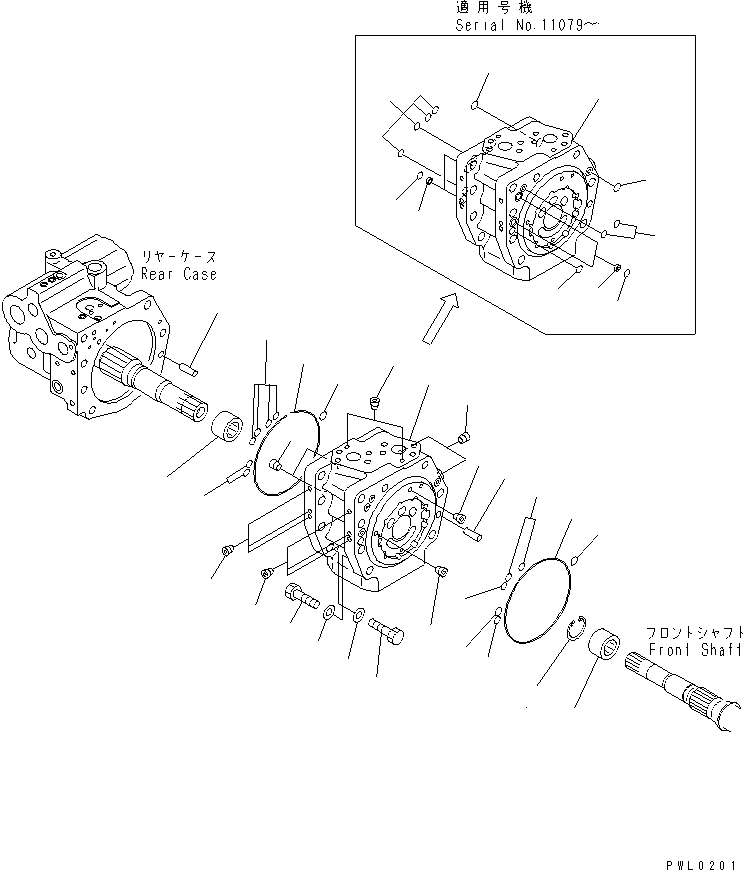

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (708-2L-00413) | PUMP ASS'Y | 1 | SN: 11079- |
|||
| ? | (708-2L-00411) | PUMP ASS'Y | 1 | SN: 11001-11078 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A1 TO Y1600-09A1. | ||||||
| ? | (708-2L-01442) | • PUMP SUB ASS'Y | 1 | SN: 11079- |
|||
| ? | (708-2L-01440) | • PUMP SUB ASS'Y | 1 | SN: 11001-11078 |
|||
| ? | (★708-2L-04420) | • • CAP ASS'Y,END | 1 | SN: 11079- |
|||
| ? | (★708-2L-04320) | • • CAP ASS'Y,END | 1 | SN: 11001-11078 |
|||
| ? | ☆ | • • • CAP,END | 1 | SN: 11079- |
|||
| ? | ☆ | • • • CAP,END | 1 | SN: 11001-11078 |
|||
| ? | ☆ | • • • PLUG | 14 | SN: 11001- |
|||
| ? | (★708-2L-32260) | • • BEARING | 2 | SN: 11001- |
|||
| ? | (★708-2L-22271) | • • RING,SNAP | 1 | SN: 11001- |
|||
| ? | (★07000-A5165) | • • O-RING | 2 | SN: 11001- |
|||
| ? | (★04020-01228) | • • PIN | 2 | SN: 11001- |
|||
| ? | (★07000-B2010) | • • O-RING | 7 | SN: 11079- |
|||
| ? | (★07000-B2010) | • • O-RING | 10 | SN: 11001-11078 |
|||
| ? | (★07000-B2012) | • • O-RING | 2 | SN: 11079- |
|||
| ? | (★07000-B2012) | • • O-RING | 3 | SN: 11001-11078 |
|||
| ? | (★07000-B2014) | • • O-RING | 4 | SN: 11079- |
|||
| ? | (★708-2L-25480) | • • FILTER | 4 | SN: 11079- |
|||
| ? | (★01010-51450) | • • BOLT | 14 | SN: 11001- |
|||
| ? | (★01643-31445) | • • WASHER | 14 | SN: 11001- |
