Содержание Excavators Komatsu PC210LC-7-DA S/N 40001-UP(pc210l2r)

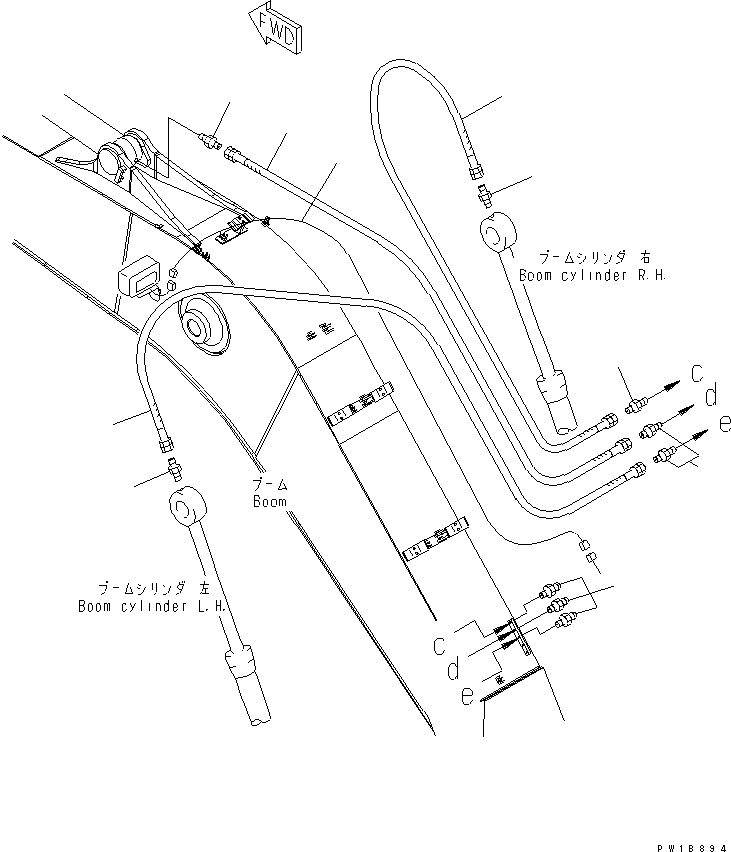

BOOM (HD) (FOR ADDITIONAL PIPING) (LUBRICATING LINE AND WORKING LAMP HARNESS)(#40001-40001)(360070 : T1110-04A0)
Номер на схеме Каталожный номер Название Количество Детали
? 07020-00000 FITTING 3
SN: 40001-@
? 205-70-51390 NIPPLE 3
SN: 40001-@
? 20Y-70-31330 HOSE 2
SN: 40001-@
? 20Y-70-31340 HOSE 1
SN: 40001-@
? 205-70-51390 NIPPLE 3
SN: 40001-@
? 22U-06-21350 WIRE 1
SN: 40001-@

Excavators Komatsu / PC210LC-7-DA S/N 40001-UP(pc210l2r) / BOOM (HD) (FOR ADDITIONAL PIPING) (LUBRICATING LINE AND WORKING LAMP HARNESS)(#40001-40001)(360070 : T1110-04A0)
?
?
?
?
?
?
?
?
?
?
