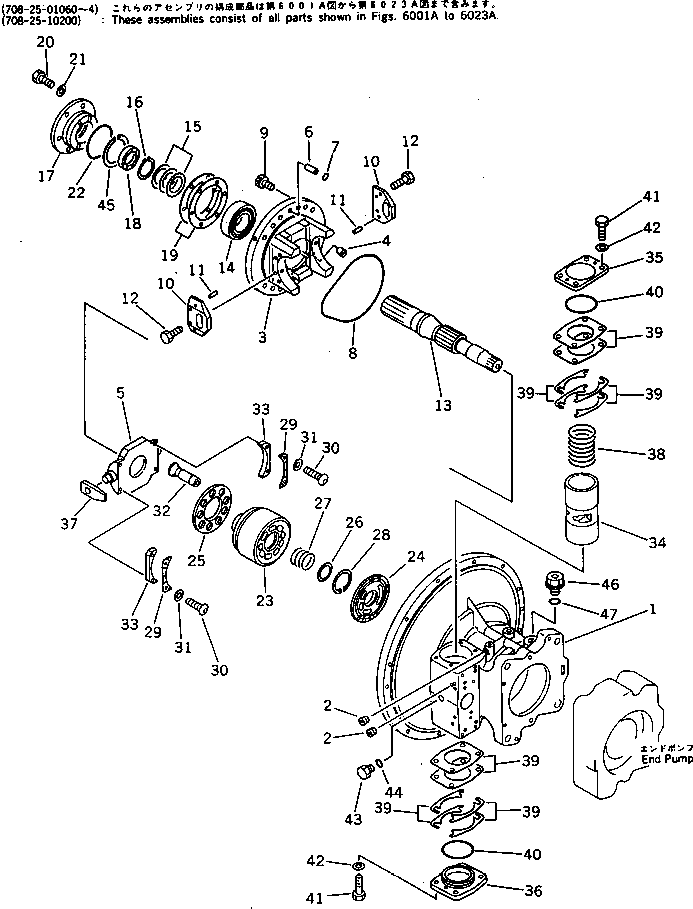

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (708-25-01064) | PUMP ASS'Y | 1 | SN: 20001- |
|||
| ? | (☒708-25-01063) | PUMP ASS'Y | 1 | SN: (..-31559) |
|||
| ? | (☒708-25-01062) | PUMP ASS'Y | 1 | SN: (27791-..) |
|||
| ? | (☒708-25-01061) | PUMP ASS'Y | 1 | SN: (.-27790) |
|||
| ? | (☒708-25-01060) | PUMP ASS'Y | 1 | SN: (26988-.) |
|||
| ? | (☒708-25-10200) | PUMP ASS'Y | 1 | SN: (20001-26987) |
|||
| ? | (708-25-01250) | • PUMP SUB ASS'Y | 1 | SN: 20001- |
|||
| ? | (☒708-25-11101) | • PUMP SUB ASS'Y | 1 | SN: (26988-.) |
|||
| ? | (★708-25-00090) | • • CASE ASS'Y | 1 | SN: ..- |
|||
| ? | ☆ | • • • CASE,FRONT | 1 | SN: 20001- |
|||
| ? | ☆ | • • • PLUG | 11 | SN: 20001- |
|||
| ? | (★708-25-00031) | • • • CRADLE ASS'Y,FRONT | 1 | SN: .- |
|||
| ? | ▩708-25-00030 | • • • CRADLE ASS'Y,FRONT | 1 | SN: 26988-. |
|||
| ? | (708-25-00031{708-25-14121)} | ||||||
| ? | (★708-25-00480) | • • • CRADLE SUB ASS'Y,FRONT | 1 | SN: .- |
|||
| ? | ☆ | • • • • CRADLE,FRONT | 1 | SN: .- |
|||
| ? | ☆ | • • • • PLUG | 1 | SN: 26988- |
|||
| ? | ☆ | • • • CAM,ROCKER | 1 | SN: .- |
|||
| ? | ☆ | • • • CAM,ROCKER | 1 | SN: 20001-. |
|||
| ? | (★708-25-12330) | • • JOINT | 1 | SN: .- |
|||
| ? | (★07000-12015) | • • O-RING | 1 | SN: .- |
|||
| ? | (★708-25-12340) | • • O-RING | 1 | SN: 20001- |
|||
| ? | (★708-25-12390) | • • BOLT | 12 | SN: 20001- |
|||
| ? | (★708-25-12360) | • • PLATE | 2 | SN: 20001- |
|||
| ? | (★04020-00820) | • • PIN,DOWEL | 4 | SN: 20001- |
|||
| ? | (★01010-30816) | • • BOLT | 4 | SN: 20001- |
|||
| ? | (★708-25-12711) | • • SHAFT,FRONT | 1 | SN: 26988- |
|||
| ? | (★708-25-12731) | • • BEARING | 1 | SN: 20001- |
|||
| ? | (★708-25-05010) | • • WASHER KIT | 1 | SN: 20001- |
|||
| ? | ☆ | • • • WASHER ? 2.0MM | 1 | SN: 20001- |
|||
| ? | ☆ | • • • WASHER ? 2.1MM | 1 | SN: 20001- |
|||
| ? | ☆ | • • • WASHER ? 2.2MM | 1 | SN: 20001- |
|||
| ? | (★708-25-12790) | • • RING,SNAP | 1 | SN: 20001- |
|||
| ? | 708-25-12811 | • • HOUSING | 1 | SN: 26988- |
|||
| ? | 708-25-52860 | • • SEAL,OIL | 1 | SN: .- |
|||
| ? | □708-25-12980 | • • SEAL,OIL | 1 | SN: 20001-. |
|||
| ? | (☒706-73-40920) | • • SEAL,OIL | 1 | SN: (20001-28181) |
|||
| ? | (★708-25-05130) | • • SHIM KIT | 1 | SN: 26988- |
|||
| ? | ☆ | • • • SHIM ? 0.1MM | 1 | SN: 26988- |
|||
| ? | ☆ | • • • SHIM ? 0.2MM | 2 | SN: 26988- |
|||
| ? | 01010-30820 | • • BOLT | 4 | SN: 20001- |
|||
| ? | 01643-30823 | • • WASHER | 4 | SN: 20001- |
|||
| ? | 07000-02080 | • • O-RING | 1 | SN: 20001- |
|||
| ? | (★708-25-00010) | • • BLOCK ASS'Y | 1 | SN: 20001- |
|||
| ? | (★708-25-13151) | • • • BLOCK,CYLINDER | 1 | SN: 26988- |
|||
| ? | (★708-25-13210) | • • • PLATE,VALVE | 1 | SN: 20001- |
|||
| ? | (★708-25-13422) | • • RETAINER,SHOE | 1 | SN: 26988- |
|||
| ? | (★708-25-13120) | • • WASHER | 1 | SN: 20001- |
|||
| ? | (★708-25-13130) | • • SPRING | 1 | SN: 20001- |
|||
| ? | (★708-25-13140) | • • RING,SNAP | 1 | SN: 20001- |
|||
| ? | (★708-25-13441) | • • RETAINER | 2 | SN: 20001- |
|||
| ? | (★708-25-13470) | • • SCREW | 4 | SN: 20001- |
|||
| ? | (★01643-30623) | • • WASHER | 4 | SN: 20001- |
|||
| ? | (★708-25-13311) | • • PISTON SUB ASS'Y | 9 | SN: 26988- |
|||
| ? | (★708-25-05060) | • • SPACER KIT | 2 | SN: 26988- |
|||
| ? | ☆ | • • • SPACER ? 11.540MM | 1 | SN: 26988- |
|||
| ? | ☆ | • • • SPACER ? 11.560MM | 1 | SN: 26988- |
|||
| ? | ☆ | • • • SPACER ? 11.575MM | 1 | SN: 26988- |
|||
| ? | (★708-25-14210) | • • PISTON | 1 | SN: 20001- |
|||
| ? | (★708-25-14140) | • • CAP | 1 | SN: 20001- |
|||
| ? | (★708-25-14150) | • • CAP | 1 | SN: 20001- |
|||
| ? | (★708-25-14121) | • • SLIDER | 1 | SN: .- |
|||
| ? | (★708-25-14120) | • • SLIDER | 1 | SN: 20001-. |
|||
| ? | 708-25-14130 | • • SPRING | 1 | SN: 20001- |
|||
| ? | (★708-25-05050) | • • SHIM KIT | 2 | SN: 20001- |
|||
| ? | ☆ | • • • SHIM ? 0.1MM | 2 | SN: 20001- |
|||
| ? | ☆ | • • • SHIM ? 0.1MM | 4 | SN: 20001- |
|||
| ? | ☆ | • • • SHIM ? 0.2MM | 2 | SN: 20001- |
|||
| ? | ☆ | • • • SHIM ? 0.5MM | 3 | SN: 20001- |
|||
| ? | 07000-02065 | • • O-RING | 2 | SN: 20001- |
|||
| ? | 01016-31035 | • • BOLT | 8 | SN: .- |
|||
| ? | 01010-51035 | • • BOLT | 8 | SN: 20001-. |
|||
| ? | 01643-31032 | • • WASHER | 8 | SN: 20001- |
|||
| ? | 720-68-19870 | • • PLUG | 5 | SN: 20001- |
|||
| ? | 07002-01223 | • • O-RING | 1 | SN: 20001- |
|||
| ? | (★708-25-12970) | • • RING,SNAP | 1 | SN: 20001- |
|||
| ? | 07044-02412 | • • PLUG | 1 | SN: 20001- |
|||
| ? | 07002-02434 | • • O-RING | 1 | SN: 20001- |
