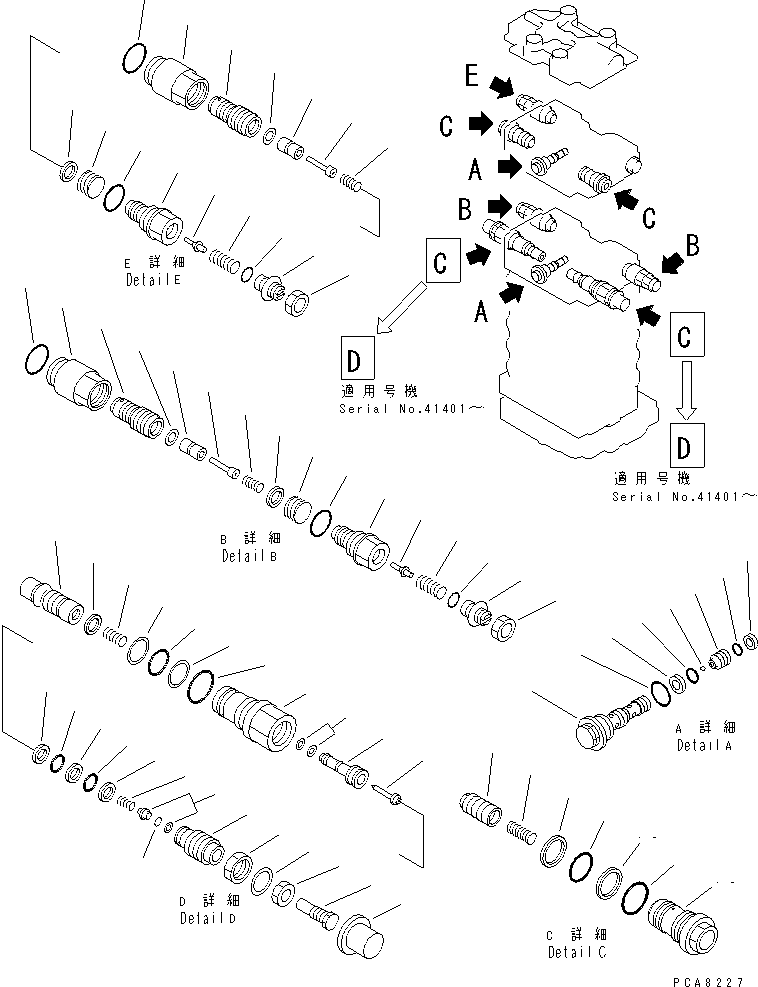

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (723-38-12105) | CONTROL VALVE | 1 | SN: 41401-42553 |
|||
| ? | (723-38-12104) | CONTROL VALVE | 1 | SN: 40913-41400 |
|||
| ? | (723-38-12102) | CONTROL VALVE | 1 | SN: 40001-40912 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1664-41A0 TO Y1664-50A0. | ||||||
| ? | 723-30-66200 | • VALVE ASS'Y | 2 | SN: 40001-42553 |
|||
| ? | ☆ | • • PLUG | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SEAT | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • BALL | 1 | SN: 40001-42553 |
|||
| ? | 07002-12434 | • • O-RING | 1 | SN: 40001-42553 |
|||
| ? | 07000-12012 | • • O-RING | 1 | SN: 40001-42553 |
|||
| ? | 07001-02012 | • • RING | 1 | SN: 40001-42553 |
|||
| ? | 07000-12010 | • • O-RING | 1 | SN: 40001-42553 |
|||
| ? | 07001-02010 | • • RING | 1 | SN: 40001-42553 |
|||
| ? | 723-36-40100 | • VALVE ASS'Y | 2 | SN: 41401-42553 |
|||
| ? | 723-36-40100 | • VALVE ASS'Y | 4 | SN: 40001-41400 |
|||
| ? | ☆ | • • PISTON SUB ASS'Y | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-42553 |
|||
| ? | 700-80-61260 | • • O-RING | 1 | SN: 40001-42553 |
|||
| ? | 700-80-61430 | • • RING | 2 | SN: 40001-42553 |
|||
| ? | 07002-13034 | • • O-RING | 1 | SN: 40001-42553 |
|||
| ? | 723-36-48100 | • VALVE ASS'Y | 2 | SN: 41401-42553 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • VALVE | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • SEAT | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • POPPET | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • PLUG | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • SCREW | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • NUT | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • NUT | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • PLATE | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • CAP | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • SEAL | 2 | SN: 41401-42553 |
|||
| ? | ☆ | • • SEAL | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • O-RING | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • RING | 2 | SN: 41401-42553 |
|||
| ? | ☆ | • • O-RING | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • O-RING | 2 | SN: 41401-42553 |
|||
| ? | ☆ | • • RING | 3 | SN: 41401-42553 |
|||
| ? | ☆ | • • O-RING | 1 | SN: 41401-42553 |
|||
| ? | ☆ | • • RING,BACK-UP | 1 | SN: 41401-42553 |
|||
| ? | 709-70-74600 | • VALVE ASS'Y,SUCTION AND SAFETY | 2 | SN: 40001-42553 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • POPPET | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • PISTON | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • PLUG | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • POPPET | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SCREW | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SEAL | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SEAL | 1 | SN: 40001-42553 |
|||
| ? | 709-25-11390 | • • O-RING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • O-RING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • O-RING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • NUT | 1 | SN: 40001-42553 |
|||
| ? | 709-70-75600 | • VALVE ASS'Y,SUCTION AND SAFETY | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • POPPET | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • PISTON | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • PLUG | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • POPPET | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SCREW | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SEAL | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • SEAL | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • O-RING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • O-RING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • O-RING | 1 | SN: 40001-42553 |
|||
| ? | ☆ | • • NUT | 1 | SN: 40001-42553 |
