| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (723-57-12105) | CONTROL VALVE | 1 | SN: 46925- |
|||
| ? | (723-57-12104) | CONTROL VALVE | 1 | SN: 46808-46924 |
|||
| ? | (723-57-12103) | CONTROL VALVE | 1 | SN: 46721-46807 |
|||
| ? | (723-57-12102) | CONTROL VALVE | 1 | SN: 46604-46720 |
|||
| ? | (723-57-12101) | CONTROL VALVE | 1 | SN: 46458-46603 |
|||
| ? | (723-57-12100) | CONTROL VALVE | 1 | SN: 46059-46457 |
|||
| ? | (723-57-11103) | CONTROL VALVE | 1 | SN: 45786-46058 |
|||
| ? | (723-57-11102) | CONTROL VALVE | 1 | SN: 45685-45785 |
|||
| ? | (723-57-11101) | CONTROL VALVE | 1 | SN: 45179-45684 |
|||
| ? | (723-57-11100) | CONTROL VALVE | 1 | SN: 45000-45178 |
|||

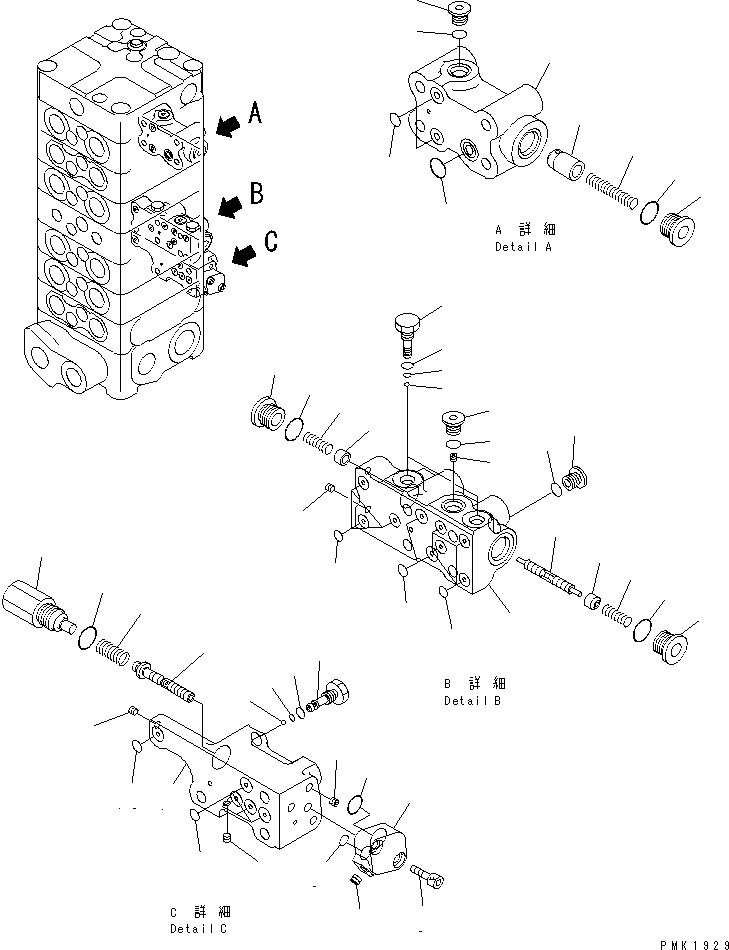

| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1663-01A0 TO Y1663-13A0. | ||||||
| ? | 723-50-51400 | • VALVE ASS'Y | 1 | SN: 46925- |
|||
| ? | 723-50-51300 | • VALVE ASS'Y | 1 | SN: 46458-46924 |
|||
| ? | 723-50-51100 | • VALVE ASS'Y | 1 | SN: 45000-46457 |
|||
| ? | ☆ | • • BLOCK | 1 | SN: 45000- |
|||
| ? | ☆ | • • SPOOL | 1 | SN: 46925- |
|||
| ? | ☆ | • • SPOOL | 1 | SN: 46458-46924 |
|||
| ? | ☆ | • • SPOOL | 1 | SN: 45000-46457 |
|||
| ? | 723-50-51230 | • • SPRING | 1 | SN: 46925- |
|||
| ? | 723-50-51130 | • • SPRING | 1 | SN: 45000-46924 |
|||
| ? | 723-50-51140 | • • PLUG | 1 | SN: 45000- |
|||
| ? | 07002-11623 | • • O-RING | 1 | SN: 45000- |
|||
| ? | 723-50-51150 | • • FLANGE | 1 | SN: 45000- |
|||
| ? | 07000-12011 | • • O-RING | 1 | SN: 45000- |
|||
| ? | 07000-11007 | • • O-RING | 1 | SN: 45000- |
|||
| ? | 01252-60620 | • • BOLT | 2 | SN: 45000- |
|||
| ? | ☆ | • • BALL | 1 | SN: 45000- |
|||
| ? | 723-50-51160 | • • PLUG | 1 | SN: 45000- |
|||
| ? | 07000-11003 | • • O-RING | 1 | SN: 45000- |
|||
| ? | 07002-10823 | • • O-RING | 1 | SN: 45000- |
|||
| ? | ☆ | • • SCREW | 4 | SN: 45000- |
|||
| ? | 07000-11008 | • • O-RING | 5 | SN: 45000- |
|||
| ? | 723-50-52200 | • VALVE ASS'Y | 1 | SN: 46458- |
|||
| ? | 723-50-52100 | • VALVE ASS'Y | 1 | SN: 45000-46457 |
|||
| ? | ☆ | • • BLOCK | 1 | SN: 45000- |
|||
| ? | ☆ | • • SPOOL | 1 | SN: 45000- |
|||
| ? | 723-50-52130 | • • RETAINER | 2 | SN: 45000- |
|||
| ? | 723-50-52150 | • • SPRING | 2 | SN: 46458- |
|||
| ? | 723-50-52140 | • • SPRING | 2 | SN: 45000-46457 |
|||
| ? | 723-56-31630 | • • PLUG | 2 | SN: 45000- |
|||
| ? | 07002-11623 | • • O-RING | 2 | SN: 45000- |
|||
| ? | ☆ | • • BALL | 2 | SN: 45000- |
|||
| ? | 723-50-51160 | • • PLUG | 2 | SN: 45000- |
|||
| ? | 07000-11003 | • • O-RING | 2 | SN: 45000- |
|||
| ? | 07002-10823 | • • O-RING | 2 | SN: 45000- |
|||
| ? | 723-56-41620 | • • ORIFICE | 1 | SN: 45000- |
|||
| ? | 723-11-18190 | • • PLUG | 2 | SN: 45000- |
|||
| ? | 07002-11023 | • • O-RING | 2 | SN: 45000- |
|||
| ? | ☆ | • • SCREW | 2 | SN: 45000- |
|||
| ? | 07000-11008 | • • O-RING | 2 | SN: 45000- |
|||
| ? | 07000-11007 | • • O-RING | 7 | SN: 45000- |
|||
| ? | 723-50-54100 | • VALVE ASS'Y | 1 | SN: 45000- |
|||
| ? | 723-50-54110 | • • BLOCK | 1 | SN: 45000- |
|||
| ? | 723-56-31610 | • • VALVE | 1 | SN: 45000- |
|||
| ? | 723-56-31620 | • • SPRING | 1 | SN: 45000- |
|||
| ? | 723-56-31630 | • • PLUG | 1 | SN: 45000- |
|||
| ? | 07002-11623 | • • O-RING | 1 | SN: 45000- |
|||
| ? | 723-11-18190 | • • PLUG | 1 | SN: 45000- |
|||
| ? | 07002-11023 | • • O-RING | 1 | SN: 45000- |
|||
| ? | 07000-11009 | • • O-RING | 2 | SN: 45000- |
|||
| ? | 708-2L-25490 | • • O-RING | 1 | SN: 45000- |
