| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

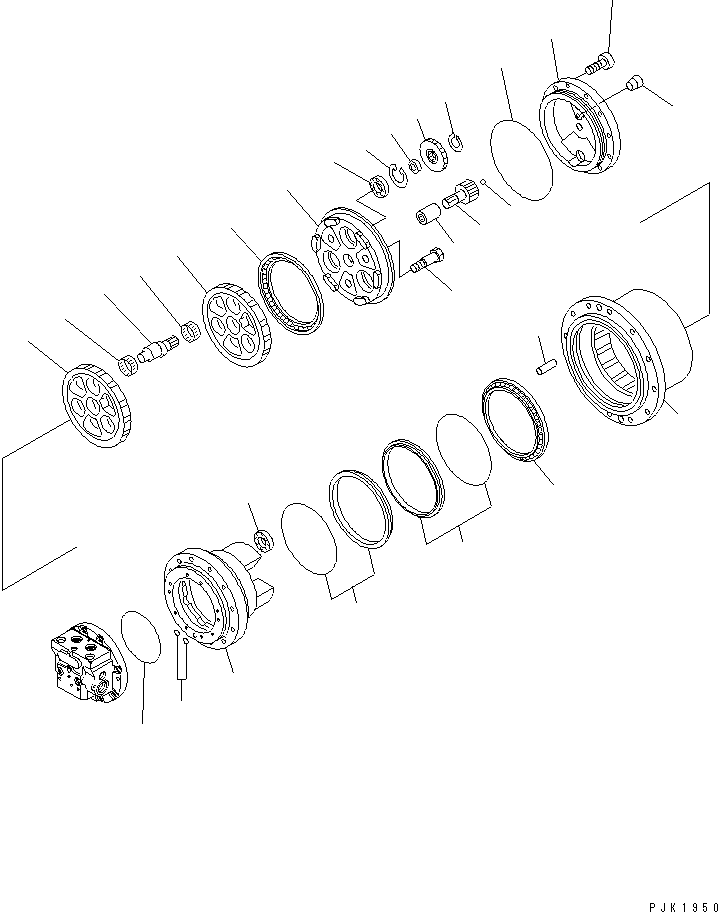

| ? | (203-60-63110) | TRAVEL MOTOR ASS'Y | 2 | SN: 42157-@ |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A0B ? 02A0B AND 03A0B. | ||||||
| ? | TZ270B1000-00 | • FINAL DRIVE ASS'Y | 1 | SN: 42157-@ |
|||
| ? | (★TZ266B1001-00) | • • HUB,MOTOR | 1 | SN: 42157-@ |
|||
| ? | (★TZ263B1102-01) | • • SPINDLE KIT | 1 | SN: 42157-@ |
|||
| ? | (★TZ263B1132-05) | • • • SPINDLE ASS'Y | 1 | SN: 42157-@ |
|||
| ? | ☆ | • • • • SPINDLE | 1 | SN: 42157-@ |
|||
| ? | ☆ | • • • • FLANGE,END | 1 | SN: 42157-@ |
|||
| ? | TZ200B1019-03 | • • • BOLT | 3 | SN: 42157-@ |
|||
| ? | (★TZ263B1104-00) | • • RV GEAR ASS'Y | 1 | SN: 42157-@ |
|||
| ? | (★TZ263B1204-00) | • • • RV GEAR KIT | 1 | SN: 42157-@ |
|||
| ? | ☆ | • • • • GEAR | 1 | SN: 42157-@ |
|||
| ? | ☆ | • • • • GEAR | 1 | SN: 42157-@ |
|||
| ? | (★TZ200B1009-01) | • • • SHAFT | 3 | SN: 42157-@ |
|||
| ? | (★TZ200B1022-00) | • • • BEARING | 6 | SN: 42157-@ |
|||
| ? | (★TZ200B1023-00) | • • • BEARING | 6 | SN: 42157-@ |
|||
| ? | TZ270B1006-00 | • • GEAR | 1 | SN: 42157-@ |
|||
| ? | TZ264B1107-00 | • • SPUR GEAR KIT | 1 | SN: 42157-@ |
|||
| ? | ☆ | • • • SPUR GEAR | 3 | SN: 42157-@ |
|||
| ? | TZ266B1008-00 | • • COVER | 1 | SN: 42157-@ |
|||
| ? | TZ200B1014-01 | • • PIECE | 3 | SN: 42157-@ |
|||
| ? | TZ269B1015-00 | • • COUPLING | 1 | SN: 42157-@ |
|||
| ? | TZ225B1017-00 | • • PIN | 24 | SN: 42157-@ |
|||
| ? | (★TZ150A1020-00) | • • SNAP RING KIT | 3 | SN: 42157-@ |
|||
| ? | (★TZ200B1021-01) | • • BEARING | 2 | SN: 42157-@ |
|||
| ? | 04064-03515 | • • RING,BACK-UP | 3 | SN: 42157-@ |
|||
| ? | 07000-11007 | • • O-RING (K1) | 2 | SN: 42157-@ |
|||
| ? | TZARP568-378-7 | • • O-RING (K1) | 1 | SN: 42157-@ |
|||
| ? | TZJW1516-G37-7 | • • O-RING (K1) | 1 | SN: 42157-@ |
|||
| ? | TZES100-250-A | • • SEAL (K1) | 2 | SN: 42157-@ |
|||
| ? | TZGM1-2 | • • PLUG | 2 | SN: 42157-@ |
|||
| ? | TZJB1176M12-32 | • • BOLT | 10 | SN: 42157-@ |
|||
| ? | 04260-00952 | • • BALL | 1 | SN: 42157-@ |
|||
| ? | SERVICE KIT | ||||||
| ? | TZ276B9000-00 | SERVICE KIT | 1 | SN: 42157-@ |
|||
| ? | 07000-11007 | • O-RING | 2 | SN: 42157-@ |
|||
| ? | TZARP568-378-7 | • O-RING | 1 | SN: 42157-@ |
|||
| ? | TZJW1516-G37-7 | • O-RING | 1 | SN: 42157-@ |
|||
| ? | TZES100-250-A | • SEAL | 2 | SN: 42157-@ |
|||
| ? | TZ15Z-25-42-10 | • SEAL | 1 | SN: 42157-@ |
|||
| ? | TZ266B2035-00 | • O-RING | 1 | SN: 42157-@ |
|||
| ? | TZJB2401-P26-9 | • O-RING | 2 | SN: 42157-@ |
|||
| ? | 07000-12016 | • O-RING | 4 | SN: 42157-@ |
|||
| ? | 07000-12018 | • O-RING | 3 | SN: 42157-@ |
|||
| ? | TZ266B2039-00 | • O-RING | 1 | SN: 42157-@ |
|||
| ? | 07000-12010 | • O-RING | 2 | SN: 42157-@ |
|||
| ? | 07002-02034 | • O-RING | 1 | SN: 42157-@ |
|||
| ? | 07000-12011 | • O-RING | 4 | SN: 42157-@ |
|||
| ? | 07000-12014 | • O-RING | 2 | SN: 42157-@ |
|||
| ? | 07000-12020 | • O-RING | 4 | SN: 42157-@ |
|||
| ? | TZJB2407T2-P14 | • RING | 4 | SN: 42157-@ |
|||
| ? | TZJB2407T3-P20 | • RING | 4 | SN: 42157-@ |
