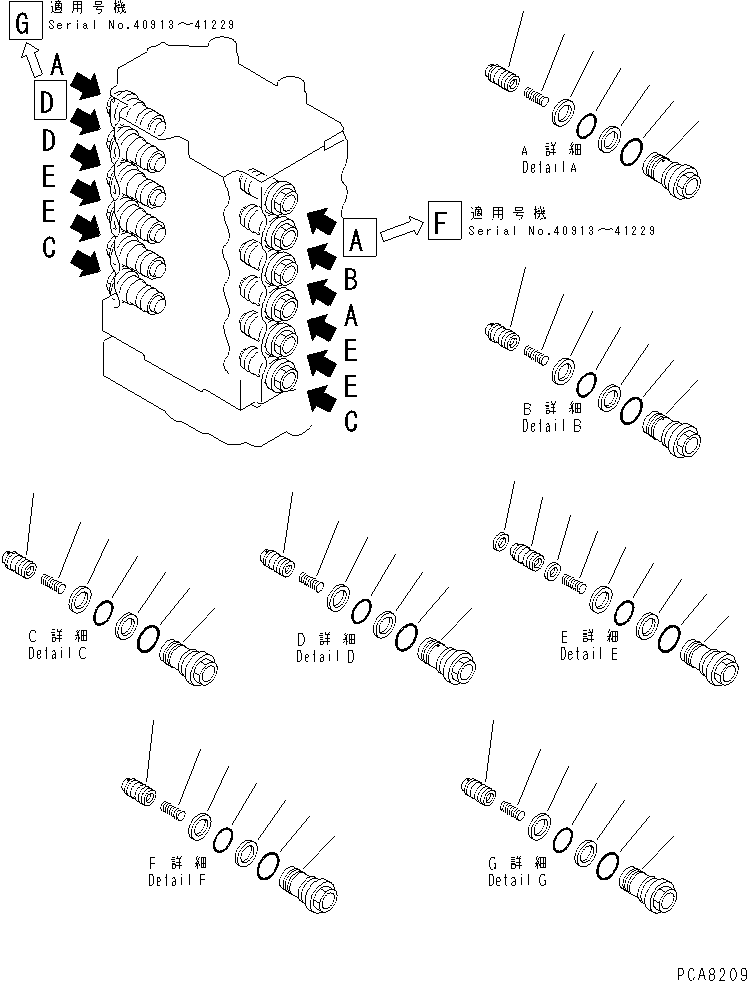

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (723-39-10104) | CONTROL VALVE | 1 | SN: 40913-41229 |
|||
| ? | (723-39-10102) | CONTROL VALVE | 1 | SN: 40339-40912 |
|||
| ? | (723-39-10101) | CONTROL VALVE | 1 | SN: 40001-40338 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1666-01A0 TO Y1666-10A0. | ||||||
| ? | 723-36-40100 | • VALVE ASS'Y | 2 | SN: 40913-41229 |
|||
| ? | 723-36-40100 | • VALVE ASS'Y | 3 | SN: 40001-40912 |
|||
| ? | ☆ | • • PISTON SUB ASS'Y | 1 | SN: 40001-41229 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40001-41229 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-41229 |
|||
| ? | 700-80-61260 | • • O-RING | 1 | SN: 40001-41229 |
|||
| ? | 700-80-61430 | • • RING | 2 | SN: 40001-41229 |
|||
| ? | 07002-13034 | • • O-RING | 1 | SN: 40001-41229 |
|||
| ? | 723-36-40400 | • VALVE ASS'Y | 1 | SN: 40913-41229 |
|||
| ? | ☆ | • • PISTON SUB ASS'Y | 1 | SN: 40913-41229 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40913-41229 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40913-41229 |
|||
| ? | 700-80-61260 | • • O-RING | 1 | SN: 40913-41229 |
|||
| ? | 700-80-61430 | • • RING | 2 | SN: 40913-41229 |
|||
| ? | 07002-13034 | • • O-RING | 1 | SN: 40913-41229 |
|||
| ? | 723-36-41100 | • VALVE ASS'Y | 1 | SN: 40001-41229 |
|||
| ? | ☆ | • • PISTON SUB ASS'Y | 1 | SN: 40001-41229 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40001-41229 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-41229 |
|||
| ? | 700-80-61260 | • • O-RING | 1 | SN: 40001-41229 |
|||
| ? | 700-80-61430 | • • RING | 2 | SN: 40001-41229 |
|||
| ? | 07002-13034 | • • O-RING | 1 | SN: 40001-41229 |
|||
| ? | 723-36-41200 | • VALVE ASS'Y | 2 | SN: 40001-41229 |
|||
| ? | ☆ | • • PISTON SUB ASS'Y | 1 | SN: 40001-41229 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40001-41229 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-41229 |
|||
| ? | 700-80-61260 | • • O-RING | 1 | SN: 40001-41229 |
|||
| ? | 700-80-61430 | • • RING | 2 | SN: 40001-41229 |
|||
| ? | 07002-13034 | • • O-RING | 1 | SN: 40001-41229 |
|||
| ? | 723-36-42100 | • VALVE ASS'Y | 1 | SN: 40913-41229 |
|||
| ? | 723-36-42100 | • VALVE ASS'Y | 2 | SN: 40001-40912 |
|||
| ? | ☆ | • • PISTON SUB ASS'Y | 1 | SN: 40001-41229 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40001-41229 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-41229 |
|||
| ? | 700-80-61260 | • • O-RING | 1 | SN: 40001-41229 |
|||
| ? | 700-80-61430 | • • RING | 2 | SN: 40001-41229 |
|||
| ? | 07002-13034 | • • O-RING | 1 | SN: 40001-41229 |
|||
| ? | 723-36-42400 | • VALVE ASS'Y | 1 | SN: 40913-41229 |
|||
| ? | ☆ | • • PISTON SUB ASS'Y | 1 | SN: 40913-41229 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40913-41229 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40913-41229 |
|||
| ? | 700-80-61260 | • • O-RING | 1 | SN: 40913-41229 |
|||
| ? | 700-80-61430 | • • RING | 2 | SN: 40913-41229 |
|||
| ? | 07002-13034 | • • O-RING | 1 | SN: 40913-41229 |
|||
| ? | 723-36-43301 | • VALVE ASS'Y | 4 | SN: 40001-41229 |
|||
| ? | ☆ | • • PISTON | 1 | SN: 40001-41229 |
|||
| ? | ☆ | • • SEAL | 2 | SN: 40001-41229 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 40001-41229 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 40001-41229 |
|||
| ? | 700-80-61260 | • • O-RING | 1 | SN: 40001-41229 |
|||
| ? | 700-80-61430 | • • RING | 2 | SN: 40001-41229 |
|||
| ? | 07002-13034 | • • O-RING | 1 | SN: 40001-41229 |
