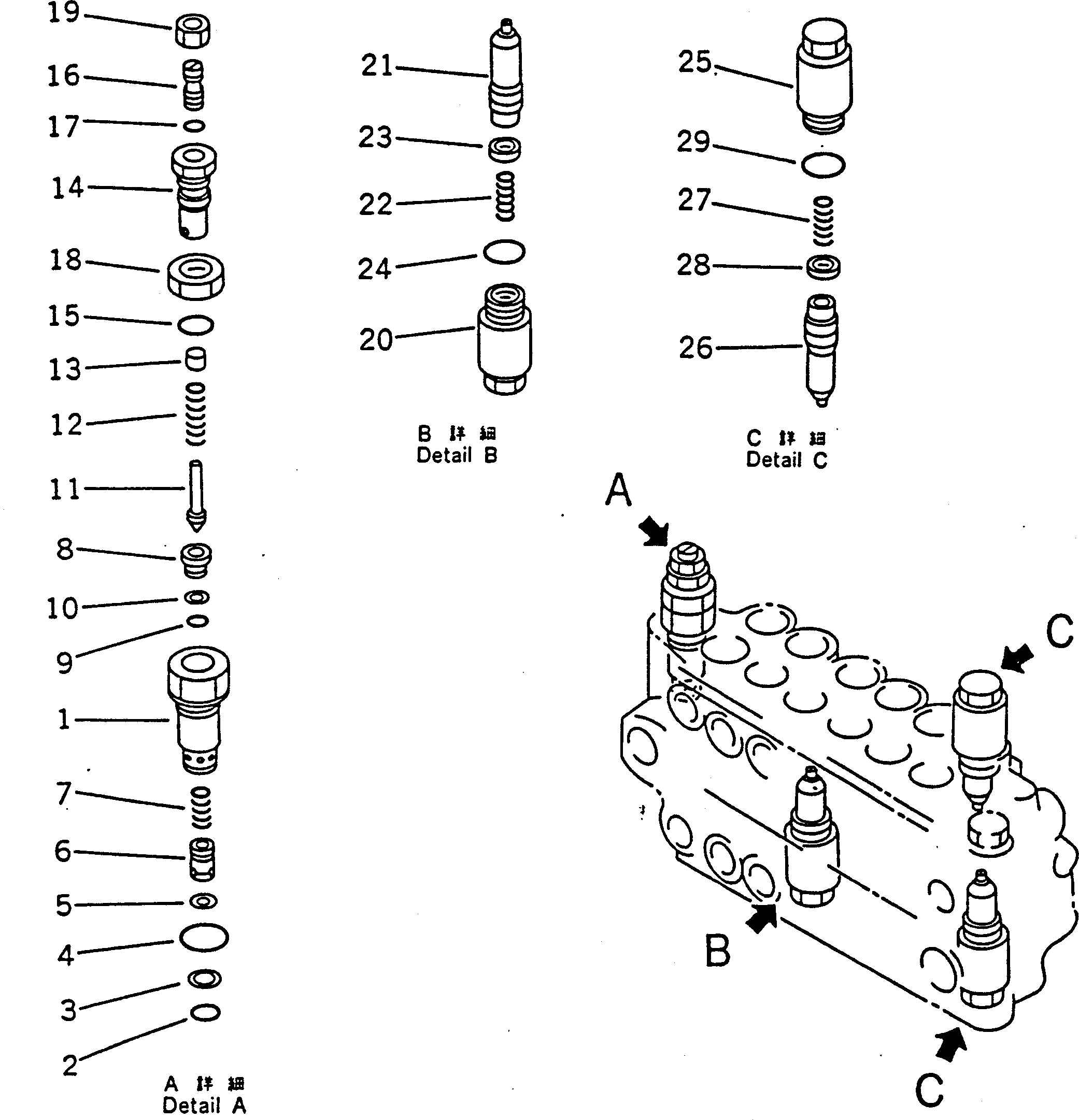

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (700-86-45001) | VALVE ASS'Y,L.H. | 1 | SN: 32402- |
|||
| ? | (700-86-35003) | VALVE ASS'Y,L.H. | 1 | SN: 28001-32401 |
|||
| ? | (☒700-86-35002) | VALVE ASS'Y,L.H. | 1 | SN: (28001-29805) |
|||
| ? | 709-80-52800 | • VALVE ASS'Y,RELIEF | 1 | SN: 28001- |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 28001- |
|||
| ? | 700-13-31161 | • • O-RING | 1 | SN: 28001- |
|||
| ? | 700-80-51190 | • • RING,BACK-UP | 1 | SN: 28001- |
|||
| ? | 07002-03334 | • • O-RING | 1 | SN: 28001- |
|||
| ? | 700-80-51350 | • • RING,SNAP | 1 | SN: 28001- |
|||
| ? | ☆ | • • VALVE | 1 | SN: 28001- |
|||
| ? | 700-80-51390 | • • SPRING | 1 | SN: 28001- |
|||
| ? | 700-80-51740 | • • SEAT | 1 | SN: 28001- |
|||
| ? | 07000-22012 | • • O-RING | 1 | SN: 28001- |
|||
| ? | 07001-02012 | • • RING,BACK-UP | 1 | SN: 28001- |
|||
| ? | 700-80-61190 | • • POPPET | 1 | SN: 28001- |
|||
| ? | 709-20-51231 | • • SPRING | 1 | SN: 28001- |
|||
| ? | 709-90-51260 | • • RETAINER | 1 | SN: 28001- |
|||
| ? | 700-80-51360 | • • HOLDER | 1 | SN: 28001- |
|||
| ? | 07002-02434 | • • O-RING | 1 | SN: 28001- |
|||
| ? | 700-80-51630 | • • SCREW | 1 | SN: 28001- |
|||
| ? | 07000-02011 | • • O-RING | 1 | SN: 28001- |
|||
| ? | 07239-12410 | • • NUT | 1 | SN: 28001- |
|||
| ? | 01582-11411 | • • NUT | 1 | SN: 28001- |
|||
| ? | 709-20-81201 | • VALVE ASS'Y,SUCTION | 1 | SN: 32402- |
|||
| ? | 700-81-82001 | • VALVE ASS'Y,SUCTION | 1 | SN: 29806-32401 |
|||
| ? | □700-81-81000 | • VALVE ASS'Y,SUCTION | 1 | SN: 28001-29805 |
|||
| ? | 709-20-61110 | • • SLEEVE | 1 | SN: 32402- |
|||
| ? | 700-80-62310 | • • SLEEVE | 1 | SN: 28001-32401 |
|||
| ? | ☆ | • • VALVE | 1 | SN: 32402- |
|||
| ? | ☆ | • • VALVE | 1 | SN: 29806-32401 |
|||
| ? | ☆ | • • VALVE | 1 | SN: 28001-29805 |
|||
| ? | 709-20-61160 | • • SPRING | 1 | SN: 32402- |
|||
| ? | 700-80-62250 | • • SPRING | 1 | SN: 28001-32401 |
|||
| ? | ☆ | • • SEAL | 1 | SN: 32402- |
|||
| ? | ☆ | • • SEAL | 1 | SN: 28001-32401 |
|||
| ? | 709-25-11390 | • • O-RING | 1 | SN: 32402- |
|||
| ? | 07002-03034 | • • O-RING | 1 | SN: 28001-32401 |
|||
| ? | 709-20-81201 | • VALVE ASS'Y,SUCTION | 2 | SN: 32402- |
|||
| ? | 700-81-81000 | • VALVE ASS'Y,SUCTION | 2 | SN: 28001-32401 |
|||
| ? | 709-20-61110 | • • SLEEVE | 1 | SN: 32402- |
|||
| ? | 700-80-62310 | • • SLEEVE | 1 | SN: 28001-32401 |
|||
| ? | ☆ | • • VALVE | 1 | SN: 32402- |
|||
| ? | ☆ | • • VALVE | 1 | SN: 28001-32401 |
|||
| ? | 709-20-61160 | • • SPRING | 1 | SN: 32402- |
|||
| ? | 700-80-62250 | • • SPRING | 1 | SN: 28001-32401 |
|||
| ? | ☆ | • • SEAL | 1 | SN: 32402- |
|||
| ? | ☆ | • • SEAL | 1 | SN: 28001-32401 |
|||
| ? | 709-25-11390 | • • O-RING | 1 | SN: 32402- |
|||
| ? | 07002-03034 | • • O-RING | 1 | SN: 28001-32401 |
