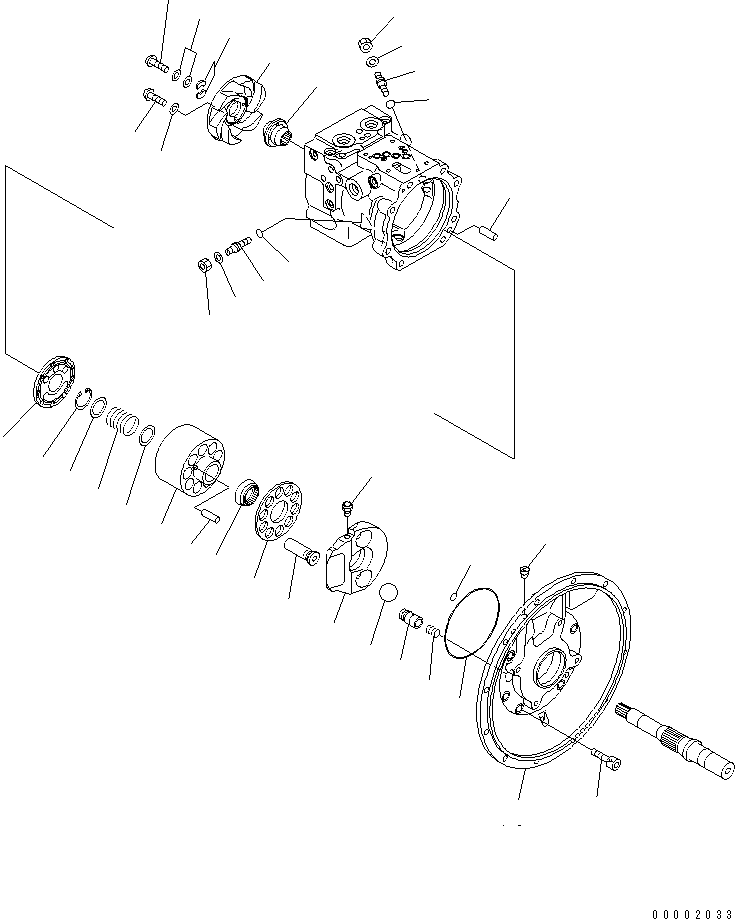

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (708-3T-00116) | PUMP ASS'Y | 1 | SN: 4767-5500 |
|||
| ? | (708-3T-00115) | PUMP ASS'Y | 1 | SN: 4605-4766 |
|||
| ? | (708-3T-00114) | PUMP ASS'Y | 1 | SN: 4001-4604 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-04A0. | ||||||
| ? | (708-3T-01116) | • PUMP SUB ASS'Y | 1 | SN: 4767-5500 |
|||
| ? | (708-3T-01115) | • PUMP SUB ASS'Y | 1 | SN: 4605-4766 |
|||
| ? | (708-3T-01114) | • PUMP SUB ASS'Y | 1 | SN: 4001-4604 |
|||
| ? | 708-3T-04130 | • • CYLINDER BLOCK ASS'Y | 1 | SN: 4001-5500 |
|||
| ? | ☆ | • • • BLOCK,CYLINDER | 1 | SN: 4001-5500 |
|||
| ? | ☆ | • • • PLATE,VALVE | 1 | SN: 4001-5500 |
|||
| ? | (★708-1W-23130) | • • SEAT | 2 | SN: 4001-@ |
|||
| ? | (★708-3T-13150) | • • SPRING | 1 | SN: 4001-@ |
|||
| ? | (★04065-04218) | • • RING,SNAP | 1 | SN: 4001-@ |
|||
| ? | (★708-3T-13351) | • • GUIDE,RETAINER | 1 | SN: 4001-@ |
|||
| ? | (★708-3T-13360) | • • PIN | 3 | SN: 4001-@ |
|||
| ? | (★708-3T-13340) | • • RETAINER,SHOE | 1 | SN: 4001-@ |
|||
| ? | (★708-3T-13312) | • • PISTON SUB ASS'Y | 10 | SN: 4605-@ |
|||
| ? | (★708-3T-13311) | • • PISTON SUB ASS'Y | 10 | SN: 4001-4604 |
|||
| ? | 708-3T-04111 | • • FLANGE ASS'Y | 1 | SN: 4001-@ |
|||
| ? | ☆ | • • • FLANGE | 1 | SN: 4001-@ |
|||
| ? | ☆ | • • • PLUG | 1 | SN: 4001-@ |
|||
| ? | (★708-3T-13421) | • • BALL | 2 | SN: 4001-@ |
|||
| ? | (★708-3T-13412) | • • CAM,ROCKER | 1 | SN: 4767-@ |
|||
| ? | (★708-3T-13411) | • • CAM,ROCKER | 1 | SN: 4001-4766 |
|||
| ? | (★708-3T-13451) | • • STUD,BALL | 1 | SN: 4001-@ |
|||
| ? | (★04020-01024) | • • PIN | 1 | SN: 4001-@ |
|||
| ? | 01252-61235 | • • BOLT | 8 | SN: 4001-@ |
|||
| ? | 07000-B2012 | • • O-RING | 1 | SN: 4001-@ |
|||
| ? | 708-7T-51210 | • • O-RING | 1 | SN: 4001-@ |
|||
| ? | 708-3T-14222 | • • PLUG | 2 | SN: 4001-@ |
|||
| ? | 07000-12010 | • • O-RING | 2 | SN: 4001-@ |
|||
| ? | 01643-51232 | • • WASHER | 2 | SN: 4001-@ |
|||
| ? | 01582-11210 | • • NUT | 2 | SN: 4001-@ |
|||
| ? | (★708-3T-14114) | • • PISTON SUB ASS'Y | 2 | SN: 4767-@ |
|||
| ? | (★708-3T-14113) | • • PISTON SUB ASS'Y | 2 | SN: 4001-4766 |
|||
| ? | (★708-3T-14120) | • • SPRING | 2 | SN: 4001-@ |
|||
| ? | (★708-3T-12150) | • • IMPELLER | 1 | SN: 4001-5500 |
|||
| ? | (★708-3T-12160) | • • COUPLING | 1 | SN: 4001-5500 |
|||
| ? | (★708-3T-12410) | • • SCREW | 4 | SN: 4001-5500 |
|||
| ? | (★01640-20508) | • • WASHER | 4 | SN: 4001-5500 |
|||
| ? | (★708-3T-12420) | • • PLATE | 2 | SN: 4001-5500 |
|||
| ? | (★708-3T-05110) | • • SHIM KIT | 1 | SN: 4001-5500 |
|||
| ? | ☆ | • • • SHIM ? 0.1MM | 3 | SN: 4001-5500 |
|||
| ? | ☆ | • • • SHIM ? 0.15MM | 2 | SN: 4001-5500 |
|||
| ? | ☆ | • • • SHIM ? 0.2MM | 2 | SN: 4001-5500 |
|||
| ? | ☆ | • • • SHIM ? 0.5MM | 2 | SN: 4001-5500 |
|||
| ? | (★708-23-12350) | • • SCREW | 1 | SN: 4001-5500 |
