| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

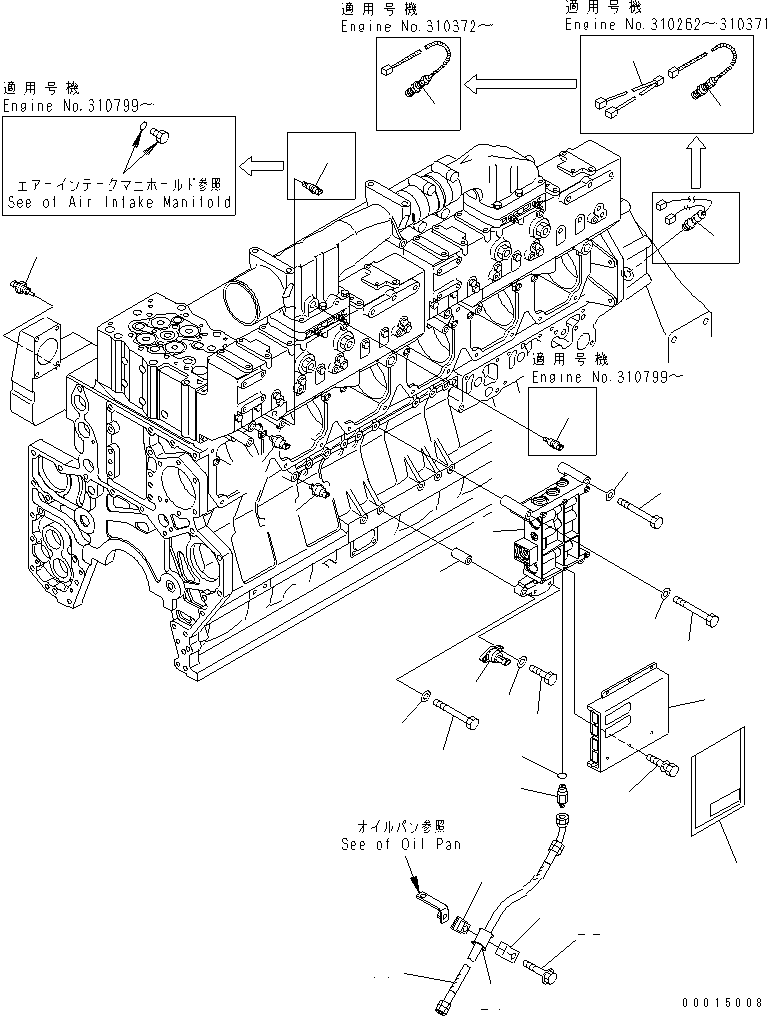

| ? | (6560-41-3100) | CONTROL VALVE ASS'Y,(SEE FIG.A4710-B6F4) | 1 | SN: 310169- |
|||
| ? | 6560-61-1602 | CONTROLLER ASS'Y | 1 | SN: 310764- |
|||
| ? | □6560-61-1601 | CONTROLLER ASS'Y | 1 | SN: 310528-310763 |
|||
| ? | □6560-61-1600 | CONTROLLER ASS'Y | 1 | SN: 310169-310527 |
|||
| ? | 6216-84-9320 | SCREW | 6 | SN: 310169- |
|||
| ? | 6560-61-2110 | SENSOR,REVOLUTION | 1 | SN: 310262- |
|||
| ? | ▩6216-84-9480 | SENSOR,REVOLUTION | 1 | SN: 310169-310261 |
|||
| ? | (6560-61-2110{6560-61-9190)} | ||||||
| ? | 6560-61-9190 | HARNESS | 1 | SN: 310262-310371 |
|||
| ? | 6216-84-9140 | SENSOR,COOLANT TEMPERATURE | 1 | SN: 310169- |
|||
| ? | 6216-84-9330 | SENSOR,AMBIENT AIR PRESSURE | 1 | SN: 310169- |
|||
| ? | 02010-70425 | BOLT | 2 | SN: 310169- |
|||
| ? | 01640-20610 | WASHER | 2 | SN: 310169- |
|||
| ? | 6742-01-5144 | SENSOR,INTAKE AIR TEMPERATURE | 1 | SN: 310169- |
|||
| ? | 6560-61-7101 | SENSOR,BOOST PRESSURE | 1 | SN: 310169- |
|||
| ? | 6216-84-9110 | SENSOR,OIL PRESSURE | 1 | SN: 310169- |
|||
| ? | 01011-81000 | BOLT | 2 | SN: 310169- |
|||
| ? | 01010-81085 | BOLT | 2 | SN: 310169- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 310169- |
|||
| ? | 6152-21-6590 | SPACER | 2 | SN: 310169- |
|||
| ? | 6240-71-5980 | HOSE | 1 | SN: 310169- |
|||
| ? | 6240-71-5990 | NIPPLE | 1 | SN: 310169- |
|||
| ? | 07002-21423 | O-RING | 1 | SN: 310169- |
|||
| ? | 07094-10315 | CLAMP | 2 | SN: 310169- |
|||
| ? | 07095-00316 | CUSHION | 1 | SN: 310169- |
|||
| ? | 01435-01055 | BOLT | 1 | SN: 310169- |
|||
| ? | 6560-01-1551 | DISC,PROGRAM | 1 | SN: 310169- |
|||
| ? | (☒6560-01-1550) | DISC,PROGRAM | 1 | SN: (310169-310763) |
