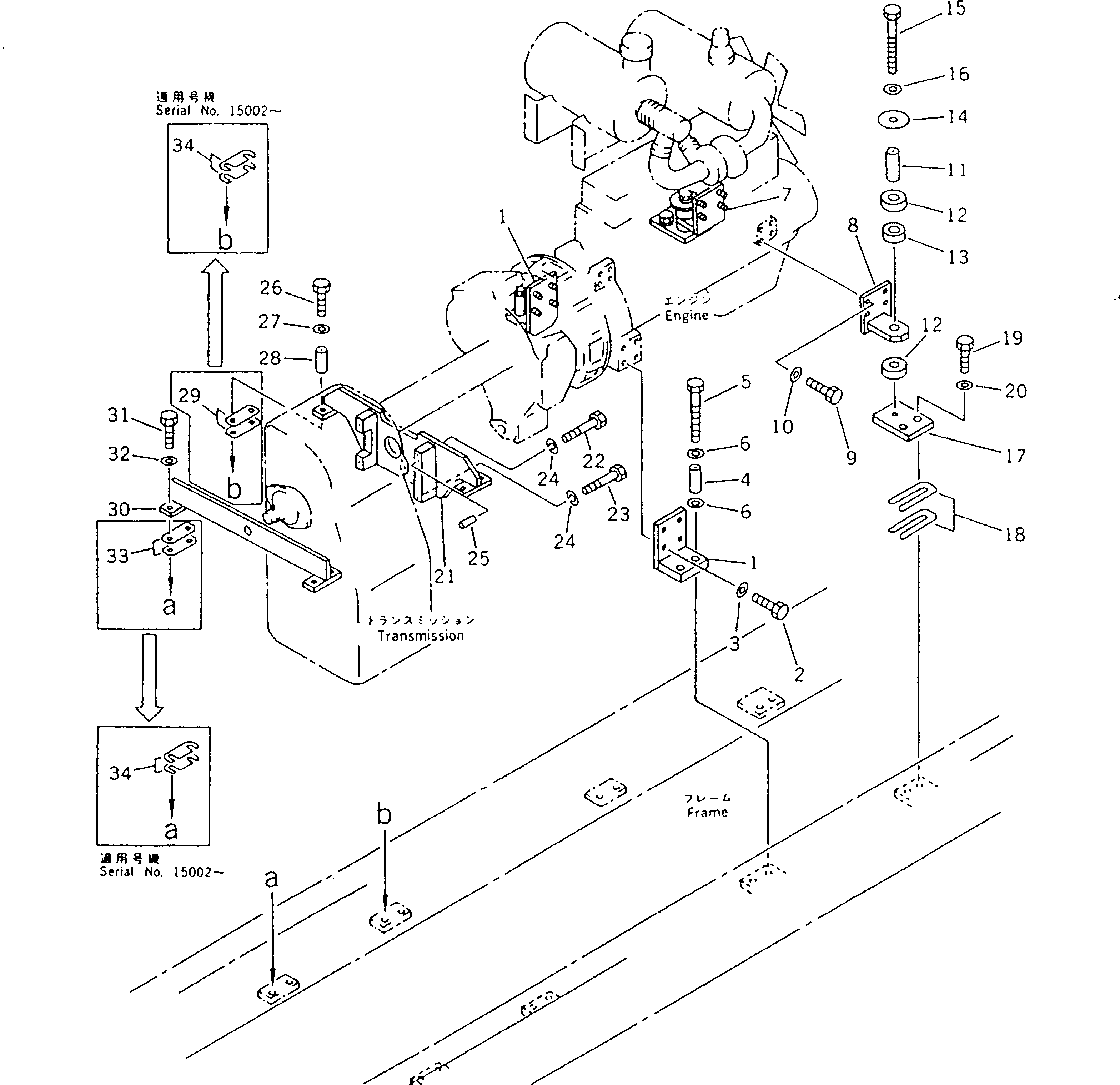

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 23A-01-12310 | BRACKET | 2 | SN: 15001- |
|||
| ? | 01010-51240 | BOLT | 8 | SN: 15001- |
|||
| ? | 01643-31232 | WASHER | 8 | SN: 15001- |
|||
| ? | 23A-01-11250 | SPACER | 4 | SN: 15001- |
|||
| ? | 01011-51615 | BOLT | 4 | SN: 15001- |
|||
| ? | 01643-31645 | WASHER | 8 | SN: 15001- |
|||
| ? | 23A-01-12220 | BRACKET | 1 | SN: 15001- |
|||
| ? | 23A-01-12230 | BRACKET | 1 | SN: 15001- |
|||
| ? | 01010-51035 | BOLT | 8 | SN: 15001- |
|||
| ? | 01643-31032 | WASHER | 8 | SN: 15001- |
|||
| ? | 23A-01-11250 | SPACER | 2 | SN: 15001- |
|||
| ? | 23A-01-11210 | CUSHION | 4 | SN: 15001- |
|||
| ? | 23B-01-11240 | CUSHION | 2 | SN: 15001- |
|||
| ? | 23A-01-11260 | PLATE | 2 | SN: 15001- |
|||
| ? | 01010-51695 | BOLT | 2 | SN: 15001- |
|||
| ? | 01643-31645 | WASHER | 2 | SN: 15001- |
|||
| ? | 23A-01-12240 | PLATE | 2 | SN: 15001- |
|||
| ? | 235-01-11340 | SHIM¤ 1.0MM | 6 | SN: 15001- |
|||
| ? | 01010-51660 | BOLT | 4 | SN: 15001- |
|||
| ? | 01643-31645 | WASHER | 4 | SN: 15001- |
|||
| ? | 23A-14-11120 | SUPPORT | 1 | SN: 15001- |
|||
| ? | 01011-51000 | BOLT | 1 | SN: 15001- |
|||
| ? | 01010-51095 | BOLT | 3 | SN: 15001- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 15001- |
|||
| ? | 04020-01228 | PIN,DOWEL | 2 | SN: 15001- |
|||
| ? | 01011-51605 | BOLT | 4 | SN: 15001- |
|||
| ? | 01643-31645 | WASHER | 4 | SN: 15001- |
|||
| ? | 23A-01-11250 | SPACER | 4 | SN: 15001- |
|||
| ? | 23A-01-11270 | SHIM¤ 1.0MM | 6 | SN: 15001-15001 |
|||
| ? | 23A-14-11110 | SUPPORT | 1 | SN: 15001- |
|||
| ? | 01010-51645 | BOLT | 4 | SN: 15001- |
|||
| ? | 01643-31645 | WASHER | 4 | SN: 15001- |
|||
| ? | 23A-01-11270 | SHIM¤ 1.0MM | 6 | SN: 15001-15001 |
|||
| ? | 23A-01-00120 | SHIM ASS'Y | 4 | SN: 15002- |
|||
| ? | ☆ | • SHIM¤ 0.2MM | 3 | SN: 15002- |
|||
| ? | ☆ | • SHIM¤ 0.5MM | 2 | SN: 15002- |
|||
| ? | ☆ | • SHIM¤ 1.0MM | 1 | SN: 15002- |
