| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 23A-70-01031 | GEAR ASS'Y | 1 | SN: 15001-16060 |
|||
| ? | (☒23A-70-01030) | GEAR ASS'Y | 1 | SN: (15001-15077) |
|||

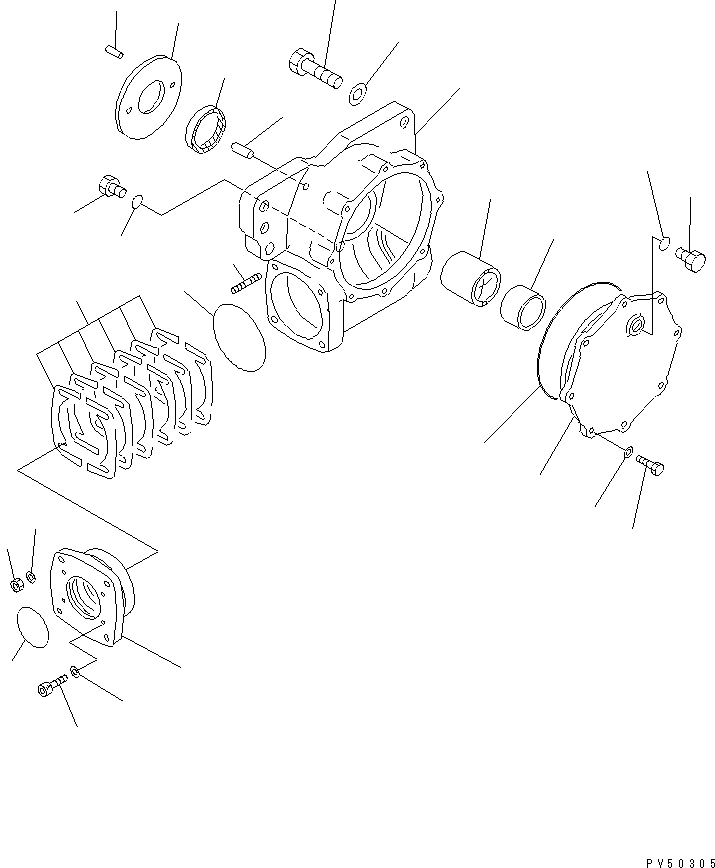

| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.7031 AND 7033. | ||||||
| ? | 23A-70-15110 | • CASE | 1 | SN: 15001-@ |
|||
| ? | 23A-70-15120 | • COVER | 1 | SN: 15001-@ |
|||
| ? | 01010-51030 | • BOLT | 8 | SN: 15001-@ |
|||
| ? | 01643-31032 | • WASHER | 8 | SN: 15001-@ |
|||
| ? | 07000-15220 | • O-RING (K10) | 1 | SN: 15001-@ |
|||
| ? | 07040-13016 | • PLUG | 1 | SN: 15001-@ |
|||
| ? | 07002-13034 | • O-RING (K10) | 1 | SN: 15001-@ |
|||
| ? | 07040-11812 | • PLUG | 1 | SN: 15001-@ |
|||
| ? | 07002-11823 | • O-RING (K10) | 1 | SN: 15001-@ |
|||
| ? | 23A-70-15160 | • BUSHING | 1 | SN: 15001-@ |
|||
| ? | 07012-00062 | • SEAL,OIL (K10) | 1 | SN: 15001-@ |
|||
| ? | 23A-70-15150 | • BUSHING | 1 | SN: 15001-@ |
|||
| ? | 23A-70-15180 | • PLATE | 1 | SN: 15001-@ |
|||
| ? | 04020-01024 | • PIN,DOWEL | 2 | SN: 15001-@ |
|||
| ? | 07000-12130 | • O-RING (K10) | 1 | SN: 15001-@ |
|||
| ? | 23A-70-15210 | • HOUSING | 1 | SN: 15001-@ |
|||
| ? | 233-70-00260 | • SHIM ASS'Y | 1 | SN: 15001-16060 |
|||
| ? | ☆ | • • SHIM¤ 0.1MM | 8 | SN: 15001-@ |
|||
| ? | ☆ | • • SHIM¤ 0.2MM | 12 | SN: 15001-@ |
|||
| ? | ☆ | • • SHIM¤ 1.0MM | 4 | SN: 15001-@ |
|||
| ? | 23B-70-16250 | • O-RING (K10) | 1 | SN: 15001-@ |
|||
| ? | 01252-41035 | • BOLT | 4 | SN: 15001-@ |
|||
| ? | 01643-31032 | • WASHER | 4 | SN: 15001-@ |
|||
| ? | 01140-81235 | • STUD | 4 | SN: 15001-@ |
|||
| ? | 01582-11210 | • NUT | 4 | SN: 15001-@ |
|||
| ? | 01643-31232 | • WASHER | 4 | SN: 15001-@ |
|||
| ? | 232-71-13150 | • PIN | 2 | SN: 15001-@ |
|||
| ? | 01010-52455 | • BOLT | 4 | SN: 15001-@ |
|||
| ? | 01643-32460 | • WASHER | 4 | SN: 15001-@ |
