| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

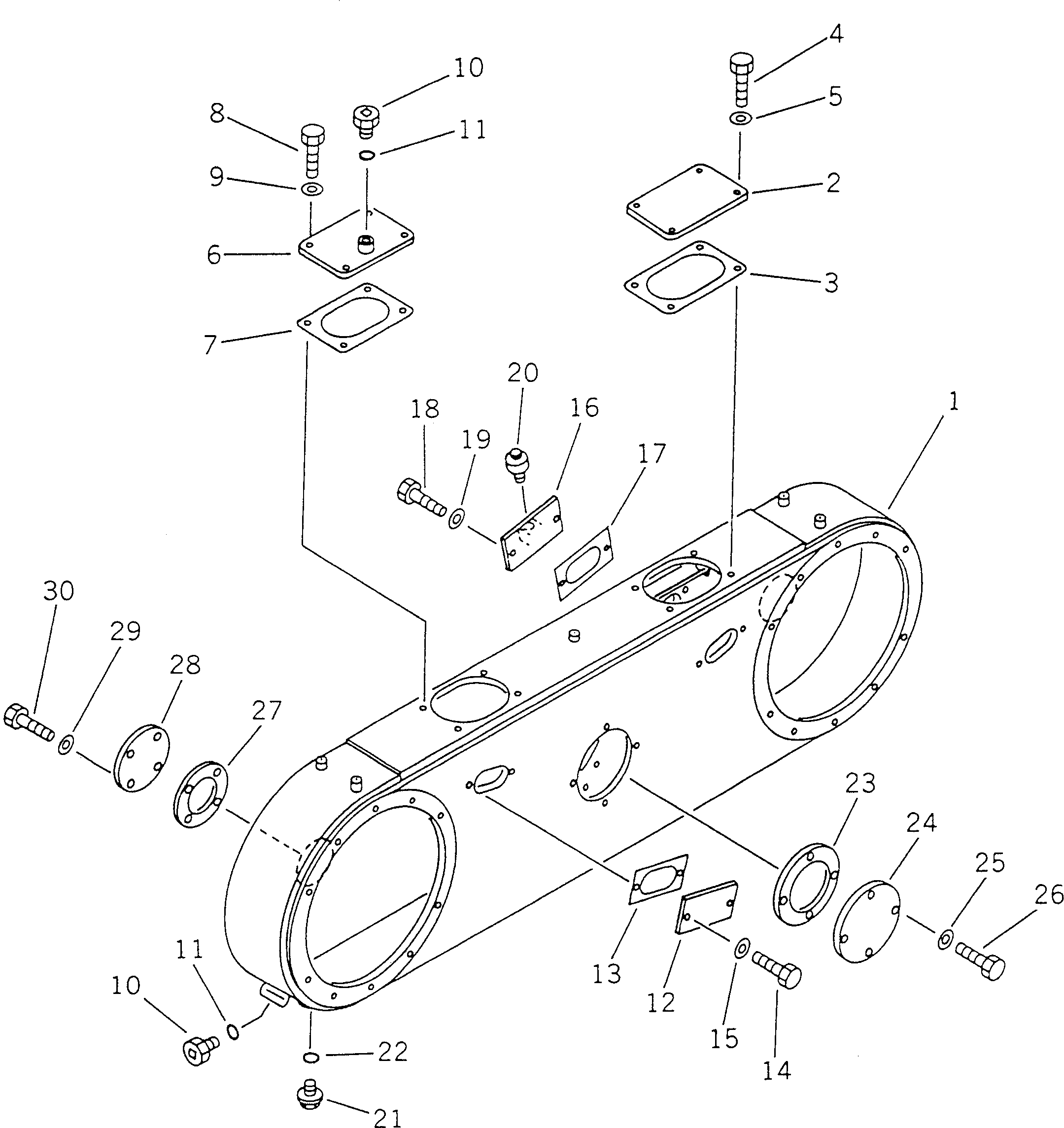

| ? | 23B-23-00051 | TANDEM DRIVE ASS'Y,L.H. | 1 | SN: 10001- |
|||
| ? | 23B-23-00061 | TANDEM DRIVE ASS'Y,R.H. | 1 | SN: 10001- |
|||
| ? | 23B-23-21110 | • CASE | 1 | SN: 10001- |
|||
| ? | 23A-23-11161 | • COVER | 1 | SN: 10001- |
|||
| ? | 238-23-16131 | • GASKET (K3) | 1 | SN: 10001- |
|||
| ? | 01010-51230 | • BOLT | 4 | SN: 10001- |
|||
| ? | 01643-31232 | • WASHER | 4 | SN: 10001- |
|||
| ? | 23A-23-11341 | • COVER | 1 | SN: 10001- |
|||
| ? | 238-23-16131 | • GASKET (K3) | 1 | SN: 10001- |
|||
| ? | 01010-51230 | • BOLT | 4 | SN: 10001- |
|||
| ? | 01643-31232 | • WASHER | 4 | SN: 10001- |
|||
| ? | 07040-12414 | • PLUG | 2 | SN: 10001- |
|||
| ? | 07002-12434 | • O-RING (K3) | 2 | SN: 10001- |
|||
| ? | 238-23-11130 | • COVER | 3 | SN: 10001- |
|||
| ? | 238-23-11120 | • GASKET (K3) | 3 | SN: 10001- |
|||
| ? | 01010-51230 | • BOLT | 6 | SN: 10001- |
|||
| ? | 01643-31232 | • WASHER | 6 | SN: 10001- |
|||
| ? | 238-23-11140 | • COVER | 1 | SN: 10001- |
|||
| ? | 238-23-11120 | • GASKET (K3) | 1 | SN: 10001- |
|||
| ? | 01010-51230 | • BOLT | 2 | SN: 10001- |
|||
| ? | 01643-31232 | • WASHER | 2 | SN: 10001- |
|||
| ? | 07030-10252 | • BREATHER | 1 | SN: 10001- |
|||
| ? | 07044-12412 | • PLUG | 1 | SN: 10001- |
|||
| ? | 07002-12434 | • O-RING (K3) | 1 | SN: 10001- |
|||
| ? | 238-23-16110 | • GASKET (K3) | 1 | SN: 10001- |
|||
| ? | 23A-23-11120 | • COVER | 1 | SN: 10001- |
|||
| ? | 01643-31232 | • WASHER | 4 | SN: 10001- |
|||
| ? | 01010-51240 | • BOLT | 4 | SN: 10001- |
|||
| ? | 238-23-16120 | • GASKET (K3) | 2 | SN: 10001- |
|||
| ? | 23A-23-11140 | • COVER | 2 | SN: 10001- |
|||
| ? | 01643-31232 | • WASHER | 8 | SN: 10001- |
|||
| ? | 01010-51240 | • BOLT | 8 | SN: 10001- |
