| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

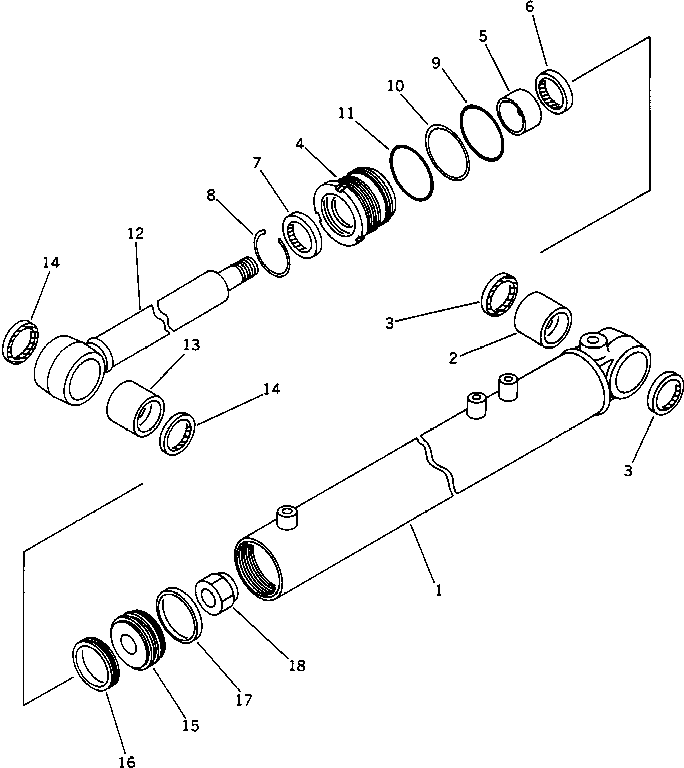

| ? | 262-63-01060 | CYLINDER ASS'Y,FEEDER 1ST FOLD | 2 | SN: 10001- |
|||
| ? | 262-63-56140 | • CYLINDER | 1 | SN: 10001- |
|||
| ? | 07143-10404 | • BUSHING | 1 | SN: 10001- |
|||
| ? | 07145-00040 | • SEAL,DUST | 2 | SN: 10001- |
|||
| ? | 707-29-70830 | • HEAD,CYLINDER | 1 | SN: 10001- |
|||
| ? | 07177-04025 | • BUSHING | 1 | SN: 10001- |
|||
| ? | 707-51-40210 | • PACKING,ROD | 1 | SN: 10001- |
|||
| ? | 198-63-75190 | • SEAL,DUST | 1 | SN: 10001- |
|||
| ? | 07179-12052 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 07000-12065 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07146-02066 | • RING,BACK-UP | 1 | SN: 10001- |
|||
| ? | 07000-02070 | • O-RING | 1 | SN: 10001- |
|||
| ? | 262-63-56120 | • ROD,PISTON | 1 | SN: 10001- |
|||
| ? | 07143-10404 | • BUSHING | 1 | SN: 10001- |
|||
| ? | 07145-00040 | • SEAL,DUST | 2 | SN: 10001- |
|||
| ? | 707-36-70930 | • PISTON | 1 | SN: 10001- |
|||
| ? | 707-44-70070 | • RING,PISTON | 1 | SN: 10001- |
|||
| ? | 07156-00710 | • RING,WEAR | 1 | SN: 10001- |
|||
| ? | 07165-12426 | • NUT | 1 | SN: 10001- |
