| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

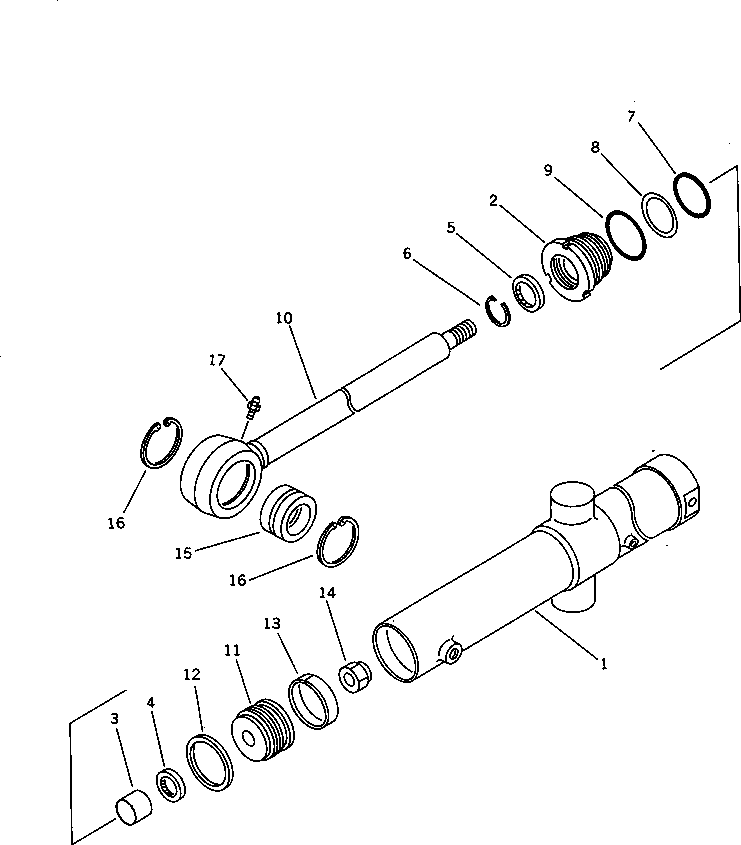

| ? | 262-63-01010 | CYLINDER ASS'Y,ROTOR LIFT | 2 | SN: 10001- |
|||
| ? | 262-63-51140 | • CYLINDER | 1 | SN: 10001- |
|||
| ? | 707-29-10720 | • HEAD,CYLINDER | 1 | SN: 10001- |
|||
| ? | 07177-05030 | • BUSHING | 1 | SN: 10001- |
|||
| ? | 707-51-50211 | • PACKING,ROD | 1 | SN: 10001- |
|||
| ? | 176-63-92240 | • SEAL,DUST | 1 | SN: 10001- |
|||
| ? | 07179-12062 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 07000-12095 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07146-02096 | • RING,BACK-UP | 1 | SN: 10001- |
|||
| ? | 07000-02100 | • O-RING | 1 | SN: 10001- |
|||
| ? | 262-63-51120 | • ROD,PISTON | 1 | SN: 10001- |
|||
| ? | 707-36-10950 | • PISTON | 1 | SN: 10001- |
|||
| ? | 707-44-10070 | • RING,PISTON | 1 | SN: 10001- |
|||
| ? | 07156-01012 | • RING,WEAR | 1 | SN: 10001- |
|||
| ? | 07165-13336 | • NUT | 1 | SN: 10001- |
|||
| ? | 707-46-06010 | • BUSHING | 1 | SN: 10001- |
|||
| ? | 04065-09030 | • RING,SNAP | 2 | SN: 10001- |
|||
| ? | 07020-00000 | • FITTING,GREASE | 1 | SN: 10001- |
