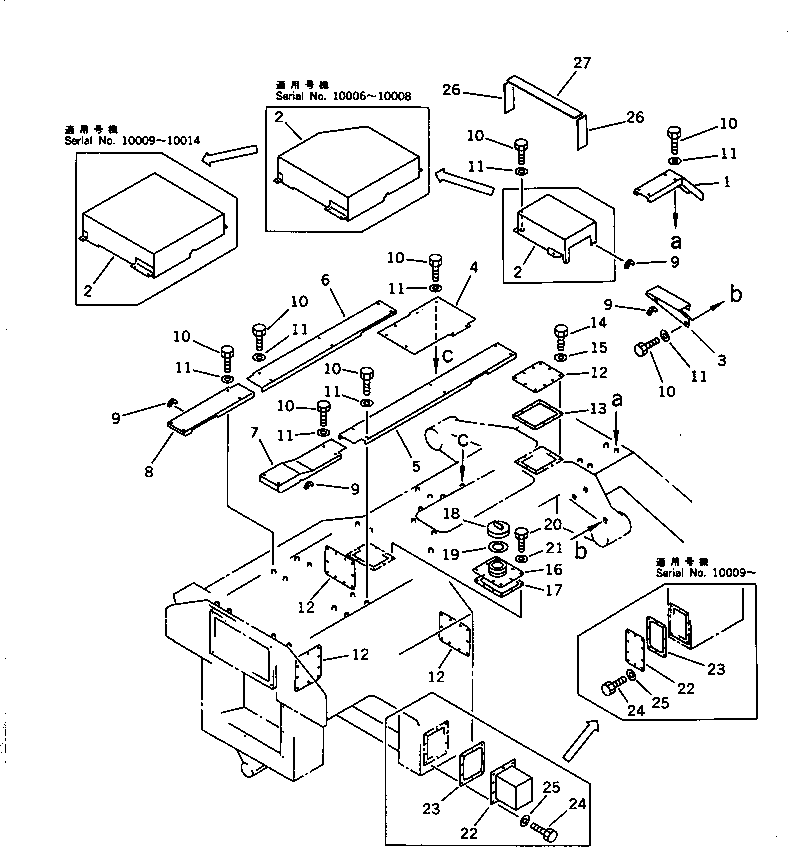

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 262-06-54670 | COVER | 1 | SN: 10001-@ |
|||
| ? | 262-06-54653 | COVER | 1 | SN: 10009-10014 |
|||
| ? | 262-06-54652 | COVER | 1 | SN: 10006-10008 |
|||
| ? | 262-06-54651 | COVER | 1 | SN: 10001-10005 |
|||
| ? | 262-06-54711 | COVER | 1 | SN: 10001-@ |
|||
| ? | 262-06-54661 | COVER | 1 | SN: 10001-10014 |
|||
| ? | 262-06-54620 | COVER | 1 | SN: 10001-10014 |
|||
| ? | 262-06-54640 | COVER | 1 | SN: 10001-10014 |
|||
| ? | 262-06-54610 | COVER | 1 | SN: 10001-@ |
|||
| ? | 262-06-54630 | COVER | 1 | SN: 10001-@ |
|||
| ? | 233-06-11180 | GROMMET | 4 | SN: 10001-@ |
|||
| ? | 01010-51018 | BOLT | 41 | SN: 10001-@ |
|||
| ? | 234-54-13252 | WASHER | 41 | SN: 10001-@ |
|||
| ? | 262-46-51330 | COVER | 4 | SN: 10001-@ |
|||
| ? | 262-46-51350 | GASKET | 4 | SN: 10001-@ |
|||
| ? | 01010-51035 | BOLT | 40 | SN: 10001-@ |
|||
| ? | 01643-31032 | WASHER | 40 | SN: 10001-@ |
|||
| ? | 262-46-51320 | COVER | 1 | SN: 10001-@ |
|||
| ? | 262-46-51350 | GASKET | 1 | SN: 10001-@ |
|||
| ? | 262-816-2171 | CAP | 1 | SN: 10001-@ |
|||
| ? | 262-816-2260 | GASKET | 1 | SN: 10001-@ |
|||
| ? | 01010-51035 | BOLT | 10 | SN: 10001-@ |
|||
| ? | 01643-31032 | WASHER | 10 | SN: 10001-@ |
|||
| ? | 262-46-51370 | COVER | 1 | SN: 10009-@ |
|||
| ? | 262-71-51720 | BOX | 1 | SN: 10001-10008 |
|||
| ? | 262-46-51380 | GASKET | 1 | SN: 10009-@ |
|||
| ? | 262-46-51360 | GASKET | 1 | SN: 10001-10008 |
|||
| ? | 01010-51035 | BOLT | 10 | SN: 10009-@ |
|||
| ? | 01010-51035 | BOLT | 12 | SN: 10001-10008 |
|||
| ? | 01643-31032 | WASHER | 10 | SN: 10009-@ |
|||
| ? | 01643-31032 | WASHER | 12 | SN: 10001-10008 |
|||
| ? | 262-06-54580 | PLATE (WELDED) | 2 | SN: 10001-10014 |
|||
| ? | 262-06-54570 | PLATE (WELDED) | 1 | SN: 10001-10014 |
