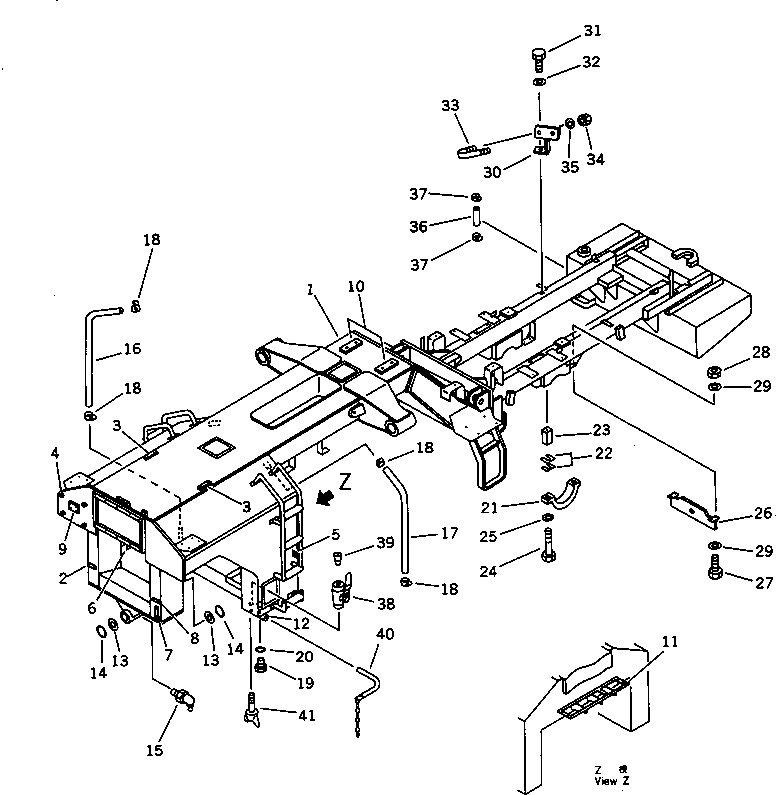

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 262-97-00011 | FRAME ASS'Y | 1 | SN: 10026- |
|||
| ? | 262-46-51101 | • FRAME | 1 | SN: 10026- |
|||
| ? | 262-60-55910 | • SEAT (WELDED) | 1 | SN: 10001- |
|||
| ? | 238-871-7380 | • SEAT (WELDED) | 2 | SN: 10001- |
|||
| ? | 01571-00814 | • SEAT (WELDED) | 4 | SN: 10001- |
|||
| ? | 262-06-59480 | • PLATE (WELDED) | 2 | SN: 10001- |
|||
| ? | 262-97-51110 | • BRACKET (WELDED) | 1 | SN: 10001- |
|||
| ? | 262-97-57520 | • SEAT (WELDED) | 1 | SN: 10001- |
|||
| ? | 262-97-57530 | • SEAT (WELDED) | 1 | SN: 10001- |
|||
| ? | 262-97-57540 | • PLATE (WELDED) | 1 | SN: 10001- |
|||
| ? | 01573-20212 | • SEAT (WELDED) | 2 | SN: 10026- |
|||
| ? | 262-98-51340 | • PLATE (WELDED) | 1 | SN: 10026- |
|||
| ? | 262-46-51660 | • BRACKET (WELDED) | 2 | SN: 10026- |
|||
| ? | 23B-46-11220 | WASHER | 2 | SN: 10001- |
|||
| ? | 07000-15100 | O-RING | 2 | SN: 10001- |
|||
| ? | 07020-00900 | FITTING | 1 | SN: 10001- |
|||
| ? | 262-46-51280 | TUBE | 1 | SN: 10001- |
|||
| ? | 262-46-51270 | TUBE | 1 | SN: 10009- |
|||
| ? | 07281-00167 | CLAMP | 8 | SN: 10001- |
|||
| ? | 07040-12414 | PLUG | 2 | SN: 10001- |
|||
| ? | 07002-12434 | O-RING | 2 | SN: 10001- |
|||
| ? | 23B-46-12320 | CAP | 2 | SN: 10001- |
|||
| ? | 23A-46-00120 | SHIM ASS'Y | 2 | SN: 10001- |
|||
| ? | ☆ | • SHIM¤ 0.1MM | 1 | SN: 10001- |
|||
| ? | ☆ | • SHIM¤ 0.2MM | 2 | SN: 10001- |
|||
| ? | ☆ | • SHIM¤ 0.5MM | 1 | SN: 10001- |
|||
| ? | 23B-46-12330 | SPACER | 4 | SN: 10001- |
|||
| ? | 01010-83080 | BOLT | 4 | SN: 10001- |
|||
| ? | 01643-33080 | WASHER | 4 | SN: 10001- |
|||
| ? | 23B-22-21270 | HANGER | 1 | SN: 10001- |
|||
| ? | 01010-51675 | BOLT | 4 | SN: 10001- |
|||
| ? | 01580-11613 | NUT | 4 | SN: 10001- |
|||
| ? | 01643-31645 | WASHER | 8 | SN: 10001- |
|||
| ? | 262-22-21110 | BRACKET | 1 | SN: 10001- |
|||
| ? | 01010-51016 | BOLT | 1 | SN: 10001- |
|||
| ? | 234-54-13252 | WASHER | 1 | SN: 10001- |
|||
| ? | 07283-24346 | CLIP | 1 | SN: 10001- |
|||
| ? | 01599-01011 | NUT | 2 | SN: 10001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 10001- |
|||
| ? | 262-46-51890 | TUBE | 1 | SN: 10015- |
|||
| ? | 07281-00197 | CLAMP | 2 | SN: 10001- |
|||
| ? | 262-46-51240 | VALVE | 2 | SN: 10001- |
|||
| ? | 07043-31222 | PLUG | 2 | SN: 10001- |
|||
| ? | 262-46-51670 | CHAIN ASS'Y | 2 | SN: 10026- |
|||
| ? | 01434-10830 | BOLT¤ WING | 2 | SN: 10026- |
