| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

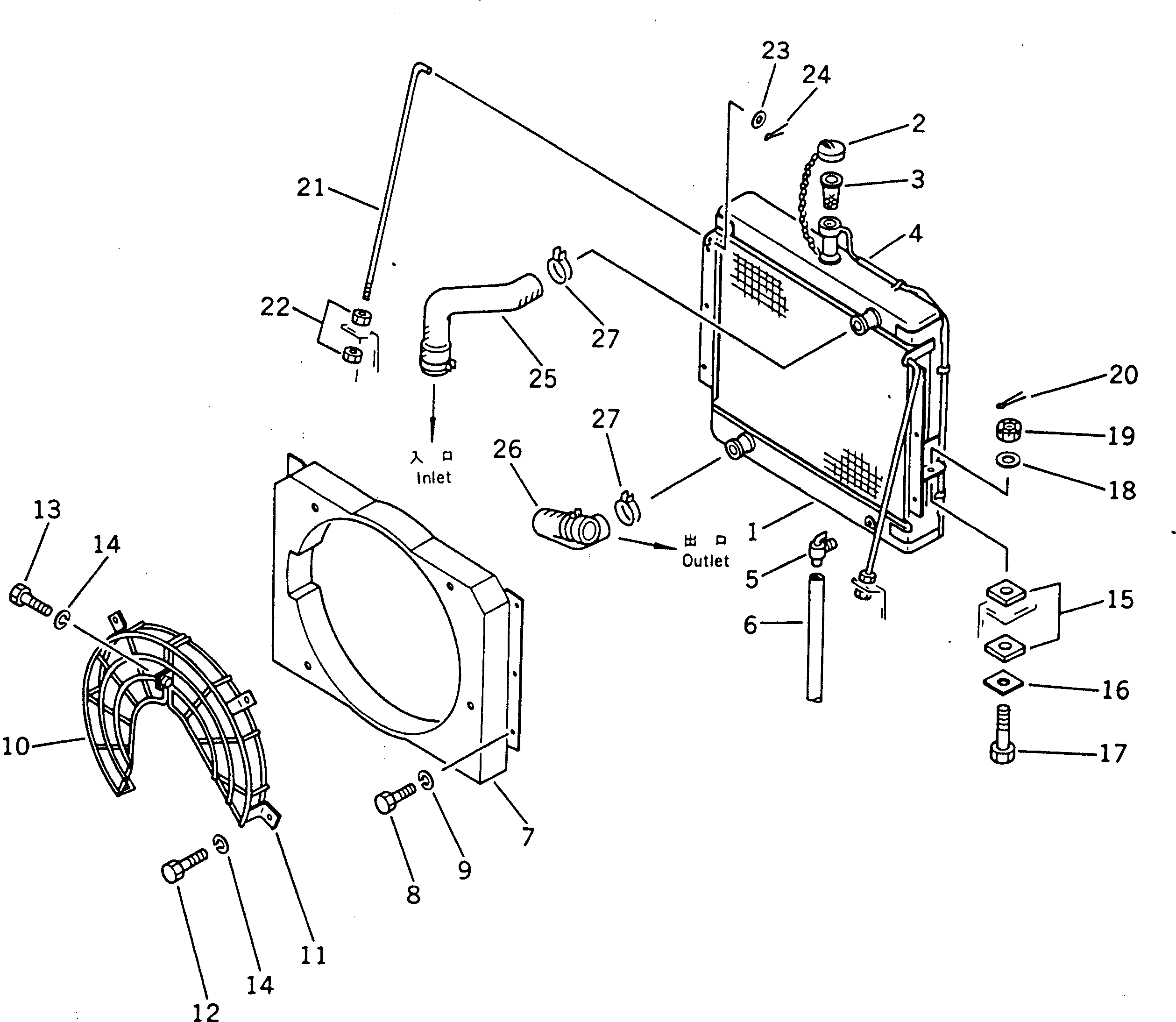

| ? | 236-03-00011 | RADIATOR ASS'Y | 1 | SN: 2001- |
|||
| ? | 236-03-21110 | • RADIATOR ASS'Y | 1 | SN: 2001- |
|||
| ? | 236-03-21140 | • • CAP | 1 | SN: 2001- |
|||
| ? | 230-03-11470 | • • STRAINER | 1 | SN: 2001- |
|||
| ? | 236-03-21160 | • • PIPE | 1 | SN: 2001- |
|||
| ? | 6140-61-6510 | • • VALVE,DRAIN | 1 | SN: 2001- |
|||
| ? | 236-03-21150 | • • PIPE,DRAIN | 1 | SN: 2001- |
|||
| ? | 237-03-11111 | • SHROUD | 1 | SN: 2001- |
|||
| ? | 01010-30816 | • BOLT | 6 | SN: 2001- |
|||
| ? | 01602-00825 | • WASHER,SPRING | 6 | SN: 2001- |
|||
| ? | 237-03-11121 | • GUARD,FAN | 1 | SN: 2001- |
|||
| ? | 237-03-11131 | • GUARD,FAN | 1 | SN: 2001- |
|||
| ? | 01010-31020 | • BOLT | 4 | SN: 2001- |
|||
| ? | 01010-31025 | • BOLT | 4 | SN: 2001- |
|||
| ? | 01602-01030 | • WASHER,SPRING | 5 | SN: 2001- |
|||
| ? | 236-03-21180 | CUSHION,RUBBER | 4 | SN: 2001- |
|||
| ? | 236-03-21190 | WASHER | 2 | SN: 2001- |
|||
| ? | 01012-31465 | BOLT | 2 | SN: 2001- |
|||
| ? | 01640-21426 | WASHER | 2 | SN: 2001- |
|||
| ? | 01590-01416 | NUT | 2 | SN: 2001- |
|||
| ? | 04050-13028 | PIN,COTTER | 2 | SN: 2001- |
|||
| ? | 236-03-21130 | ROD | 2 | SN: 2001- |
|||
| ? | 01580-01210 | NUT | 4 | SN: 2001- |
|||
| ? | 01641-21223 | WASHER | 2 | SN: 2001- |
|||
| ? | 04050-13020 | PIN,COTTER | 2 | SN: 2001- |
|||
| ? | 237-03-11211 | HOSE,INLET | 1 | SN: 2001- |
|||
| ? | 237-03-11221 | HOSE,OUTLET | 1 | SN: 2001- |
|||
| ? | 07281-00709 | CLAMP | 4 | SN: 2001- |
