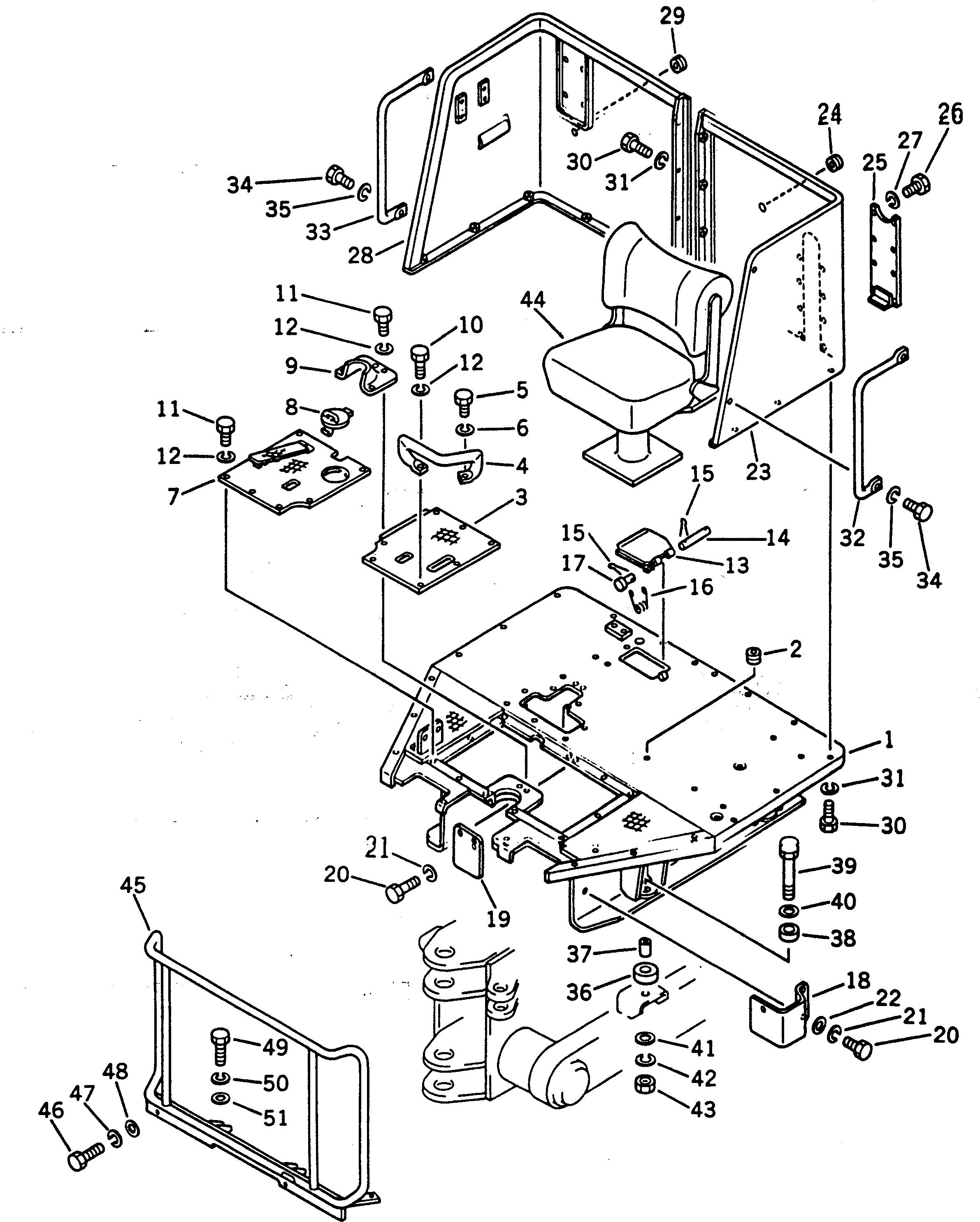

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 237-54-11111 | FRAME,FLOOR | 1 | SN: 2001- |
|||
| ? | 08037-03614 | GROMMET | 1 | SN: 2062- |
|||
| ? | □08037-01008 | GROMMET | 1 | SN: 2001-2061 |
|||
| ? | 237-54-11121 | PLATE | 1 | SN: 2001- |
|||
| ? | 237-54-11240 | STEP | 1 | SN: 2001- |
|||
| ? | 01010-31020 | BOLT | 1 | SN: 2001- |
|||
| ? | 01602-01030 | WASHER,SPRING | 1 | SN: 2001- |
|||
| ? | 237-54-11131 | PLATE | 1 | SN: 2001- |
|||
| ? | 236-54-21171 | • PEDAL,ACCELERATOR | 1 | SN: 2001- |
|||
| ? | 237-54-11250 | COVER | 1 | SN: 2001- |
|||
| ? | 237-54-11171 | COVER | 1 | SN: 2062- |
|||
| ? | □237-54-11170 | COVER | 1 | SN: 2001-2061 |
|||
| ? | 01010-31025 | BOLT | 1 | SN: 2001- |
|||
| ? | 01010-31020 | BOLT | 13 | SN: 2001- |
|||
| ? | 01602-01030 | WASHER,SPRING | 14 | SN: 2001- |
|||
| ? | 237-54-11151 | COVER | 1 | SN: 2001- |
|||
| ? | 237-54-11160 | PIN | 1 | SN: 2001- |
|||
| ? | 04050-11610 | PIN,COTTER | 4 | SN: 2001- |
|||
| ? | 131-54-11150 | SPRING | 1 | SN: 2001- |
|||
| ? | 04205-10616 | PIN | 2 | SN: 2001- |
|||
| ? | 237-54-11180 | COVER | 1 | SN: 2001- |
|||
| ? | 237-54-11190 | COVER | 1 | SN: 2001- |
|||
| ? | 01010-31020 | BOLT | 4 | SN: 2001- |
|||
| ? | 01602-01030 | WASHER,SPRING | 4 | SN: 2001- |
|||
| ? | 01640-21016 | WASHER | 2 | SN: 2001- |
|||
| ? | 237-54-11211 | GUARD,L.H. | 1 | SN: 2001- |
|||
| ? | 08037-01610 | GROMMET | 1 | SN: 2001- |
|||
| ? | 237-54-11231 | PLATE | 1 | SN: 2001- |
|||
| ? | 01010-30616 | BOLT | 6 | SN: 2001- |
|||
| ? | 01602-00619 | WASHER,SPRING | 6 | SN: 2001- |
|||
| ? | 237-54-11220 | GUARD,R.H. | 1 | SN: 2001- |
|||
| ? | 08037-01008 | GROMMET | 1 | SN: 2001- |
|||
| ? | 01010-31225 | BOLT | 16 | SN: 2001- |
|||
| ? | 01602-01236 | WASHER,SPRING | 16 | SN: 2001- |
|||
| ? | 234-54-11361 | HAND RAIL,L.H. | 1 | SN: 2001- |
|||
| ? | 234-54-11371 | HAND RAIL,R.H. | 1 | SN: 2001- |
|||
| ? | 01010-31020 | BOLT | 4 | SN: 2001- |
|||
| ? | 01602-01030 | WASHER,SPRING | 4 | SN: 2001- |
|||
| ? | 237-54-11280 | CUSHION | 4 | SN: 2001- |
|||
| ? | 234-54-11470 | COLLAR | 4 | SN: 2001- |
|||
| ? | 237-54-11270 | CUSHION | 4 | SN: 2001- |
|||
| ? | 01010-31695 | BOLT | 4 | SN: 2001- |
|||
| ? | 234-54-11480 | PLATE | 4 | SN: 2001- |
|||
| ? | 01640-21626 | WASHER | 4 | SN: 2001- |
|||
| ? | 01602-01648 | WASHER,SPRING | 4 | SN: 2001- |
|||
| ? | 01580-01613 | NUT | 4 | SN: 2001- |
|||
| ? | (232-57-00012) | SEAT ASS'Y | 1 | SN: 2001- |
|||
| ? | 237-54-11330 | GUARD,(EXCEPT JAPAN) | 1 | SN: 2001- |
|||
| ? | 01010-31025 | BOLT,(EXCEPT JAPAN) | 6 | SN: 2001- |
|||
| ? | 01602-01030 | WASHER,SPRING¤ (EXCEPT JAPAN) | 6 | SN: 2001- |
|||
| ? | 01640-21016 | WASHER,(EXCEPT JAPAN) | 6 | SN: 2001- |
|||
| ? | 01010-31230 | BOLT,(EXCEPT JAPAN) | 2 | SN: 2001- |
|||
| ? | 01602-01236 | WASHER,SPRING¤ (EXCEPT JAPAN) | 2 | SN: 2001- |
|||
| ? | 01640-21223 | WASHER,(EXCEPT JAPAN) | 2 | SN: 2001- |
