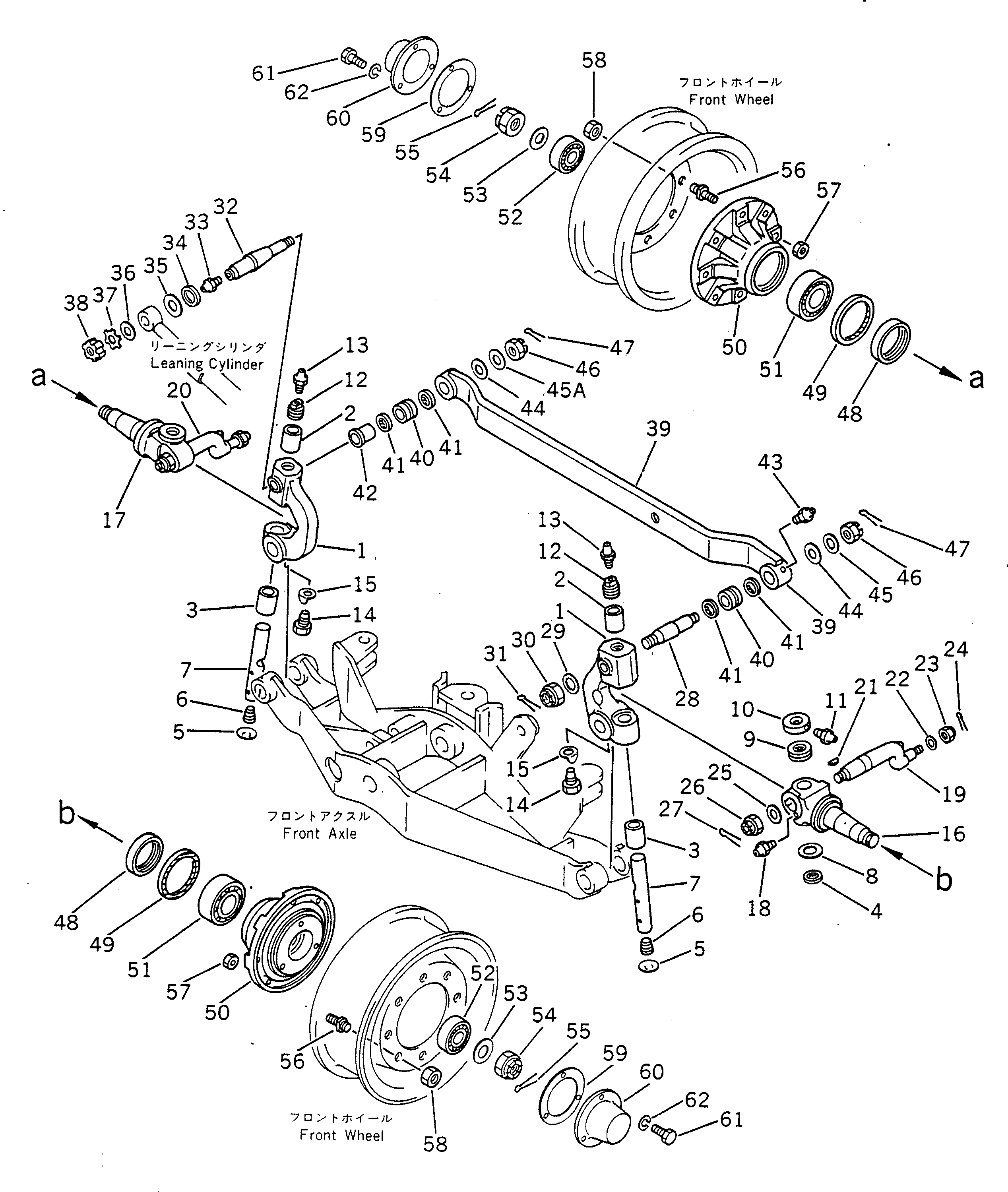

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 238-27-00150 | BRACKET ASS'Y | 1 | SN: 2001- |
|||
| ? | 238-27-11580 | • BRACKET | 1 | SN: 2001- |
|||
| ? | 232-27-11230 | • BUSHING | 1 | SN: 2001- |
|||
| ? | 232-27-11240 | • BUSHING | 1 | SN: 2001- |
|||
| ? | 07145-00035 | • SEAL,DUST (KIT) | 1 | SN: 2001- |
|||
| ? | 07046-14520 | PLUG | 2 | SN: 2001- |
|||
| ? | 07043-00108 | PLUG | 2 | SN: 2001- |
|||
| ? | 237-27-11190 | PIN,KNUCKLE | 2 | SN: 2001- |
|||
| ? | 232-27-11520 | PLATE | 2 | SN: 2001- |
|||
| ? | 06000-51207 | BEARING | 2 | SN: 2001- |
|||
| ? | 232-27-11531 | COVER | 2 | SN: 2001- |
|||
| ? | 07020-00000 | FITTING,GREASE | 2 | SN: 2001- |
|||
| ? | 232-27-11271 | PLUG | 2 | SN: 2001- |
|||
| ? | 07020-00000 | FITTING,GREASE | 2 | SN: 2001- |
|||
| ? | 232-27-11261 | BOLT | 2 | SN: 2001- |
|||
| ? | 01640-21626 | WASHER | 2 | SN: 2001- |
|||
| ? | 238-27-11560 | KNUCKLE,L.H. | 1 | SN: 2001- |
|||
| ? | 238-27-11570 | KNUCKLE,R.H. | 1 | SN: 2001- |
|||
| ? | 07020-00675 | FITTING,GREASE | 2 | SN: 2001- |
|||
| ? | 232-27-11615 | ARM,L.H. | 1 | SN: 2001- |
|||
| ? | 232-27-11625 | ARM,R.H. | 1 | SN: 2001- |
|||
| ? | 04010-01055 | KEY | 2 | SN: 2001- |
|||
| ? | 232-27-51420 | WASHER | 2 | SN: 2001- |
|||
| ? | 01593-02013 | NUT | 2 | SN: 2001- |
|||
| ? | 04050-14030 | PIN,COTTER (KIT) | 2 | SN: 2001- |
|||
| ? | 01640-22740 | WASHER | 2 | SN: 2001- |
|||
| ? | 01593-02716 | NUT | 2 | SN: 2001- |
|||
| ? | 04050-15045 | PIN,COTTER (KIT) | 2 | SN: 2001- |
|||
| ? | 237-27-51260 | ARM,L.H. | 1 | SN: 2001- |
|||
| ? | 01643-33080 | WASHER | 1 | SN: 2001- |
|||
| ? | 01590-13033 | NUT | 2 | SN: 2001- |
|||
| ? | 04050-16060 | PIN,COTTER (KIT) | 1 | SN: 2001- |
|||
| ? | 237-27-11240 | SHAFT,R.H. | 1 | SN: 2001- |
|||
| ? | 07020-00675 | FITTING,GREASE | 1 | SN: 2001- |
|||
| ? | 233-27-11160 | SPACER | 1 | SN: 2001- |
|||
| ? | 01640-23550 | WASHER | 1 | SN: 2001- |
|||
| ? | 01640-23045 | WASHER | 1 | SN: 2001- |
|||
| ? | 01658-23018 | WASHER,LOCK (KIT) | 1 | SN: 2001- |
|||
| ? | 01530-03010 | NUT | 1 | SN: 2001- |
|||
| ? | 237-27-00050 | LEANING ROD ASS'Y | 1 | SN: 2001- |
|||
| ? | 237-27-11250 | • ROD | 1 | SN: 2001- |
|||
| ? | 07144-10404 | • BUSHING | 2 | SN: 2001- |
|||
| ? | 07145-00040 | • SEAL,DUST (KIT) | 4 | SN: 2001- |
|||
| ? | 237-27-11220 | BUSHING | 1 | SN: 2001- |
|||
| ? | 07020-00675 | FITTING,GREASE | 2 | SN: 2001- |
|||
| ? | 01640-23950 | WASHER | 2 | SN: 2001- |
|||
| ? | 01640-22440 | WASHER | 2 | SN: 2001- |
|||
| ? | 01643-32460 | WASHER | 2 | SN: 2001- |
|||
| ? | 01590-12427 | NUT | 2 | SN: 2001- |
|||
| ? | 04050-15045 | PIN,COTTER (KIT) | 2 | SN: 2001- |
|||
| ? | 232-27-51230 | SPACER | 2 | SN: 2001- |
|||
| ? | 238-27-11311 | SEAL,OIL (KIT) | 1 | SN: 2001- |
|||
| ? | 232-27-11313 | HUB | 2 | SN: 2001- |
|||
| ? | 06002-32313 | BEARING | 2 | SN: 2001- |
|||
| ? | 06002-32310 | BEARING | 2 | SN: 2001- |
|||
| ? | 01640-23850 | WASHER | 2 | SN: 2001- |
|||
| ? | 01593-13923 | NUT | 2 | SN: 2001- |
|||
| ? | 04050-16060 | PIN,COTTER (KIT) | 2 | SN: 2001- |
|||
| ? | 232-27-11372 | BOLT | 16 | SN: 2001- |
|||
| ? | 234-23-13210 | NUT | 16 | SN: 2026- |
|||
| ? | □09211-02426 | NUT | 16 | SN: 2001-2025 |
|||
| ? | 01580-02218 | NUT | 16 | SN: 2001- |
|||
| ? | 232-27-51280 | GASKET (KIT) | 2 | SN: 2001- |
|||
| ? | 234-23-13131 | COVER | 2 | SN: 2001- |
|||
| ? | 01010-31220 | BOLT | 6 | SN: 2001- |
|||
| ? | 01602-01236 | WASHER,SPRING | 6 | SN: 2001- |
