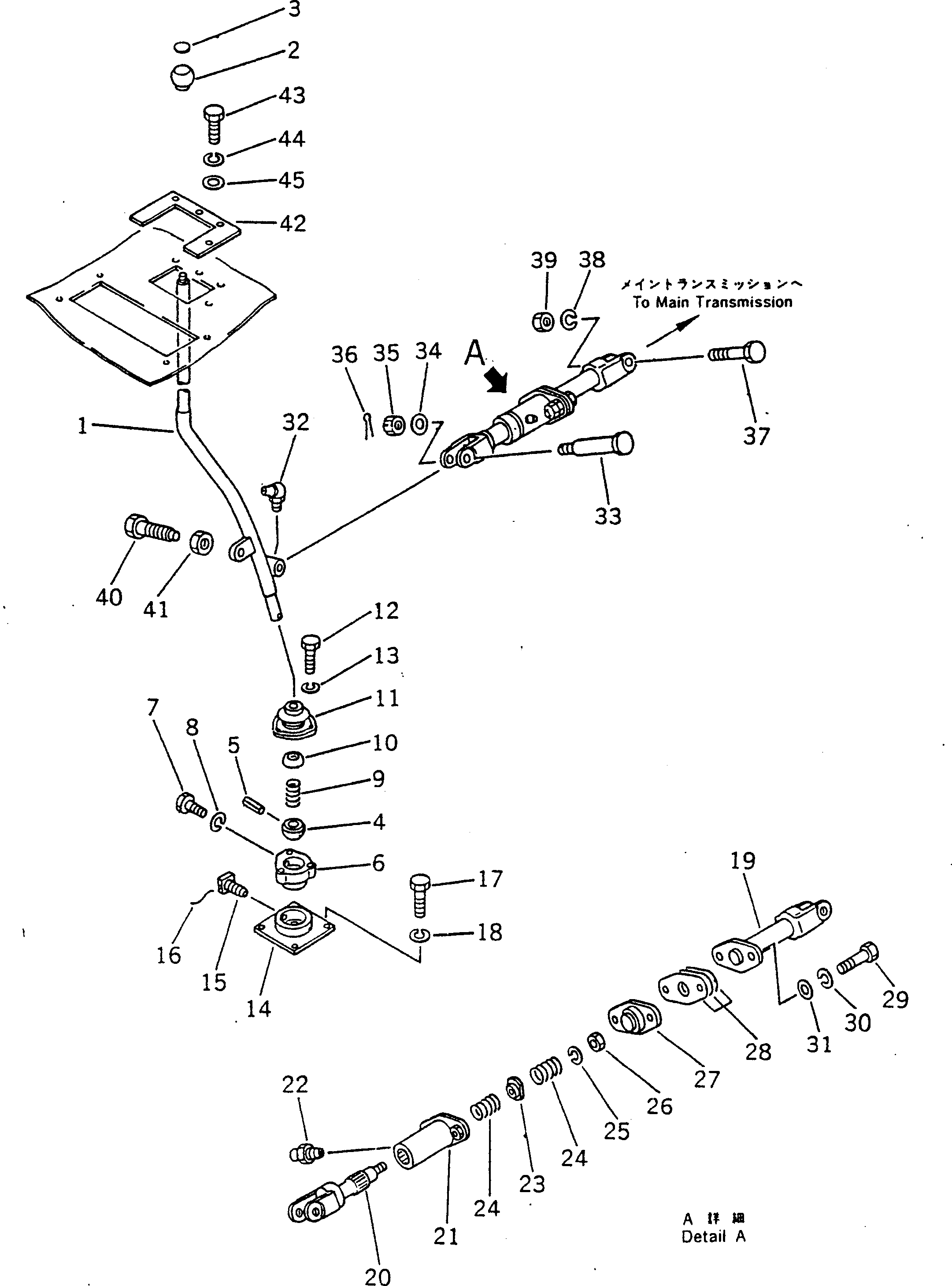

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 237-43-16111 | LEVER,GEAR SELECTOR | 1 | SN: 2001- |
|||
| ? | 237-43-00042 | KNOB ASS'Y | 1 | SN: 2001- |
|||
| ? | 237-43-16190 | • KNOB | 1 | SN: 2001- |
|||
| ? | 237-54-13282 | • PLATE | 1 | SN: 2001- |
|||
| ? | 236-43-27170 | BALL | 1 | SN: 2001- |
|||
| ? | 04025-00532 | PIN,SPRING | 1 | SN: 2001- |
|||
| ? | 236-43-27160 | BOSS | 1 | SN: 2001- |
|||
| ? | 01010-30812 | BOLT | 1 | SN: 2001- |
|||
| ? | 01602-00825 | WASHER,SPRING | 1 | SN: 2001- |
|||
| ? | 236-43-27210 | SPRING | 1 | SN: 2001- |
|||
| ? | 236-43-27190 | CAGE | 1 | SN: 2001- |
|||
| ? | 236-43-27150 | COVER | 1 | SN: 2001- |
|||
| ? | 01010-30816 | BOLT | 3 | SN: 2001- |
|||
| ? | 01602-00825 | WASHER,SPRING | 3 | SN: 2001- |
|||
| ? | 237-43-16130 | BRACKET | 1 | SN: 2001- |
|||
| ? | 01306-10820 | SCREW | 1 | SN: 2001- |
|||
| ? | 04059-01025 | WIRE | 1 | SN: 2001- |
|||
| ? | 01010-31025 | BOLT | 4 | SN: 2001- |
|||
| ? | 01602-01030 | WASHER,SPRING | 4 | SN: 2001- |
|||
| ? | 237-43-00112 | ROD ASS'Y | 1 | SN: 2001- |
|||
| ? | 232-43-16123 | • ROD | 1 | SN: 2001- |
|||
| ? | 237-43-16411 | • YOKE | 1 | SN: 2001- |
|||
| ? | 237-43-16421 | • SLEEVE | 1 | SN: 2001- |
|||
| ? | 07020-00000 | • FITTING,GREASE | 1 | SN: 2001- |
|||
| ? | 237-43-16431 | • SPACER | 1 | SN: 2001- |
|||
| ? | 237-43-16441 | • SPRING | 2 | SN: 2001- |
|||
| ? | 01602-01442 | • WASHER,SPRING | 1 | SN: 2001- |
|||
| ? | 01580-01411 | • NUT | 1 | SN: 2001- |
|||
| ? | 237-43-16481 | • FLANGE | 1 | SN: 2001- |
|||
| ? | 237-43-16490 | • SHIM | 3 | SN: 2001- |
|||
| ? | 01010-31235 | • BOLT | 2 | SN: 2001- |
|||
| ? | 01602-01236 | • WASHER,SPRING | 2 | SN: 2001- |
|||
| ? | 01640-21223 | • WASHER | 2 | SN: 2001- |
|||
| ? | 07020-00675 | FITTING,GREASE | 1 | SN: 2001- |
|||
| ? | 236-43-27141 | BOLT | 1 | SN: 2001- |
|||
| ? | 01640-21016 | WASHER | 1 | SN: 2001- |
|||
| ? | 01590-11012 | NUT | 1 | SN: 2001- |
|||
| ? | 04050-12018 | PIN,COTTER | 1 | SN: 2001- |
|||
| ? | 01090-31050 | BOLT | 1 | SN: 2001- |
|||
| ? | 01602-01030 | WASHER,SPRING | 1 | SN: 2001- |
|||
| ? | 01582-01008 | NUT | 1 | SN: 2001- |
|||
| ? | 237-43-16140 | BOLT | 1 | SN: 2001- |
|||
| ? | 01580-01613 | NUT | 1 | SN: 2001- |
|||
| ? | 237-43-16312 | PLATE | 1 | SN: 2001- |
|||
| ? | 01010-31040 | BOLT | 4 | SN: 2001- |
|||
| ? | 01602-01030 | WASHER,SPRING | 4 | SN: 2001- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 2001- |
