| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

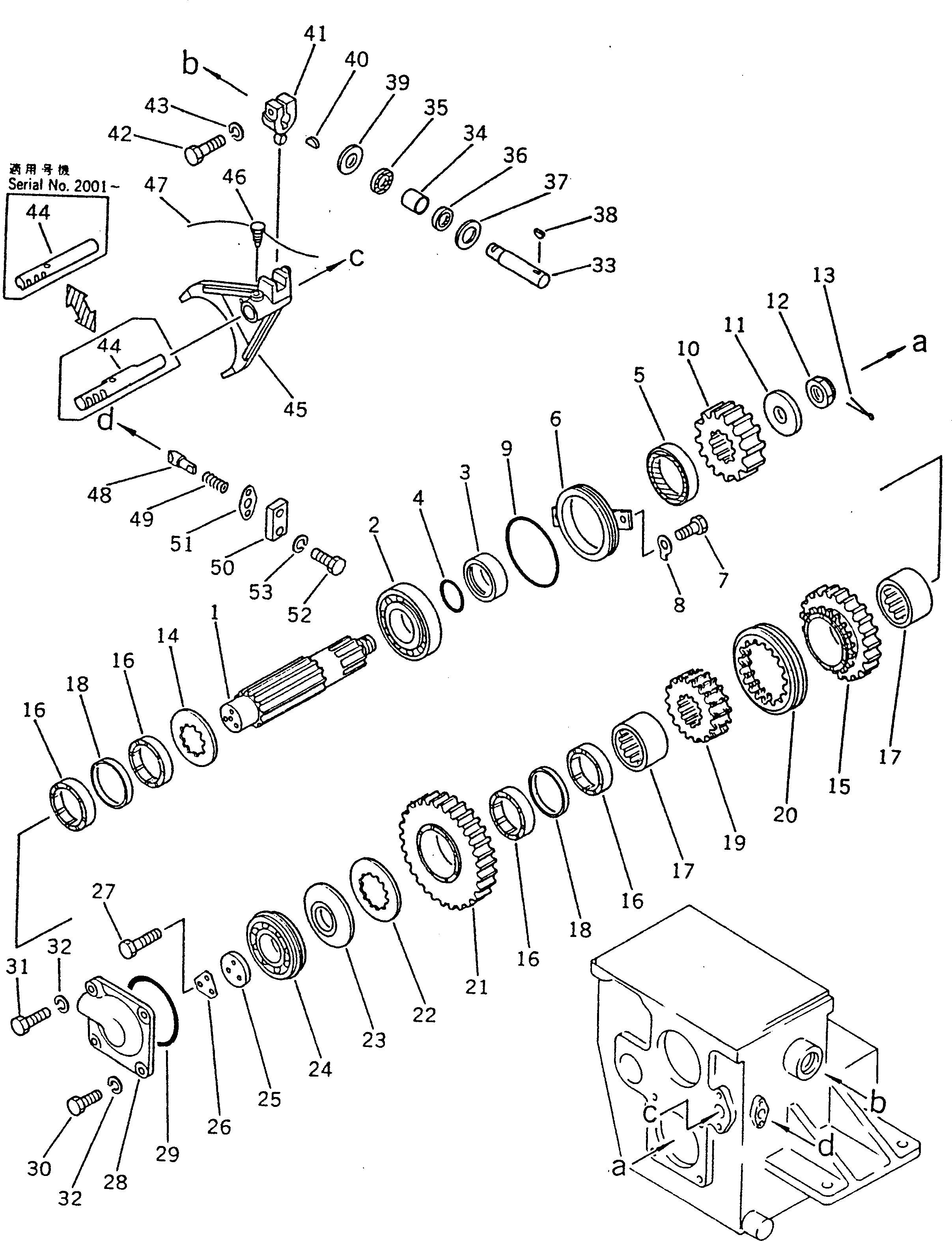

| ? | (237-14-00120) | TRANSMISSION ASS'Y | 1 | SN: 2001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.241 TO 244. | ||||||
| ? | 237-14-12411 | • SHAFT | 1 | SN: 2001- |
|||
| ? | 237-14-12520 | • BEARING | 1 | SN: 2001- |
|||
| ? | 237-14-12480 | • SPACER | 1 | SN: 2001- |
|||
| ? | 07000-12055 | • O-RING (KIT) | 1 | SN: 2001- |
|||
| ? | 07011-00070 | • SEAL,OIL (KIT) | 1 | SN: 2001- |
|||
| ? | 237-14-12510 | • COVER | 1 | SN: 2001- |
|||
| ? | 01010-31020 | • BOLT | 2 | SN: 2001- |
|||
| ? | 01650-01012 | • WASHER,LOCK | 2 | SN: 2001- |
|||
| ? | 07000-12115 | • O-RING (KIT) | 1 | SN: 2001- |
|||
| ? | 237-14-12440 | • GEAR | 1 | SN: 2001- |
|||
| ? | 237-14-12490 | • SPACER | 1 | SN: 2001- |
|||
| ? | 01593-12414 | • NUT | 1 | SN: 2001- |
|||
| ? | 04050-15035 | • PIN | 1 | SN: 2001- |
|||
| ? | 237-14-12471 | • SPACER | 1 | SN: 2001- |
|||
| ? | 237-14-12431 | • GAER | 1 | SN: 2001- |
|||
| ? | 141-14-35190 | • BUSHING | 4 | SN: 2001- |
|||
| ? | 141-14-35310 | • RACE,INNER | 2 | SN: 2001- |
|||
| ? | 141-14-35290 | • COLLAR | 2 | SN: 2001- |
|||
| ? | 232-14-32210 | • GEAR | 1 | SN: 2001- |
|||
| ? | 232-14-32220 | • GEAR | 1 | SN: 2001- |
|||
| ? | 237-14-12421 | • GEAR | 1 | SN: 2001- |
|||
| ? | 237-14-12461 | • SPACER | 1 | SN: 2001- |
|||
| ? | 237-14-12451 | • SPACER | 1 | SN: 2001- |
|||
| ? | 237-14-13240 | • BEARING | 1 | SN: 2001- |
|||
| ? | 238-14-12330 | • HOLDER | 1 | SN: 2001- |
|||
| ? | 238-14-12340 | • LOCK | 1 | SN: 2001- |
|||
| ? | 01010-31040 | • BOLT | 3 | SN: 2001- |
|||
| ? | 237-14-13230 | • COVER | 1 | SN: 2001- |
|||
| ? | 07000-12115 | • O-RING (KIT) | 1 | SN: 2001- |
|||
| ? | 01010-31025 | • BOLT | 3 | SN: 2001- |
|||
| ? | 01010-31035 | • BOLT | 1 | SN: 2001- |
|||
| ? | 01602-01030 | • WASHER,SPRING | 4 | SN: 2001- |
|||
| ? | 237-14-12990 | • SHAFT | 1 | SN: 2001- |
|||
| ? | 232-14-67150 | • BUSHING | 1 | SN: 2001- |
|||
| ? | 07012-00025 | • SEAL (KIT) | 1 | SN: 2001- |
|||
| ? | 07016-00256 | • SEAL (KIT) | 1 | SN: 2001- |
|||
| ? | 01640-22440 | • WASHER | 1 | SN: 2001- |
|||
| ? | 04010-00728 | • KEY | 1 | SN: 2001- |
|||
| ? | 237-14-12790 | • SPACER | 1 | SN: 2001- |
|||
| ? | 04010-00722 | • KEY | 1 | SN: 2001- |
|||
| ? | 237-14-12780 | • LEVER | 1 | SN: 2001- |
|||
| ? | 01010-31250 | • BOLT | 1 | SN: 2001- |
|||
| ? | 01602-01236 | • WASHER,SPRING | 1 | SN: 2001- |
|||
| ? | 237-14-12912 | • SHAFT | 1 | SN: .- |
|||
| ? | □237-14-12911 | • SHAFT | 1 | SN: 2001-. |
|||
| ? | 237-14-12922 | • FORK | 1 | SN: .- |
|||
| ? | □237-14-12921 | • FORK | 1 | SN: 2001-. |
|||
| ? | 232-14-37561 | • BOLT | 1 | SN: 2001- |
|||
| ? | 04059-01016 | • WIRE | 1 | SN: 2001- |
|||
| ? | 232-14-67410 | • PLUNGER | 1 | SN: 2001- |
|||
| ? | 141-14-32380 | • SPRING | 1 | SN: 2001- |
|||
| ? | 237-14-12970 | • PLATE | 1 | SN: 2001- |
|||
| ? | 237-14-12980 | • GASKET (KIT) | 1 | SN: 2001- |
|||
| ? | 01010-31030 | • BOLT | 2 | SN: 2001- |
|||
| ? | 01602-01030 | • WASHER,SPRING | 2 | SN: 2001- |
