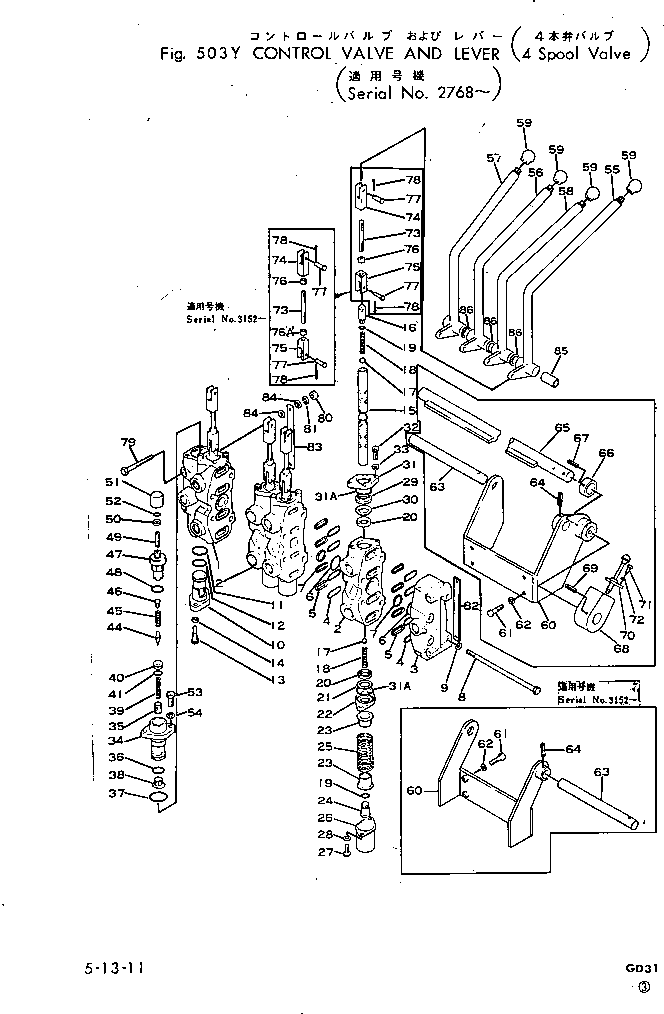

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 700-74-14000 | VALVE ASS'Y | 1 | SN: 2768- |
|||
| ? | ☆ | • BODY | 1 | SN: 2768- |
|||
| ? | ☆ | • BLOCK | 3 | SN: 2768- |
|||
| ? | ☆ | • COVER | 1 | SN: 2768- |
|||
| ? | 07000-13028 | • O-RING | 16 | SN: 2768- |
|||
| ? | 700-72-31420 | • RING | 16 | SN: 2768- |
|||
| ? | 07000-13030 | • O-RING | 4 | SN: 2768- |
|||
| ? | 700-72-31430 | • RING | 4 | SN: 2768- |
|||
| ? | 700-74-31140 | • BOLT | 4 | SN: 2768- |
|||
| ? | 01602-01030 | • WASHER | 4 | SN: 2768- |
|||
| ? | 700-72-31330 | • PLUG | 1 | SN: 2768- |
|||
| ? | 700-13-31161 | • O-RING | 1 | SN: 2768- |
|||
| ? | (☒700-13-31160) | • O-RING | 1 | SN: (2768-.) |
|||
| ? | 07000-03032 | • O-RING | 1 | SN: 2768- |
|||
| ? | (☒07000-03030) | • O-RING | 1 | SN: (2768-.) |
|||
| ? | 01252-41030 | • BOLT | 2 | SN: 2768- |
|||
| ? | 01602-01030 | • WASHER | 2 | SN: 2768- |
|||
| ? | ☆ | • SPOOL | 4 | SN: 2768- |
|||
| ? | 700-72-31340 | • JOINT | 4 | SN: 2768- |
|||
| ? | 700-72-31580 | • BALL | 8 | SN: 2768- |
|||
| ? | 700-72-31570 | • SPRING | 8 | SN: 2768- |
|||
| ? | 07002-11423 | • O-RING | 8 | SN: 2768- |
|||
| ? | (☒07000-12011) | • O-RING | 8 | SN: (2768-.) |
|||
| ? | 700-72-31390 | • U-PACKING | 8 | SN: 2768- |
|||
| ? | 700-72-31230 | • COLLAR | 4 | SN: 2768- |
|||
| ? | 700-84-11250 | • PLATE | 4 | SN: .- |
|||
| ? | 700-72-31240 | • PLATE | 4 | SN: 2768-. |
|||
| ? | 700-72-31250 | • RETAINER | 8 | SN: 2768- |
|||
| ? | 700-72-31380 | • PLUG | 4 | SN: 2768- |
|||
| ? | 700-72-31270 | • SPRING | 4 | SN: 2768- |
|||
| ? | 700-72-31280 | • COVER | 4 | SN: 2768- |
|||
| ? | 01252-40615 | • BOLT | 8 | SN: 2768- |
|||
| ? | 01602-00619 | • WASHER | 8 | SN: 2768- |
|||
| ? | 700-84-11820 | • SEAL | 4 | SN: .- |
|||
| ? | □700-72-31290 | • SEAL | 4 | SN: 2768-. |
|||
| ? | 700-72-31310 | • COLLAR | 4 | SN: 2768- |
|||
| ? | 700-84-11310 | • PLATE | 4 | SN: .- |
|||
| ? | 700-76-31180 | • PLATE | 4 | SN: 2768-. |
|||
| ? | 700-84-11240 | • O-RING | 8 | SN: .- |
|||
| ? | 01252-40620 | • BOLT | 8 | SN: 2768- |
|||
| ? | 01602-00619 | • WASHER | 8 | SN: 2768- |
|||
| ? | 700-70-51002 | • RELIEF VALVE ASS'Y | 1 | SN: 2768- |
|||
| ? | (☒700-70-51001) | • RELIEF VALVE ASS'Y | 1 | SN: (2768-.) |
|||
| ? | 700-70-00020 | • • RELIEF VALVE ASS'Y | 1 | SN: 2768- |
|||
| ? | ☆ | • • • SLEEVE | 1 | SN: 2768- |
|||
| ? | ☆ | • • • VALVE | 1 | SN: 2768- |
|||
| ? | 700-13-31161 | • • O-RING | 1 | SN: 2768- |
|||
| ? | (☒700-13-31160) | • • O-RING | 1 | SN: (2768-.) |
|||
| ? | 07000-03032 | • • O-RING | 1 | SN: 2768- |
|||
| ? | (☒07000-03030) | • • O-RING | 1 | SN: (2768-.) |
|||
| ? | 700-70-51160 | • • PLUG | 1 | SN: 2768- |
|||
| ? | 700-70-51140 | • • SPRING | 1 | SN: 2768- |
|||
| ? | ☆ | • • SEAT | 1 | SN: 2768- |
|||
| ? | 07000-22015 | • • O-RING | 1 | SN: 2768- |
|||
| ? | (☒07000-12015) | • • O-RING | 1 | SN: (2768-.) |
|||
| ? | ☆ | • • POPPET | 1 | SN: 2768- |
|||
| ? | (☒700-30-51120) | • • POPPET | 1 | SN: (2768-.) |
|||
| ? | 701-30-51171 | • • SPRING | 1 | SN: 2768- |
|||
| ? | (☒700-10-51170) | • • SPRING | 1 | SN: (2768-.) |
|||
| ? | 700-10-51181 | • • RETAINER | 1 | SN: 2768- |
|||
| ? | (☒700-10-51180) | • • RETAINER | 1 | SN: (2768-.) |
|||
| ? | 700-10-51190 | • • HOLDER | 1 | SN: 2768- |
|||
| ? | 07002-12434 | • • O-RING | 1 | SN: 2768- |
|||
| ? | (☒07000-13022) | • • O-RING | 1 | SN: (2768-.) |
|||
| ? | 700-10-51210 | • • SCREW | 1 | SN: 2768- |
|||
| ? | 01580-00605 | • • NUT | 1 | SN: 2768- |
|||
| ? | 700-10-51220 | • • COVER | 1 | SN: 2768- |
|||
| ? | 07002-01423 | • • O-RING | 1 | SN: 2768- |
|||
| ? | (☒07000-02012) | • • O-RING | 1 | SN: (2768-.) |
|||
| ? | 01252-41030 | • • BOLT | 2 | SN: 2768- |
|||
| ? | 01602-01030 | • • WASHER | 2 | SN: 2768- |
|||
| ? | 232-43-18114 | LEVER,BLADE LIFT | 1 | SN: 3512- |
|||
| ? | 232-43-18113 | LEVER,BLADE LIFT | 1 | SN: 3152-3511 |
|||
| ? | 232-43-18112 | LEVER,BLADE LIFT | 1 | SN: 2768-3151 |
|||
| ? | 232-43-18123 | LEVER,CIRCLE | 1 | SN: 3152- |
|||
| ? | 232-43-18122 | LEVER,CIRCLE | 1 | SN: 2768-3151 |
|||
| ? | 232-43-18133 | LEVER | 1 | SN: 3152- |
|||
| ? | 232-43-18132 | LEVER | 1 | SN: 2768-3151 |
|||
| ? | 232-43-18242 | LEVER,SCARIFIER | 1 | SN: 3152- |
|||
| ? | 232-43-18241 | LEVER,SCARIFIER | 1 | SN: 2768-3151 |
|||
| ? | 09304-00835 | KNOB | 4 | SN: 2768- |
|||
| ? | 232-43-17391 | BRACKET | 1 | SN: 3152- |
|||
| ? | 232-43-17390 | BRACKET | 1 | SN: 2768-3151 |
|||
| ? | 01010-30830 | BOLT | 4 | SN: 2768- |
|||
| ? | 01602-00825 | WASHER | 4 | SN: 2768- |
|||
| ? | 232-43-18330 | SHAFT | 1 | SN: 2768- |
|||
| ? | 04025-00632 | PIN | 1 | SN: 2768-3151 |
|||
| ? | 232-43-17380 | SHAFT | 1 | SN: 2768-3151 |
|||
| ? | 232-43-18360 | BOSS | 1 | SN: 2768-3151 |
|||
| ? | 04025-00632 | PIN | 1 | SN: 2768-3151 |
|||
| ? | 232-43-18350 | PLATE | 1 | SN: 2768-3151 |
|||
| ? | 04025-00650 | PIN | 1 | SN: 2768-3151 |
|||
| ? | 232-43-18301 | LEVER | 1 | SN: 2768-3151 |
|||
| ? | 01010-30612 | BOLT | 2 | SN: 2768-3151 |
|||
| ? | 01602-00619 | WASHER | 2 | SN: 2768-3151 |
|||
| ? | 232-43-18311 | ROD | 4 | SN: 3152- |
|||
| ? | 232-43-18310 | ROD | 4 | SN: 2768-3151 |
|||
| ? | 04210-00832 | YOKE | 4 | SN: 3152- |
|||
| ? | 04221-00844 | YOKE | 4 | SN: 2768-3151 |
|||
| ? | 04221-20844 | YOKE | 4 | SN: 3152- |
|||
| ? | 04211-00844 | YOKE | 4 | SN: 2768-3151 |
|||
| ? | 01580-10806 | NUT | 4 | SN: 2768- |
|||
| ? | 01508-20805 | NUT | 4 | SN: 3152- |
|||
| ? | 04205-10822 | PIN | 8 | SN: 2768- |
|||
| ? | 04050-02012 | PIN | 8 | SN: 2768- |
|||
| ? | 01010-31085 | BOLT | 3 | SN: 3152- |
|||
| ? | 232-60-12442 | BOLT | 3 | SN: 2768-3151 |
|||
| ? | 01580-01008 | NUT | 3 | SN: 2768- |
|||
| ? | 01602-01030 | WASHER | 3 | SN: 2768- |
|||
| ? | 232-60-12450 | PLATE | 1 | SN: 3152-3511 |
|||
| ? | 232-60-12460 | PLATE | 1 | SN: 3152-3511 |
|||
| ? | 01643-31032 | WASHER | 6 | SN: 3512- |
