| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

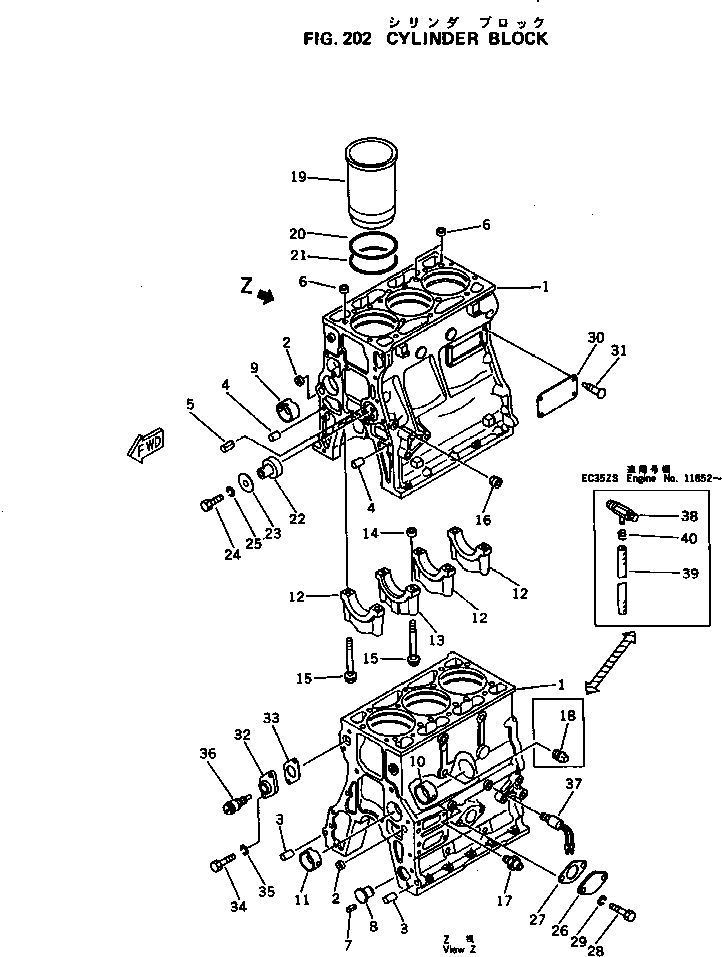

| ? | 6143-21-1010 | CYLINDER BLOCK ASS'Y | 1 | SN: 11852- |
|||
| ? | 6143-21-1100 | • CYLINDER BLOCK A. | 1 | SN: 11852- |
|||
| ? | ☆ | • • BLOCK,CYLINDER | 1 | SN: 11852- |
|||
| ? | 6140-21-1140 | • • PLUG | 2 | SN: 11852- |
|||
| ? | 04020-01228 | • • PIN,DOWEL | 2 | SN: 11852- |
|||
| ? | 04020-01024 | • • PIN,DOWEL | 2 | SN: 11852- |
|||
| ? | 04025-00512 | • • PIN,SPRING | 1 | SN: 11852- |
|||
| ? | 6140-21-1130 | • • BUSHING | 2 | SN: 11852- |
|||
| ? | 04025-00412 | • • PIN,SPRING | 1 | SN: 11852- |
|||
| ? | 6140-21-1811 | • • INSERT | 1 | SN: 11852- |
|||
| ? | 6142-22-1410 | • • BUSHING | 1 | SN: 11852- |
|||
| ? | 6142-22-1420 | • • BUSHING | 1 | SN: 11852- |
|||
| ? | 6142-22-1430 | • • BUSHING | 1 | SN: 11852- |
|||
| ? | 6142-29-1220 | • • CAP,METAL ? NO.1 ?3 ?4 | 3 | SN: 11852- |
|||
| ? | \5\6142-22-1220 | • • CAP,METAL ? NO.1 ?3 ?4 | 3 | SN: 11852- |
|||
| ? | 6142-29-1240 | • • CAP,METAL ? NO.2 | 1 | SN: 11852- |
|||
| ? | \5\6142-22-1240 | • • CAP,METAL ? NO.2 | 1 | SN: 11852- |
|||
| ? | 6141-21-1530 | • • RING | 2 | SN: 11852- |
|||
| ? | 6142-21-1611 | • • BOLT | 8 | SN: 11852- |
|||
| ? | 07043-50108 | • PLUG | 1 | SN: 11852- |
|||
| ? | 08073-00510 | • SWITCH | 1 | SN: 11852- |
|||
| ? | 07042-00312 | • PLUG | 1 | SN: 11852- |
|||
| ? | 6142-22-2211 | • LINER,CYLINDER | 3 | SN: 11852- |
|||
| ? | 6144-21-2211 | • LINER,CYLINDER | 3 | SN: 11852- |
|||
| ? | 6142-21-2221 | • O-RING (K2) | 3 | SN: 11852- |
|||
| ? | 6142-21-2230 | • O-RING (K2) | 3 | SN: 11852- |
|||
| ? | 6141-21-2412 | SHAFT | 1 | SN: 11852- |
|||
| ? | 6141-21-2421 | PLATE | 1 | SN: 11852- |
|||
| ? | 01010-31265 | BOLT | 1 | SN: 11852- |
|||
| ? | 01602-01236 | WASHER,SPRING | 1 | SN: 11852- |
|||
| ? | 6144-21-1650 | PLATE | 1 | SN: 11852- |
|||
| ? | 6144-21-1810 | GASKET (K2) | 1 | SN: 11852- |
|||
| ? | 01010-31250 | BOLT | 2 | SN: 11852- |
|||
| ? | 01602-01030 | WASHER,SPRING | 2 | SN: 11852- |
|||
| ? | 09605-01271 | PLATE ? NAME,(LIMITED SUPPLY) | 1 | SN: 11852- |
|||
| ? | 09605-21271 | PLATE ? NAME,(GERMAN) (TBG SPEC.) | 1 | SN: 11852- |
|||
| ? | 04418-02550 | SCREW | 4 | SN: 11852- |
|||
| ? | 6141-25-3811 | FLANGE | 1 | SN: 11852- |
|||
| ? | 6141-61-6831 | GASKET | 1 | SN: 11852- |
|||
| ? | 01010-30820 | BOLT | 2 | SN: 11852- |
|||
| ? | 01602-00825 | WASHER,SPRING | 2 | SN: 11852- |
|||
| ? | 600-815-3580 | SWITCH,THERMO | 1 | SN: 11852- |
|||
| ? | 600-815-1120 | SWITCH,PRESSURE | 1 | SN: 11852- |
|||
| ? | 6140-61-6512 | VALVE,DRAIN (FOR EC35ZS) | 1 | SN: 10001-11851 |
|||
| ? | 6144-65-6611 | HOSE,(FOR EC35ZS) | 1 | SN: 10001-11851 |
|||
| ? | 6144-61-6510 | CLIP,(FOR EC35ZS) | 1 | SN: 10001-11851 |
