| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

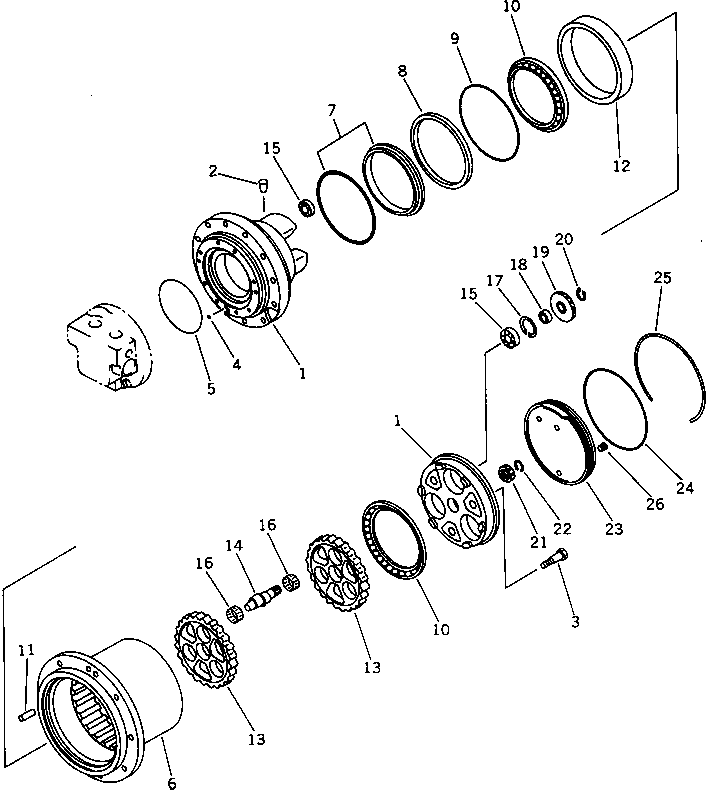

| ? | (20T-60-42100) | TRAVEL MOTOR ASS'Y | 2 | SN: 1001-1059 |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6301 AND 6302. | ||||||
| ? | (★TZ312B1102-00) | • SPINDLE KIT | 1 | SN: 1001-1059 |
|||
| ? | (★TZ312B1132-00) | • • SPINDLE ASS'Y | 1 | SN: 1001-1059 |
|||
| ? | TZMB700-060 | • • PLUG | 1 | SN: 1001-1059 |
|||
| ? | TZ300A1019-00 | • • BOLT,REAMER | 3 | SN: 1001-1059 |
|||
| ? | 07000-11007 | • O-RING (KIT) | 1 | SN: 1001-1059 |
|||
| ? | TZJW1516-G26-9 | • O-RING (KIT) | 1 | SN: 1001-1059 |
|||
| ? | (★TZ310B1001-01) | • HUB | 1 | SN: 1001-1059 |
|||
| ? | TZES100-154-A | • SEAL,FLOATING (KIT) | 1 | SN: 1001-1059 |
|||
| ? | TZ310B1027-00 | • PIECE,DISTANCE | 1 | SN: 1001-1059 |
|||
| ? | 07000-15185 | • O-RING (KIT) | 1 | SN: 1001-1059 |
|||
| ? | (★TZ310B1021-00) | • BEARING,BALL | 2 | SN: 1001-1059 |
|||
| ? | TZ310B1017-00 | • PIN | 24 | SN: 1001-1059 |
|||
| ? | TZ310B1020-00 | • COLLAR | 1 | SN: 1001-1059 |
|||
| ? | (★TZ310B1104-00) | • RV GEAR ASS'Y | 1 | SN: 1001-1059 |
|||
| ? | (★TZ310B1204-00) | • • RV GEAR KIT,(2PIS) | 1 | SN: 1001-1059 |
|||
| ? | (★TZ310B1009-00) | • • SHAFT,CRANK | 3 | SN: 1001-1059 |
|||
| ? | (★TZ310B1022-00) | • • BEARING,ROLLER | 6 | SN: 1001-1059 |
|||
| ? | (★TZ310B1023-00) | • • BEARING,ROLLER | 6 | SN: 1001-1059 |
|||
| ? | (★TZ310B1013-00) | • SNAP RING KIT,(12KWDS) | 3 | SN: 1001-1059 |
|||
| ? | TZ550A1014-00 | • PIECE,DISTANCE | 3 | SN: 1001-1059 |
|||
| ? | TZ314B1107-00 | • SPUR GEAR KIT,(3PIS) | 1 | SN: 1001-1059 |
|||
| ? | 04064-02212 | • RING,SNAP | 3 | SN: 1001-1059 |
|||
| ? | TZ314B1006-00 | • GEAR,INPUT | 1 | SN: 1001-1059 |
|||
| ? | 04064-01410 | • RING,SNAP | 1 | SN: 1001-1059 |
|||
| ? | TZ310B1008-00 | • COVER | 1 | SN: 1001-1059 |
|||
| ? | 07000-15170 | • O-RING (KIT) | 1 | SN: 1001-1059 |
|||
| ? | TZ300A1018-00 | • RING | 1 | SN: 1001-1059 |
|||
| ? | TZGM3-8 | • PLUG | 3 | SN: 1001-1059 |
|||
| ? | SERVICE KIT | ||||||
| ? | TZ312B9000-00 | SEAL KIT | 1 | SN: 1001-1059 |
|||
| ? | TZJW1516-G26-9 | • O-RING | 1 | SN: 1001-1059 |
|||
| ? | 07000-12012 | • O-RING | 2 | SN: 1001-1059 |
|||
| ? | TZ15Z-17-35-8 | • SEAL,OIL | 1 | SN: 1001-1059 |
|||
| ? | 07000-11007 | • O-RING | 1 | SN: 1001-1059 |
|||
| ? | TZJB2401-P22-9 | • O-RING | 2 | SN: 1001-1059 |
|||
| ? | TZES100-154-A | • SEAL,FLOATING | 1 | SN: 1001-1059 |
|||
| ? | 07000-15185 | • O-RING | 1 | SN: 1001-1059 |
|||
| ? | 07000-15170 | • O-RING | 1 | SN: 1001-1059 |
