| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 709-33-12101 | VALVE ASS'Y | 1 | SN: 1001- |
|||
| ? | (☒709-33-12100) | VALVE ASS'Y | 1 | SN: (1001-1039) |
|||

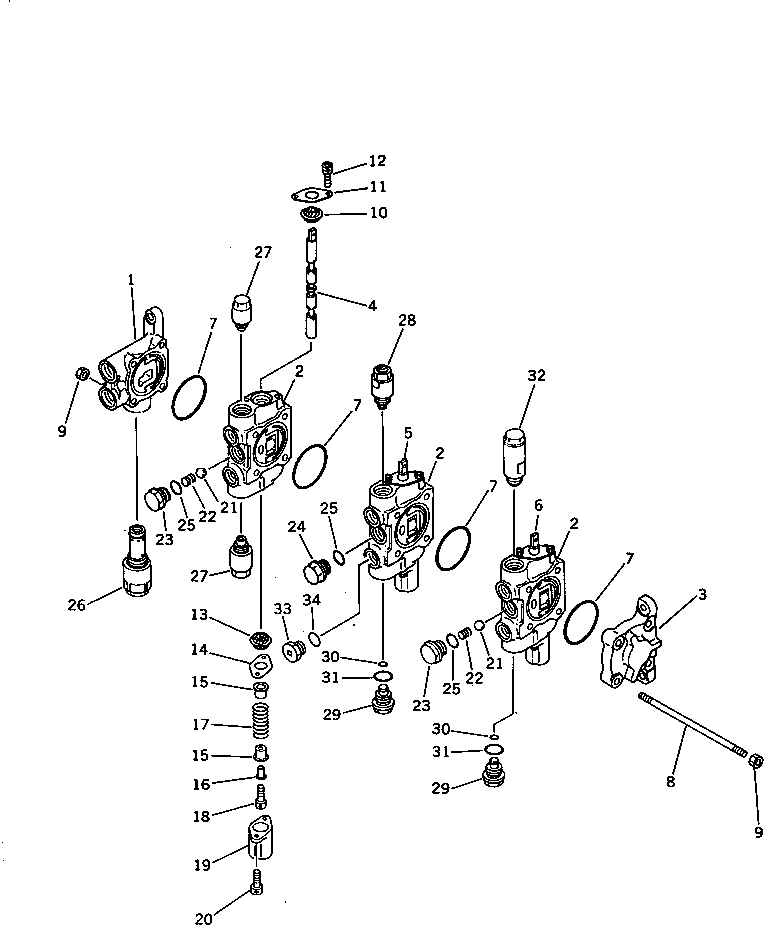

| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6211 AND 6212. | ||||||
| ? | ☆ | • BLOCK | 1 | SN: 1001- |
|||
| ? | ☆ | • BLOCK | 3 | SN: 1001- |
|||
| ? | ☆ | • COVER | 1 | SN: 1001- |
|||
| ? | ☆ | • SPOOL,SWING | 1 | SN: 1001- |
|||
| ? | ☆ | • SPOOL,TRAVEL SPEED | 1 | SN: 1001- |
|||
| ? | ☆ | • SPOOL,BLADE | 1 | SN: 1001- |
|||
| ? | 07000-12055 | • O-RING | 4 | SN: 1001- |
|||
| ? | 709-33-11510 | • STUD | 4 | SN: 1001- |
|||
| ? | 01580-10806 | • NUT | 8 | SN: 1001- |
|||
| ? | 709-32-11530 | • SEAL,DUST | 3 | SN: 1001- |
|||
| ? | 709-32-11540 | • PLATE | 3 | SN: 1001- |
|||
| ? | 01252-30610 | • BOLT | 6 | SN: 1001- |
|||
| ? | 709-32-11530 | • SEAL,DUST | 3 | SN: 1001- |
|||
| ? | 709-32-11540 | • PLATE | 3 | SN: 1001- |
|||
| ? | 709-32-11550 | • RETAINER | 6 | SN: 1001- |
|||
| ? | 709-32-11560 | • COLLAR | 3 | SN: 1001- |
|||
| ? | 709-32-11580 | • SPRING | 3 | SN: 1001- |
|||
| ? | 01252-30620 | • BOLT | 3 | SN: 1001- |
|||
| ? | 709-32-11570 | • COVER | 3 | SN: 1001- |
|||
| ? | 01252-30616 | • BOLT | 6 | SN: 1001- |
|||
| ? | 04260-01270 | • BALL | 2 | SN: 1001- |
|||
| ? | 709-32-11820 | • SPRING | 2 | SN: 1001- |
|||
| ? | 709-32-11810 | • PLUG | 2 | SN: 1001- |
|||
| ? | 709-32-11930 | • PLUG | 1 | SN: 1001- |
|||
| ? | 07002-11823 | • O-RING | 3 | SN: 1001- |
|||
| ? | (700-28-56000) | • RELIEF VALVE ASS'Y,MAIN RELIEF | 1 | SN: 1001- |
|||
| ? | (709-30-61100) | • VALVE ASS'Y,SUCTION | 2 | SN: 1001- |
|||
| ? | (709-30-65703) | • VALVE ASS'Y,SAFETY | 1 | SN: 1001- |
|||
| ? | 709-32-11830 | • PLUG | 2 | SN: 1001- |
|||
| ? | 709-32-11840 | • O-RING | 2 | SN: 1001- |
|||
| ? | 07002-02034 | • O-RING | 2 | SN: 1001- |
|||
| ? | (709-30-64101) | • VALVE ASS'Y,SUCTION AND SAFETY | 1 | SN: 1001- |
|||
| ? | (☒709-30-63800) | • VALVE ASS'Y,SUCTION AND SAFETY | 1 | SN: (1001-1039) |
|||
| ? | 07040-11012 | • PLUG | 1 | SN: 1001- |
|||
| ? | 07002-11823 | • O-RING | 1 | SN: 1001- |
