| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

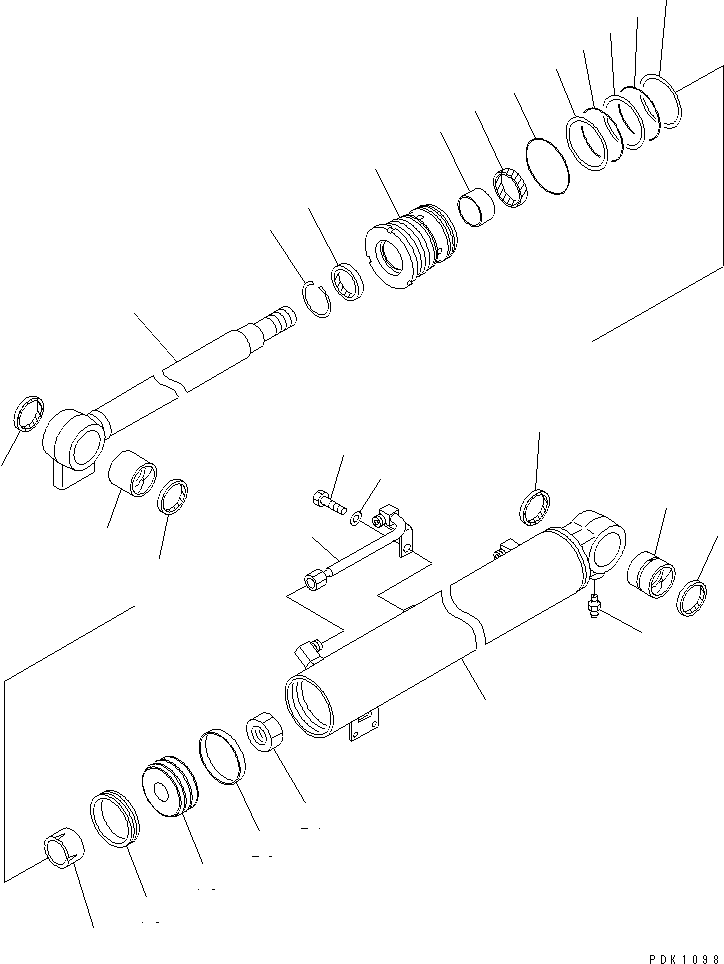

| ? | (☉20S-63-X2402) | CYLINDER GROUP,BOOM | 1 | SN: 35001- |
|||
| ? | ==================== | ||||||
| ? | 20S-63-02402 | CYLINDER ASS'Y,BOOM | 1 | SN: 35001- |
|||
| ? | 20S-63-57441 | • CYLINDER | 1 | SN: 35001- |
|||
| ? | 20S-70-81140 | • BUSHING | 1 | SN: 35001- |
|||
| ? | 07145-00045 | • SEAL,DUST (KIT) | 2 | SN: 35001- |
|||
| ? | 07020-00000 | • FITTING,GREASE | 1 | SN: 35001- |
|||
| ? | 707-29-80231 | • HEAD,CYLINDER | 1 | SN: 35001- |
|||
| ? | 07177-04530 | • BUSHING | 1 | SN: 35001- |
|||
| ? | 707-51-45210 | • PACKING,ROD (KIT) | 1 | SN: 35001- |
|||
| ? | 112-63-15370 | • SEAL,DUST (KIT) | 1 | SN: 35001- |
|||
| ? | 07179-12057 | • RING,SNAP | 1 | SN: 35001- |
|||
| ? | 07000-12075 | • O-RING (KIT) | 2 | SN: 35001- |
|||
| ? | 07146-02076 | • RING,BACK-UP (KIT) | 2 | SN: 35001- |
|||
| ? | 707-35-52750 | • RING,BACK-UP (KIT) | 1 | SN: 35001- |
|||
| ? | 07000-02080 | • O-RING (KIT) | 1 | SN: 35001- |
|||
| ? | 20S-63-57420 | • ROD,PISTON | 1 | SN: 35001- |
|||
| ? | 707-76-40570 | • BUSHING | 1 | SN: 35001- |
|||
| ? | 07145-00040 | • SEAL,DUST (KIT) | 2 | SN: 35001- |
|||
| ? | 707-71-60520 | • PLUNGER | 1 | SN: 35001- |
|||
| ? | 707-36-80230 | • PISTON | 1 | SN: 35001- |
|||
| ? | 707-44-80180 | • RING,PISTON (KIT) | 1 | SN: 35001- |
|||
| ? | 07156-00810 | • RING,WEAR (KIT) | 1 | SN: 35001- |
|||
| ? | 01580-03024 | • NUT | 1 | SN: 35001- |
|||
| ? | 20S-63-57470 | TUBE | 1 | SN: 35001- |
|||
| ? | 01010-81020 | BOLT | 1 | SN: 35001- |
|||
| ? | 01643-31032 | WASHER | 1 | SN: 35001- |
|||
| ? | ==================== | ||||||
| ? | SERVICE KIT | ||||||
| ? | 707-98-24280 | SERVICE KIT,BOOM CYLINDER | 1 | SN: 35001- |
