| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (23F-950-1001) | CAB ASS'Y | 1 | SN: 11029-12000 |
|||
| ? | (23F-950-1000) | CAB ASS'Y | 1 | SN: 11001-11028 |
|||

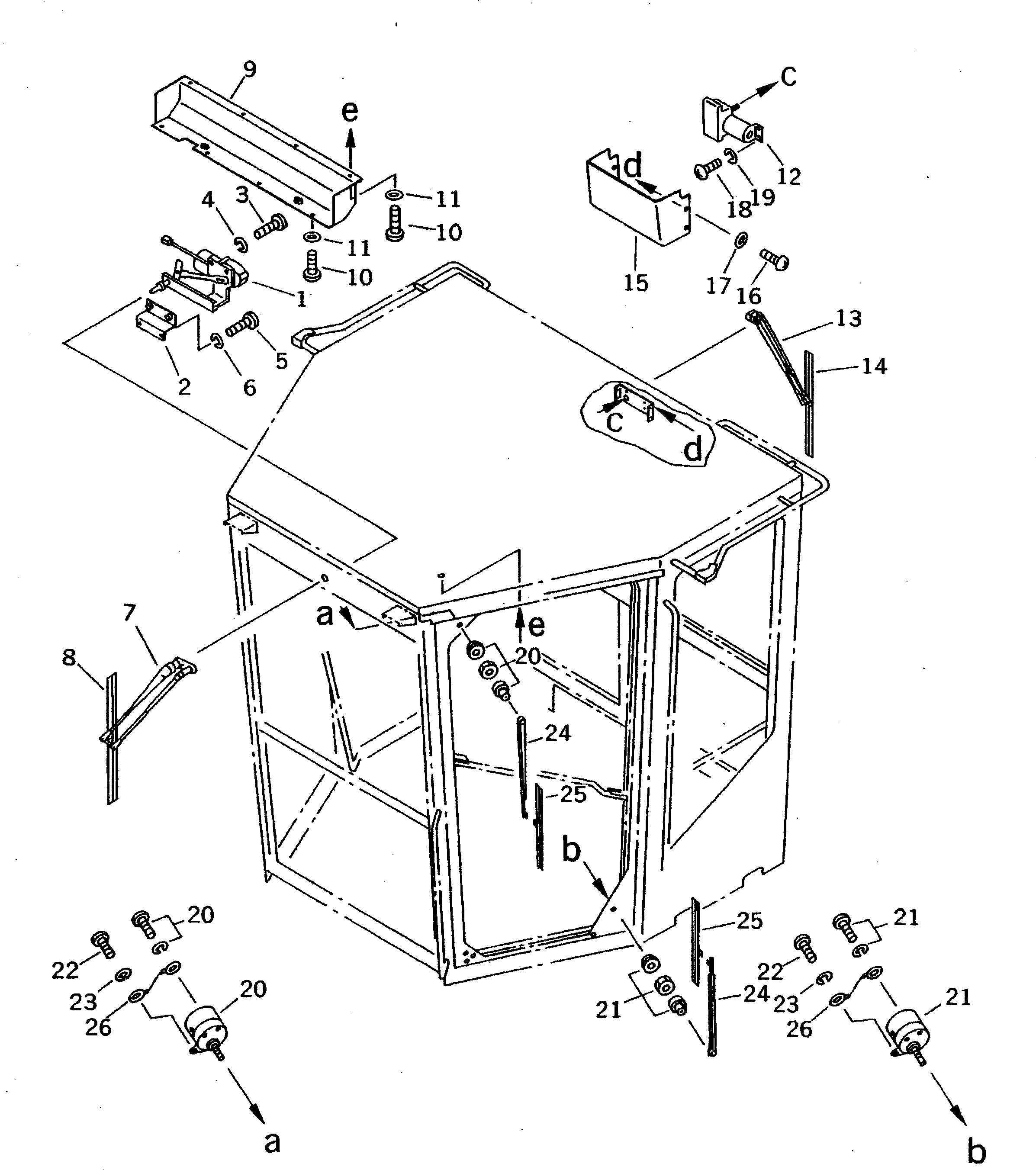

| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5401 TO 5413. | ||||||
| ? | 234-950-1320 | • MOTOR,WIPER | 1 | SN: 11001-@ |
|||
| ? | 23F-950-1150 | • BRACKET | 1 | SN: 11001-@ |
|||
| ? | 01220-40616 | • SCREW | 2 | SN: 11001-@ |
|||
| ? | 01602-20619 | • WASHER,SPRING | 2 | SN: 11001-@ |
|||
| ? | 01220-40620 | • SCREW | 3 | SN: 11001-@ |
|||
| ? | 01602-20619 | • WASHER,SPRING | 3 | SN: 11001-@ |
|||
| ? | 234-950-1330 | • ARM,WIPER | 1 | SN: 11001-@ |
|||
| ? | 234-950-1340 | • BLADE,WIPER | 1 | SN: 11001-@ |
|||
| ? | 23F-950-1160 | • COVER | 1 | SN: 11001-@ |
|||
| ? | 01220-40616 | • SCREW | 8 | SN: 11001-@ |
|||
| ? | 01642-20608 | • WASHER | 8 | SN: 11001-@ |
|||
| ? | 363-911-1240 | • MOTOR ASS'Y,WIPER | 1 | SN: 11001-@ |
|||
| ? | 20S-06-13470 | • ARM,WIPER | 1 | SN: 11001-@ |
|||
| ? | 234-950-1350 | • BLADE,WIPER | 1 | SN: 11001-@ |
|||
| ? | 23F-950-1170 | • COVER | 1 | SN: 11001-@ |
|||
| ? | 01370-00416 | • SCREW | 4 | SN: 11001-@ |
|||
| ? | 01641-20405 | • WASHER | 4 | SN: 11001-@ |
|||
| ? | 01220-40516 | • SCREW | 2 | SN: 11001-@ |
|||
| ? | 01601-20513 | • WASHER,SPRING | 2 | SN: 11001-@ |
|||
| ? | 23F-950-1760 | • MOTOR,WIPER | 2 | SN: 11001-12000 |
|||
| ? | 23F-950-1620 | • MOTOR,WIPER | 2 | SN: 11001-12000 |
|||
| ? | 01220-40520 | • SCREW | 8 | SN: 11001-@ |
|||
| ? | 01601-20513 | • WASHER,SPRING | 8 | SN: 11001-@ |
|||
| ? | 232-950-5420 | • ARM,WIPER | 4 | SN: 11001-12000 |
|||
| ? | 232-950-5430 | • BLADE,WIPER | 4 | SN: 11001-12000 |
|||
| ? | 23F-950-1380 | • HARNESS | 4 | SN: 11001-@ |
