| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

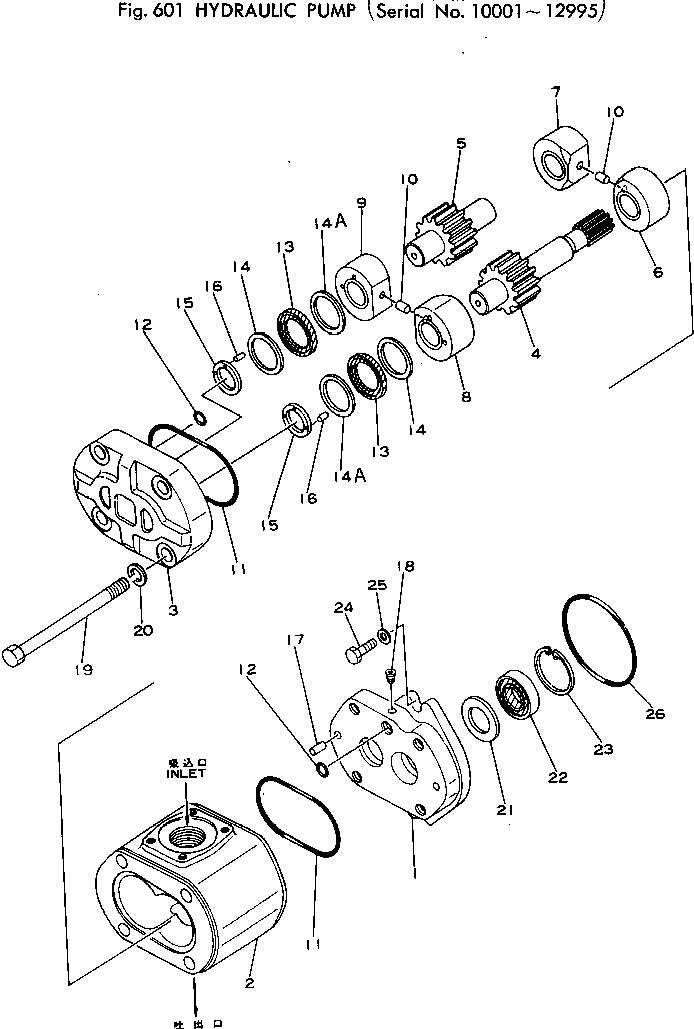

| ? | 704-11-31200 | PUMP ASS'Y | 1 | SN: 10001-12995 |
|||
| ? | (★704-17-02050) | • BRACKET | 1 | SN: 10001-12995 |
|||
| ? | (★704-17-31050) | • CASE,GEAR | 1 | SN: 10001-12995 |
|||
| ? | (★704-17-02110) | • COVER | 1 | SN: 10001-12995 |
|||
| ? | (★704-17-31450) | • GEAR,DRIVE | 1 | SN: 10001-12995 |
|||
| ? | (★704-17-31510) | • GEAR,DRIVEN | 1 | SN: 10001-12995 |
|||
| ? | (★704-17-02610) | • BUSHING | 1 | SN: 10001-12995 |
|||
| ? | (★704-17-02620) | • BUSHING | 1 | SN: 10001-12995 |
|||
| ? | (★704-17-02710) | • BUSHING | 1 | SN: 10001-12995 |
|||
| ? | (★704-17-02720) | • BUSHING | 1 | SN: 10001-12995 |
|||
| ? | (★07423-66190) | • PIN | 2 | SN: 10001-12995 |
|||
| ? | (★07000-13080) | • O-RING | 2 | SN: 10001-12995 |
|||
| ? | (★07000-12012) | • O-RING | 2 | SN: 10001-12995 |
|||
| ? | (★704-17-02472) | • U-RING | 2 | SN: ..-12995 |
|||
| ? | ▩704-17-02471 | • U-RING | 2 | SN: .-.. |
|||
| ? | (704-17-02472(2){704-17-02442(2) ?} | ||||||
| ? | 704-17-02451(2)) | ||||||
| ? | ▩704-17-02470 | • U-RING | 2 | SN: 10001-. |
|||
| ? | (704-17-02411(2){704-17-02442(2) ?} | ||||||
| ? | 704-17-02451(2){704-17-02472(2))} | ||||||
| ? | (★704-17-02442) | • RING,BACK-UP | 2 | SN: ..-12995 |
|||
| ? | ▩704-17-02441 | • RING,BACK-UP | 2 | SN: .-.. |
|||
| ? | (704-17-02472(2){704-17-02442(2) ?} | ||||||
| ? | 704-17-02451(2)) | ||||||
| ? | ▩704-17-02440 | • RING,BACK-UP | 2 | SN: 10001-. |
|||
| ? | (704-17-02411(2){704-17-02442(2) ?} | ||||||
| ? | 704-17-02451(2){704-17-02472(2))} | ||||||
| ? | (★704-17-02440) | • RING,BACK-UP | 2 | SN: ..-12995 |
|||
| ? | (704-17-02411(2){704-17-02442(2) ?} | ||||||
| ? | 704-17-02451(2){704-17-02472(2))} | ||||||
| ? | ▩704-17-02450 | • RING,BACK-UP | 2 | SN: .-.. |
|||
| ? | (704-17-02472(2){704-17-02442(2) ?} | ||||||
| ? | 704-17-02451(2)) | ||||||
| ? | ▩704-17-02440 | • RING,BACK-UP | 2 | SN: 10001-. |
|||
| ? | (★704-17-02411) | • PLATE,SEAL | 2 | SN: .-12995 |
|||
| ? | ▩704-17-02410 | • PLATE,SEAL | 2 | SN: 10001-.. |
|||
| ? | (★04025-00312) | • PIN,ROLL | 4 | SN: 10001-12995 |
|||
| ? | (★04020-01024) | • PIN | 2 | SN: 10001-12995 |
|||
| ? | 07043-00108 | • PLUG | 1 | SN: 10001-... |
|||
| ? | (★01011-51040) | • BOLT | 8 | SN: 10001-12995 |
|||
| ? | (★01602-21030) | • WASHER | 8 | SN: 10001-12995 |
|||
| ? | 704-17-02870 | • PLATE | 1 | SN: 10001-12995 |
|||
| ? | 07426-11163 | • SEAL,OIL | 1 | SN: 10001-12995 |
|||
| ? | 04065-04218 | • RING | 1 | SN: 10001-12995 |
|||
| ? | 382-024862-1 | BOLT | 2 | SN: 10001-@ |
|||
| ? | 382-025555-1 | WASHER | 2 | SN: 10001-@ |
|||
| ? | 382-343700-1 | O-RING | 1 | SN: 10001-@ |
